GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity

GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity
GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity
Basic Information
Place of Origin: China
Brand Name: GFUVE
Certification: CE UL
Model Number: FQ-RCT02
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Standard export wooden box
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000 pieces per month
Get Best Price Contact Now
Current Range: 10A~6000A Frequency: 45Hz~600Hz
Current Probe: Flexible Rogowski Type Position Sensitivity: ±0.2%
Ambient Operating Temperature: -20~+70°C Standards Safety: IEC 61010-1:2001, 600 V CAT III
Highlight:

scope current probe

,

ac current clamp probe

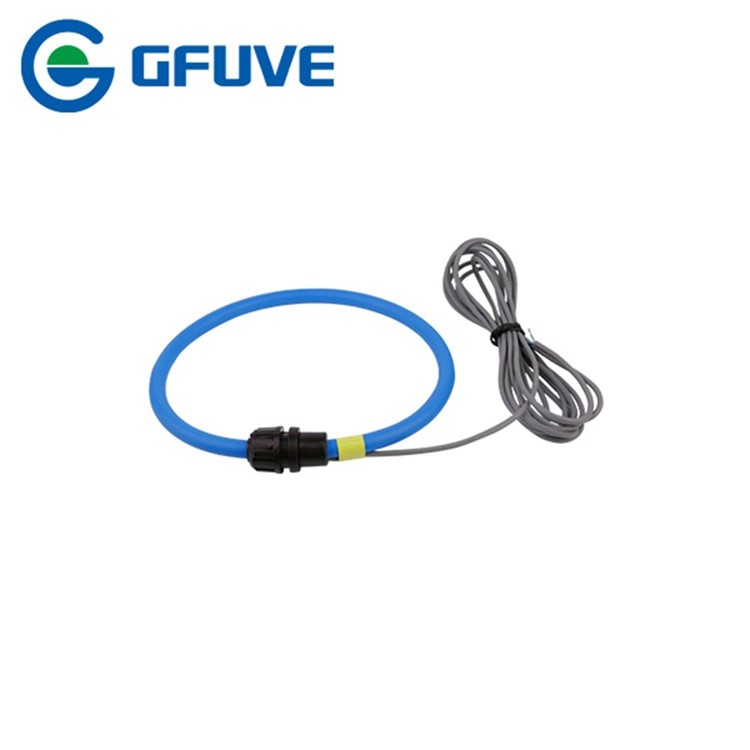

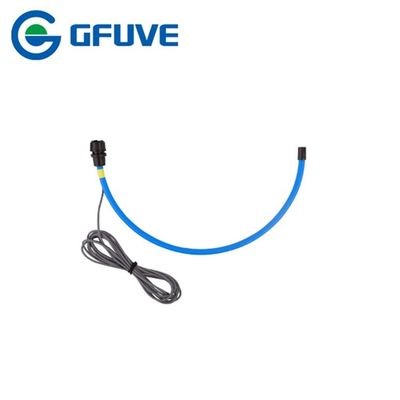

 FQ-RCT02 FLEXIBLE AC ROGOWSKI COIL

GFUVE FQ-RCT02 Rogowski Coil Flexible Current Probe 6000A AC Sensor 0.2% Position Sensitivity 0

Description


The FQ-RCT01 Flexible AC rogowski coil are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.


features



1. Flexible and lightweights
2. Easy & quick installation in tight spaces
3. No danger from open-circuited secondary
4. No core saturation or damage if overloaded
5. Excellent linearity
6. Multi-size are available

applications

1. Power quality monitoring
2. Power meters
3. Smart logger
4. Energy sub-meters
5. Distributed measurement systems

general data

1. Ambient operating temperature: -20°C ~ +70°C
2. Ambient storage temperature: -25°C ~ +75°C
3. Standards Safety:IEC 61010-1:2001, 600 V CAT III
Electrical parameters

Model

 FQ-RCT02-120 FQ-RCT02-190 FQ-RCT02-305 FQ-RCTA02-120 FQ-RCTA02-190 FQ-RCTA02-305
Current range 10A~30kA 10A~6000A
Frequency 25Hz~20kHz 45Hz~600Hz
Output voltage Rated current 1000A 2000A 3000A 1000A,1500A, 2000A,3000A 2000A,3000A, 5000A,6000A 3000A,4000A, 5000A,6000A
50Hz 100mV AC 200mV AC 300mV AC
333mV
1mV/A@1000-3000A(0.5mV/A@4000-6000A)
Max output / 3.0V AC max
Accuracy <1% @25°C (45-65Hz) <1% @25°C (45-65Hz)
Phase error <60’ @25°C (45-65Hz) <60’ @25°C (45-65Hz)
Output sensitivity ±2% Max (No Calibration)
±0.5% @25°C (With Calibration)		 1%
Linearity error ±0.2% (10%-100%I1n) ±0.2%
Position sensitivity ±2% ±2%
External influence ±2% Max ±1.5% Max
Power supply / 10-30VDC,30mA Max.
