100 A Measurement Electrical Flexible Ct Clamps For Bnc Connector Red Color

Basic Information

Place of Origin:	BEIJING CHINA
Brand Name:	GFUVE
Certification:	CE, ISO9001, UL
Model Number:	XQ20-100A

Minimum Order Quantity:	3 PCS
Price:	100USD/PC
Packaging Details:	Standard export box
Delivery Time:	3-7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 PCS/MONTH

Get Best Price Contact Now

Name:	Current Transformer Clamp	Accuracy:	0.1%, 0.2%
Weight:	400g	Ratio:	1000: 1 Or 2000:1
Secondary Current:	0 - 100mA AC (customized)	Holding Wire Diameter:	20mm
Appication:	Oscilloscope, Calibrator, Tester	Color:	Grey, Red, Blue
Highlight:	inductive current probe , inductive amp clamp

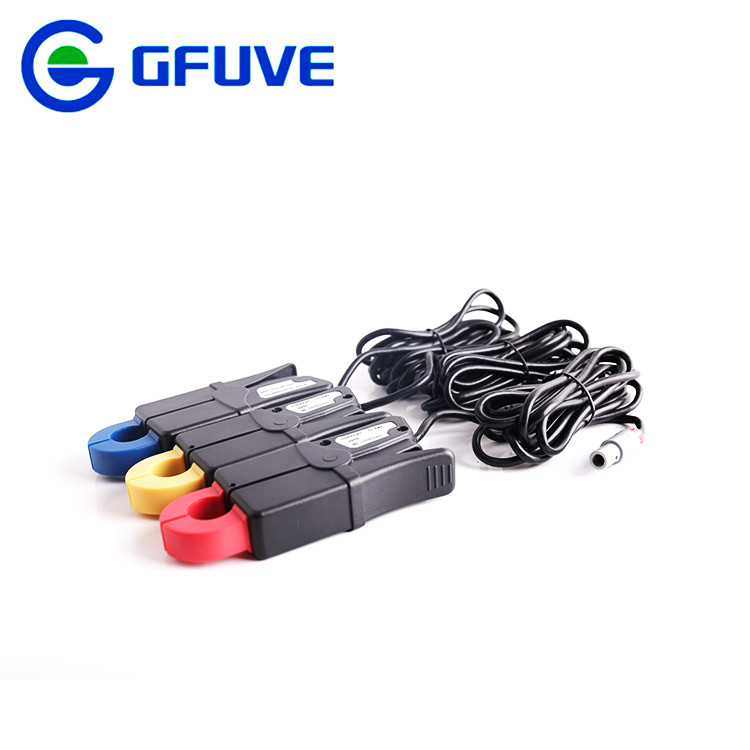

XQ20 100A Measurement Electrical Inductive Current Transformer Clamp for BNC Connector

The model XQ20 Current Transformer Clamp is suitable for 100A cable online measurement, the user friendly shape make It easily clamp onto cables or bus bars.

XQ20 current transformer clamp is high precision 0.1%, it can measure current harmonics. clamp cable is easy, quickly. many intrusments select this model XQ20.

Applications

Power monitor meter

Energy meter calibrator

Resistance tester

Phase Angle meter

Power quality Analyzer

Features

1. Suitable for 100A cable online measurement.

2. Holding wire diameter: φ20mm

3. Dimension: 52.5mm×137.5mm×28mm

4. Load capacity: ≤4Ω

5. Installation: clamp type

6. Output mode: lead output

PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%
Primary current	0 - 100A AC
Secondary current	0 - 100mA AC
Max. Cont. Input current	120A
Load capacity	≤4Ω
Over voltage category	CAT III 600V
Output signal (AC current)	From 0 to 200mA AC at nominal input current
Electrical parameters - continued
Output signal (AC voltage)	From 0 to 2V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	52.5 x 137.5 x 28
Weight (g)	400
Holding wire diameter (mm)	φ20
Max. jaw opening (mm)	20
Jaw color	Red, yellow, blue, green, black
Material	PC+ABS+Polycarbonate, UL94 V0
