0.02% 240A 600V Electrical Test Equipment Portable Three Phase Reference Standard



GFUVE is committed to providing our customers with leading innovative and technologically superior products, while maintaining metrology capability in power and energy measurement that is surpassed by none. Our engineers drew on the expertise and knowledge we acquired for our industry-leading legacy RM (Metronic) and RD (Dytronic) reference standards to develop the RX (Xytronic), the ultimate in power and energy measurement technology perfection.
Extended Measurement Range The GF333V2 is designed to operate over a broad Current, Voltage and Power Factor measurement range. A dynamic range of 30 VAC - 600 VAC and 5 mA – 200 A provides the versatility to operate in a multitude of power and energy applications. The AC direct current input provides fixed impedance (0.0005 Ohm) over the entire AC current input range. This capability is key to applications that require a fixed input burden and accurate yet fast measurement speed. The GF333V2 provides three-phase fully auto-ranging, simultaneous four-quadrant precision measurements, computes, records and presents instantaneous metrics. The GF333V2 allows the user to do more with a single instrument.

Internationalization The GF333V2 is designed for a global market where user languages may vary. The GF333V2 accommodates different languages as well as selectable VAR calculations and a broad range of energy measurement metrics including fundamental only Watts, VA and VAR. RX VAR calculation modes include Voltage 90 degree shifted, Integral VAR, Integral VAR 50 Hz, Integral VAR 60 Hz, RMS VAR, and Fundamental VAR.

General

Dimensions Weight

4.5”(114mm), 15.5” (394 mm), 7.5” (190 mm) 24 lbs (10 kg), Shipping weight 24 lbs (30kg)



Environment

Ambient Temperature Range Humidity Max. height above sea level Vibration Supply Voltage Power Consumption Typical AC/DC Power Supply Warm-up

Storage... -40 ºC to +80 ºC Operating... -20 ºC to +65 ºC Specified Accuracy... -20 ºC to +65 ºC 0% to 95% Non-condensing 2,000m All Non-destructive 24 Vdc + 10% ~25 VA max. AC Input 100 to 240V, 50 to 50/60Hz <60 Seconds



Safety

IP Class International Compliance CE directives: Overvoltage Category Voltage Measurement Overvoltage Category Current Measurement Hi-Pot & Surge Fused Potential Input

IP30 (According to DIN EN 60529) Low Voltage 2014/35/EU (IEC 61010-1, -2-030) Electromagnetic Compatibility 2014/30/EU (IEC 61326-1, -2-1) ROHS 2 2014/30/EU CAT IV 600V CAT IV 600V IEC 61010-1 500 mA Ultrafast - SIBA 70.172.40.0.500 or Equivalent



Interface

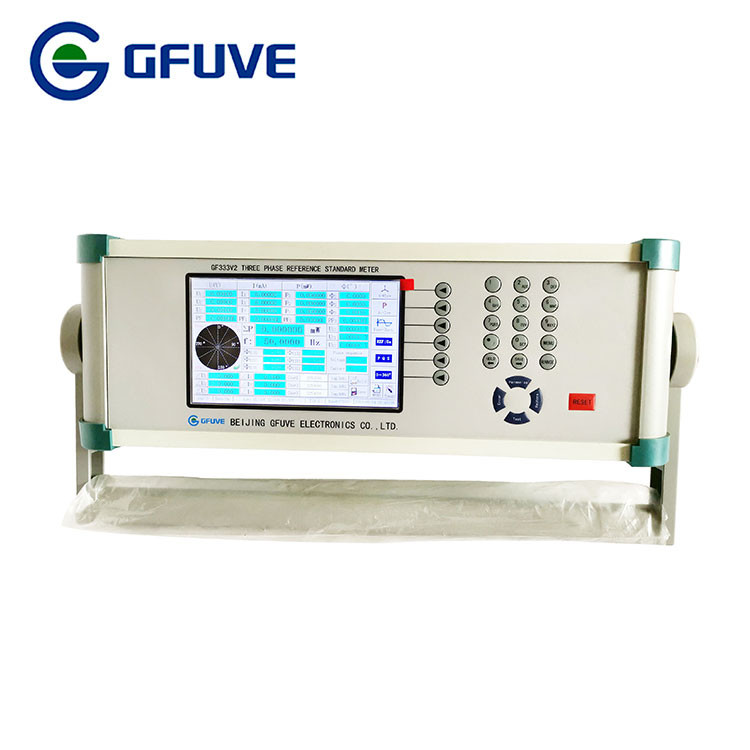

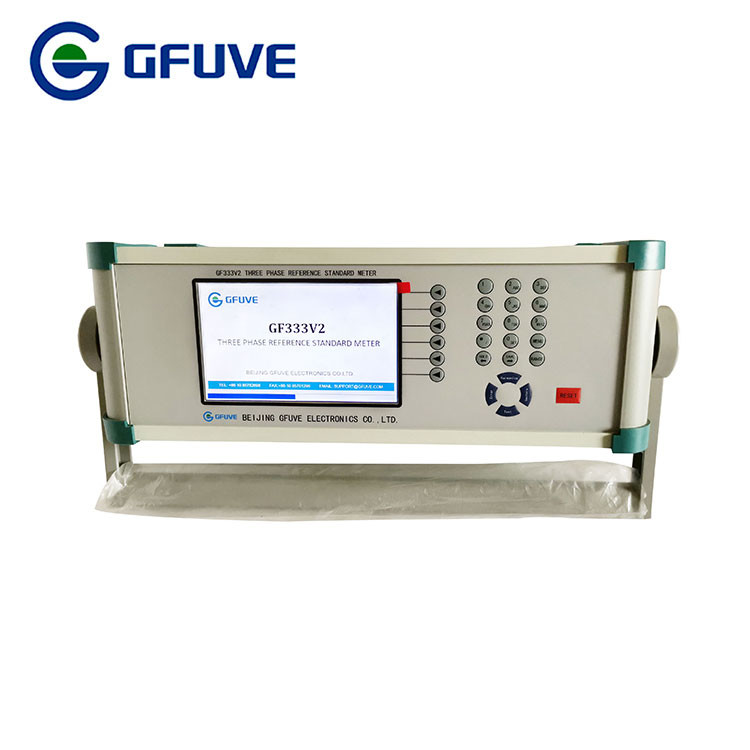

Touch Screen Color Display: I/O Ports: Communication Interface Port / Protocol Memory External Monitor Port External Touch Screen Port Optical Sensor Port Output Reference Clock

Integrated 4.3”, Backlit LCD Color Screen (Optional External Touch Screen Display Available) Serial RS-232 / Supports Radian Legacy RD Commands Ethernet / Standard Commands for Programmable Instrumentation (SCPI) Protocol Internal (Max. Storage 2,000 Mbytes) External SD (Max. Storage 32 Gbytes) External USB Front Panel Video (Optional Monitors Available) USB 2.0 4 Pin Lemo (Optional Optical Accessories Available) 10/20 MHz selectable, 5V TTL compatible

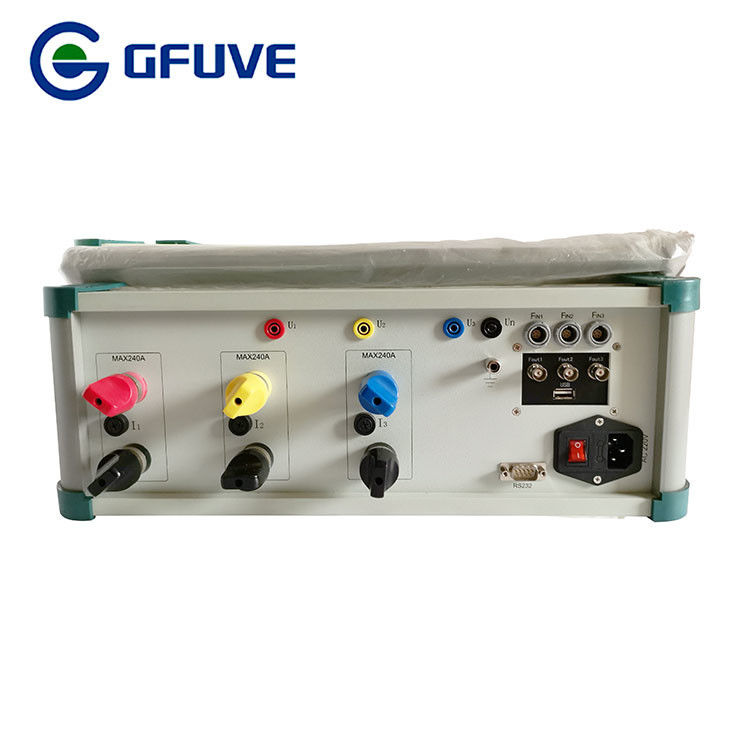

CT Ports Bidirectional Programmable Pulse/ Frequency Comparator BNC Ports Outputs 1, 2, 3 & 4: (Default = 0.00001 Wh/Pulse) Direct AC Current (I) Inputs Indirect Current (External CT Input) Potential (U) fused Inputs Cable Accessories

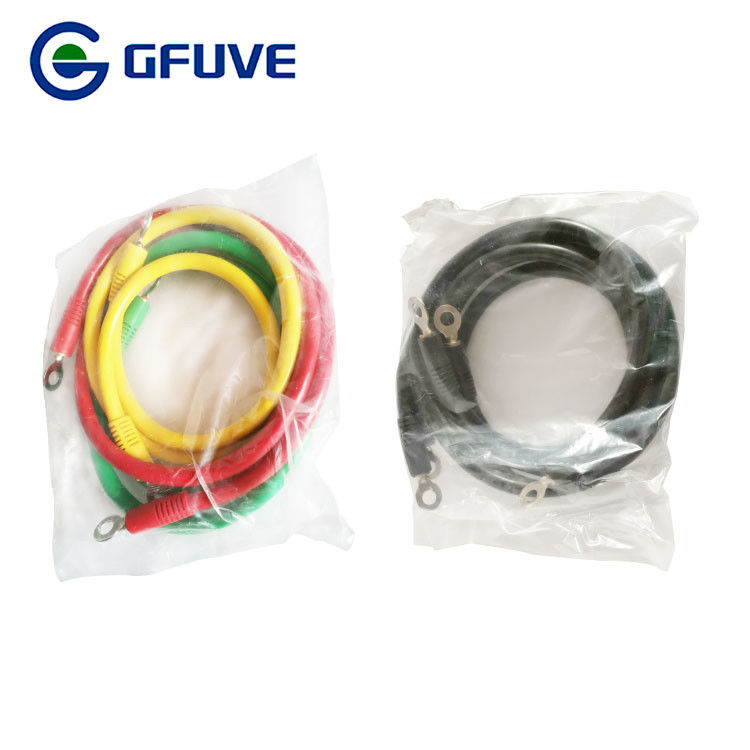

See Radian Web Site for available compensated and uncompensated current clamps Input Termination 128 Ohm/1 KOhm Pull Up to 5 V, Max External Pullup +27V Input Gate rate 200 nS Pulse Width Minimum, Maximum 20 Hz Repetition Rate Short Circuit Tolerant. Programmable Kh Value Nominal 5 V, Open Collector Compatible, Max. 27V Max. 2.1 MHz (200nS Pulse Width Minimum) Selectable Watt Hours, VAR Hours, VA Hours Range: 1 mA to 200 Amp <500µOhm Input Impedance Termination: 6 mm Female (<120 Amp) or Male CONLOC (< 200 Amp), Optional Current Cable Termination and Adapters available Max. input: 1 Amp Termination: 7 Pin Female Redel Connector Range: 30 V to 600 V (60Hz), 30 V to 525 V (50Hz) 1M Ohm Input Impedance Termination: 4 mm Female Protection: 500mA Fused Legacy cable locking adapters (supplied) AC to 24 DCV Converter (supplied) 3 pair 1m Potential Cables (supplied) Unterminated 120A or 200A Locking Current Cables (Optional)
