100A Flexible Ct Clamps 0.1% Accuracy 40Hz - 2000Hz 13mm Clamping Size



100A Inductive Current Clamp Price Class 0.2 13mm Clamping Size

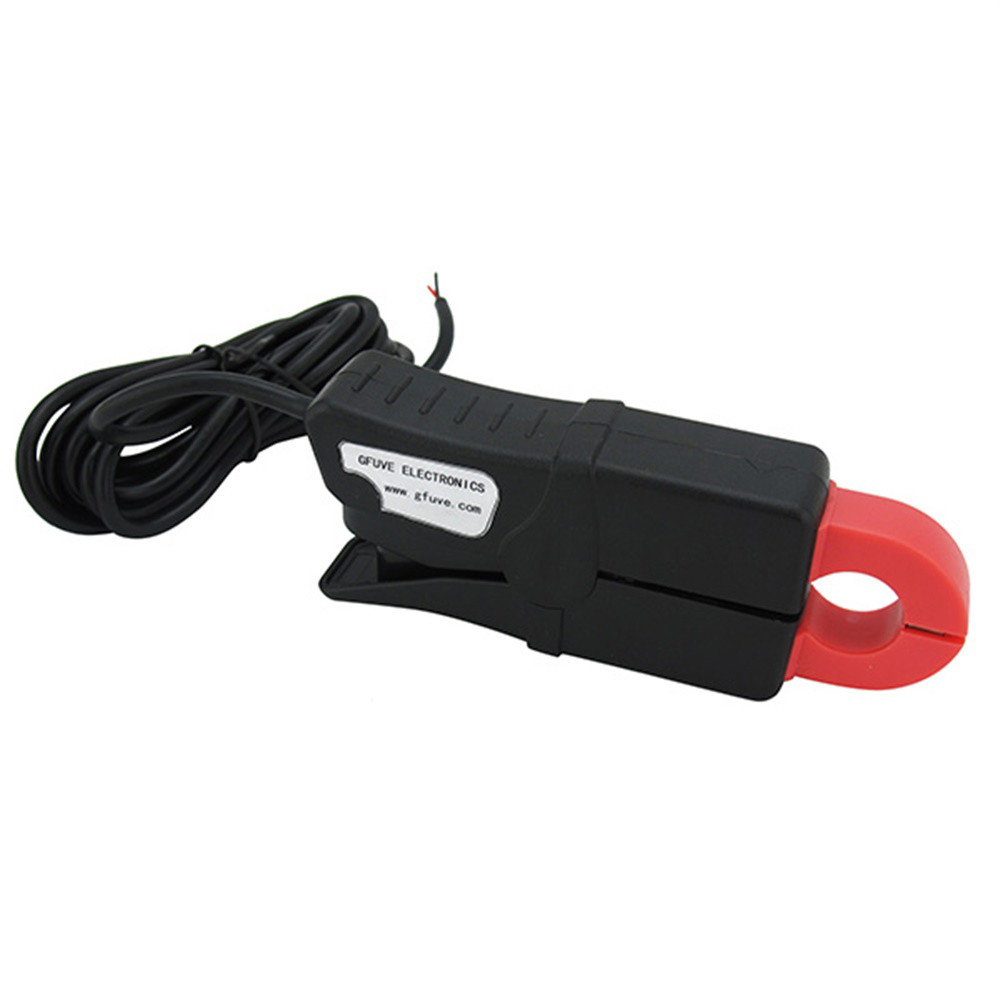

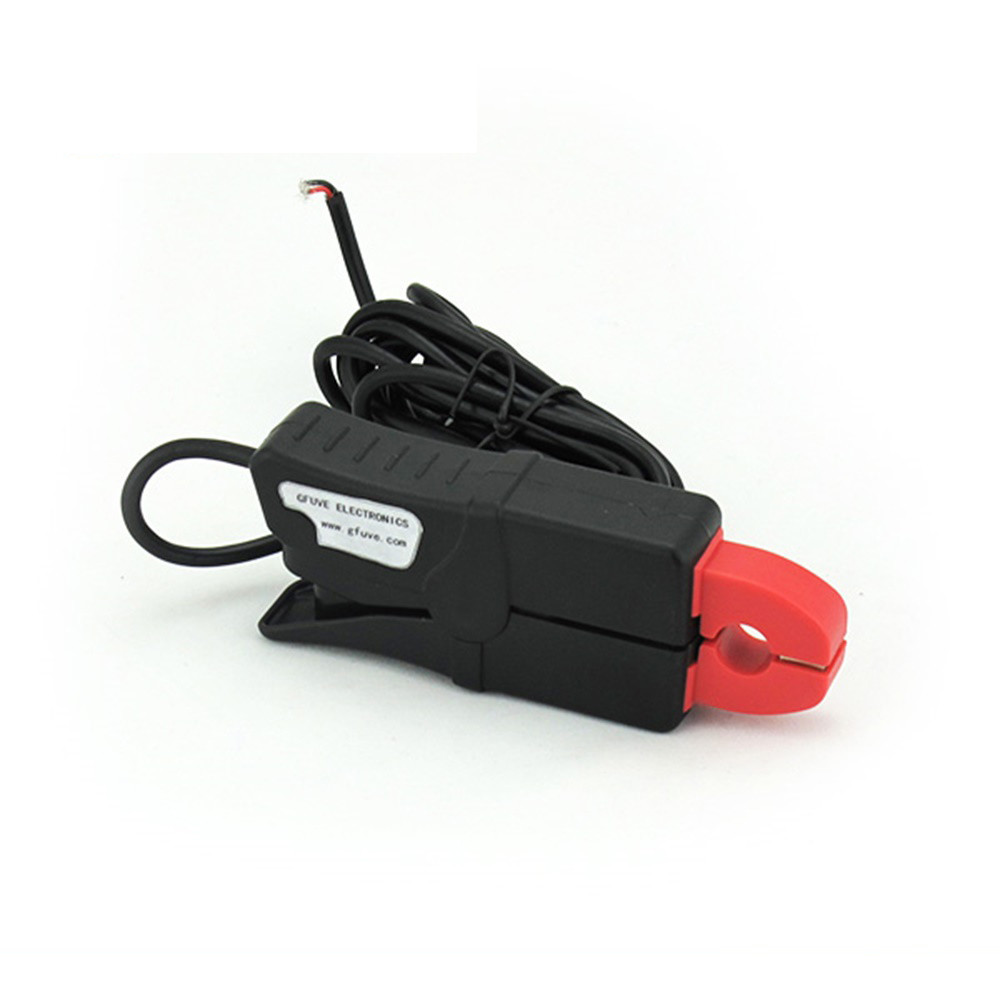

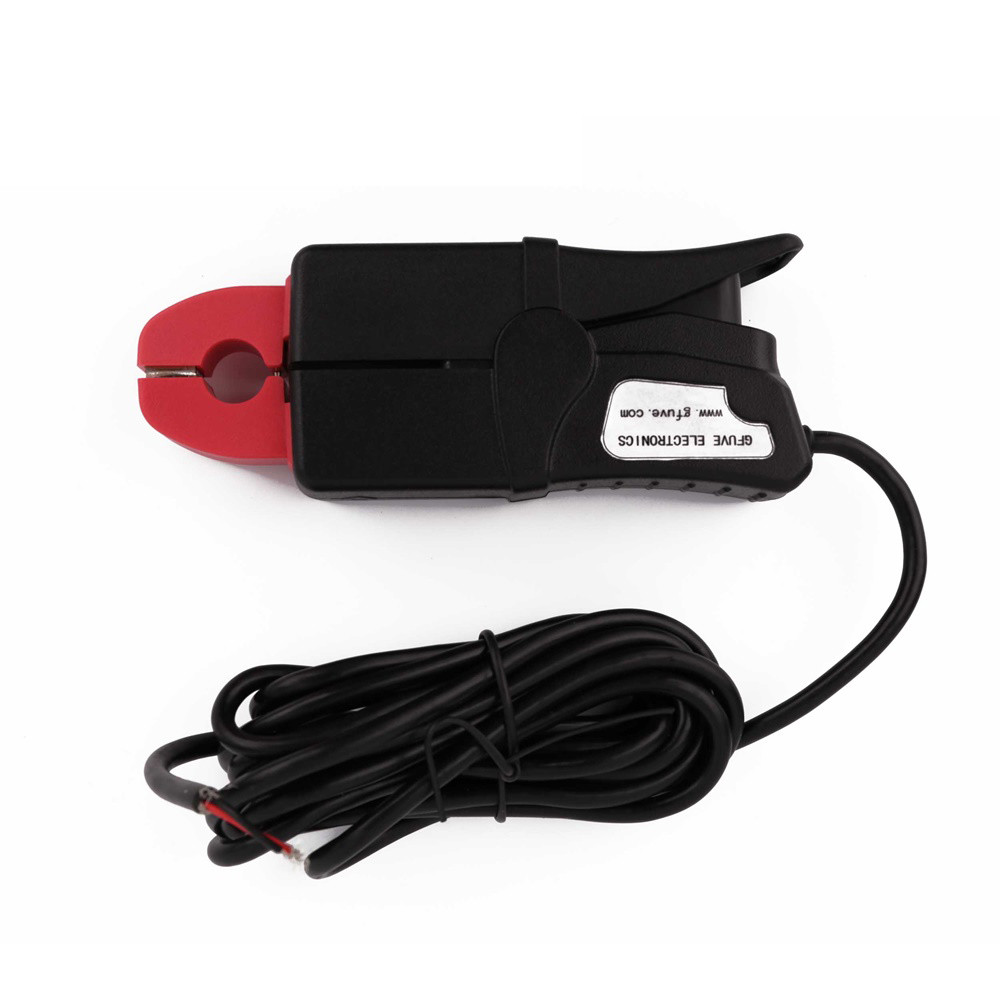

Model XQ13-1 Inductive Current Clamp is suitable for 10A-100A cable online measurement, it belongs to high performance testing field.

Current Clamp XQ13 clamps around the current carrying conductor to perform noncontact current measurements while without interrupting the circuit under test.







Features



Suitable for 10A-100A cable online measurement.

Holding wire diameter: φ13mm

Dimension: 52.5mm×136.5mm×28mm

Load capacity: ≤4Ω

Installation: clamp type

Output mode: lead output







Applications



Electric energy meter calibrator (on site)

Double clamp type ground resistance tester

Double clamp type phase volt-ampere meter

Digital multi-meter

Multi-function energy meter

Power quality analyzer

Matched instruments

Calibration instrument on site





Parameter



Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%
Primary current	0 - 100A AC
Secondary current	0 - 100mA AC (customized)
Max. Cont. Input current	120A
Over voltage category	CAT III 600V
Output signal (AC current)	From 0 to 100mA AC at nominal input current
Output signal (AC voltage)	From 0 to 2V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	48 x 179 x 27
Weight (g)	280
Holding wire diameter (mm)	φ13
Max. jaw opening (mm)	13
Jaw color	Red, yellow, blue, green, black
Material	PC+ABS+Polycarbonate, UL94 V0



FAQ, following questions will help you to select the matched probe for your applications.



1. Please determine if you are measuring AC or DC?

GFUVE XQ13-1 here is for AC measurement. If DC, will have other models to suggest.



2. What is the maximum current you will measure?

XQ13-1 max current is 120A



3. What size conductor will you clamp onto? This parameter determines the probe jaw size needed.

XQ13-1 can clamp conductor with diameter within 13mm



4. What type of probe output do you need or can you work with (mA, mV, A, AC, etc.)?

XQ13-1 can customize output with mA, mV



5. What is the working voltage of the conductor to be measured?

GFUVE probes should be used below 600 volts



6. What type of termination do you need: jacks, leads or BNC?

XQ13-1 standard has 2.5meter leads. We can offer jacks or BNC… as options.



7. If you cannot find information you need or would like assistance, contact us today. We have designed many more probes than those shown in this catalog, and we manufacture in Beijing, China.
