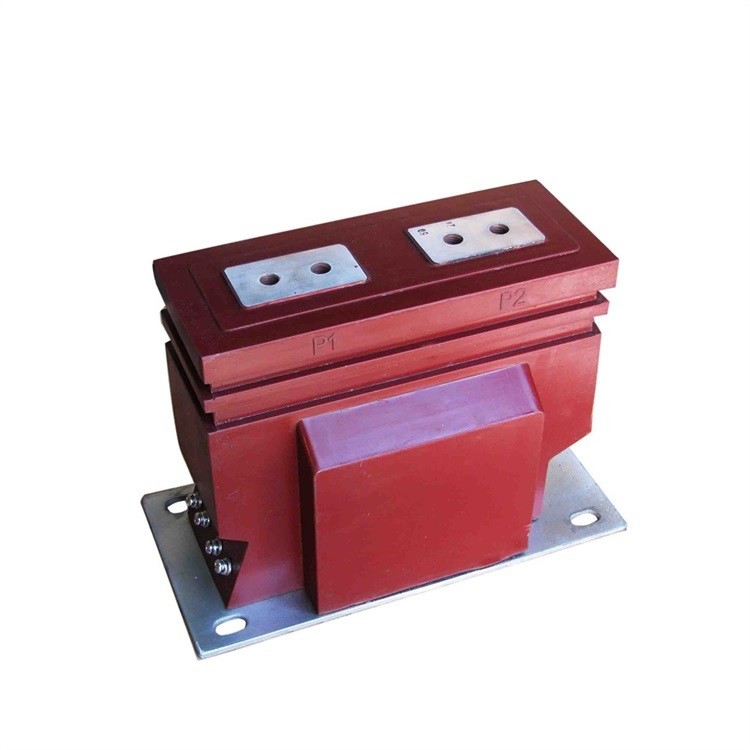

1500A Busbar Instrument Current Transformer 50Hz / 60Hz For Power Meter

1500A Busbar Instrument Current Transformer 50Hz / 60Hz For Power Meter
1500A Busbar Instrument Current Transformer 50Hz / 60Hz For Power Meter 1500A Busbar Instrument Current Transformer 50Hz / 60Hz For Power Meter 1500A Busbar Instrument Current Transformer 50Hz / 60Hz For Power Meter
Basic Information
Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: CE , ISO9001
Model Number: GFLZZ0954-10Q
Minimum Order Quantity: 3 PCS
Price: Negotiable
Packaging Details: Standard Export Carton Box
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 PCs / Month
Get Best Price Contact Now
Name: MV Current Instrument Transformer Rated Primary Current: 5 - 1500A
Class: 0.2s , 0.5s Standards: 50Hz Or 60Hz
Color: Red Application: Current Measurement
Standard: IEC61869 Insulating Material: Epoxy Resin
Highlight:

current potential transformer

,

electromagnetic potential transformer





GFLZZ0954-10Q 1500A Class 0.2s MV busbar Instrument Current Transformer for power meter






The current transformer of the type GFLZZ0954-10A1 is casting resins and fully enclosed . It is used for metering electric energy and current , relay protection in the electrical system up to rated frequency 50Hz of 60Hz . The current instrument transformers can be executed according to the standards IEC60044-1 , IEC61869-2 and ANSI/IEEE C57.13 .





Design : 30 years life

Class : 0.2s or 0.5s

Standard IEC : 61869-2

Rated current : 5 – 1500 A



Ratied Primary Current(A) Class Combination Accuracy class and Rated output
(VA)		 Short-time thermal current
(kA/S)		 Rated dynamic current
(kA)
0.2(S) 0.5 10P
5-50 0.2(S)/10P
0.5/10P		 10 10 15 400I1n 1000I1n
75 32 100
100-500 45 100
600-1000 63 130
1250-1500 80 160



Overall Dimensions



1500A Busbar Instrument Current Transformer 50Hz / 60Hz For Power Meter 0
