2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer

2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer
2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer
2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer 2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer 2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer 2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer 2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer 2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer 2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer 2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer 2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer 2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer
Basic Information
Place of Origin: China
Brand Name: GFUVE
Certification: ISO9001, CNAS, KEMA, CE, UL
Model Number: TEST-750
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Box
Delivery Time: 3 - 7 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 200 Sets
Get Best Price Contact Now
Max Current: 150A Max Voltage: AC250V Or DC300V
Auxiliary AC Voltage Output Range: 0-250V Ac Resistor Resistance: 0.5Ω-2.5kΩ
Dimensions (W×D×H) (mm): 340×270×260 Weight: 16.8kg
Timer: 0-999.99 Name: Single Phase Secondary Current Injection Protection Relay Test Set
Power Supply: 220V AC 50/60Hz
Highlight:

protective relay test set

,

electrical protection relay testing kit

EST-750 2KVA 100A Single Phase Secondary Current Injection Protection Relay Test Set With Timer



TEST-750 single-phase protection relay test set high performance, portable to test in the field; it adopts aluminum alloy body with PC panel, robust shape; with the ARM chip control, LCD screen display single-phase protective relay test device of voltage and current output stopwatch;a full isolation, adjustable AC and DC voltage, AC direct current; an adjustable DC voltage and an adjustable AC voltage; output circuit with double overload protection, high output capacity, small size, light weight, high reliability. The equipment is suitable for a variety of relay field calibration and performance test.



The TEST-750 testing unit, whose design incorporates benefits gleaned from many years of experience in field relay testing, enjoys a well-earned reputation for reliability and convenience. Compact and powerful, it provides all of the functions needed for secondary testing of almost all types of single-phase protection now available on the market.



Features

  • High power current source for high burden relay test
  • Capable of testing differential relay with independent current sources
  • Capable of testing directional relay with adjustable phase angle
  • In-built Ammeter and Voltmteter
  • 120s output time at 150A
  • Rotating mouse control and quick control buttons
  • Blue blacklight LCD display
  • Many ready test modules for automatic test applications
  • Designed for rugged field us
  • 0 to 100 Amp output current
  • Suitable for testing many different types of relays such as power, voltage and current
  • Easy to operate



Parameters



Electrical parameters
Rated input power
AC 220V±10% 1000VA·50/60Hz or
110V±10% 1000VA·50/60Hz
Turn on/turn off auxiliary contacts
Max current 1A
Max voltage AC250V or DC120V
AC output
Range 0-10A 0-40A 0-100A 0-100A
No-load Voltage(Min) 90V 25V 10V 10V
Full-load Voltage (Min) 80V 22V 8V 　
Full-load Current (Max) 10A 40A 100A 150A
AC/DC voltage output
Range 0-250V(AC) 0-300V(DC)
No-load Voltage(Min) 250V 320V
Full-load Voltage (Min) 240V 250V
Full-load Current (Max) 3A 3A
Auxiliary DC voltage output
Range 5-120V 110-220V
Max Voltage 120V 220V
Max Current 0.5A 0.5A
Auxiliary AC voltage output
Range 0-120V
Max voltage 120V
Max current 0.5A
Stopwatch
Range 0.0000-999999S
Resolution 0.1mS
Accuracy ±5 words
Max input voltage
(With contact and potential input)		 DC 250V
Ammeter
Range Inside 0.000-150.0A
Outside 0.000-6.000A(AC or DC)
Accuracy 0.50%
Voltmeter
Range 0.0-600.0V(AC or DC)
Accuracy 0.50%
Measuring mode AC True RMS
DC Average value
Resistor
Resistance 0.5Ω-2.5kΩ
Mechanical characteristics
Dimensions (W×D×H) (mm) 340×270×260
Weight 16.8kg
Mechanical parameters
Temperature -10°C to 40°C
Relative humidity <80%

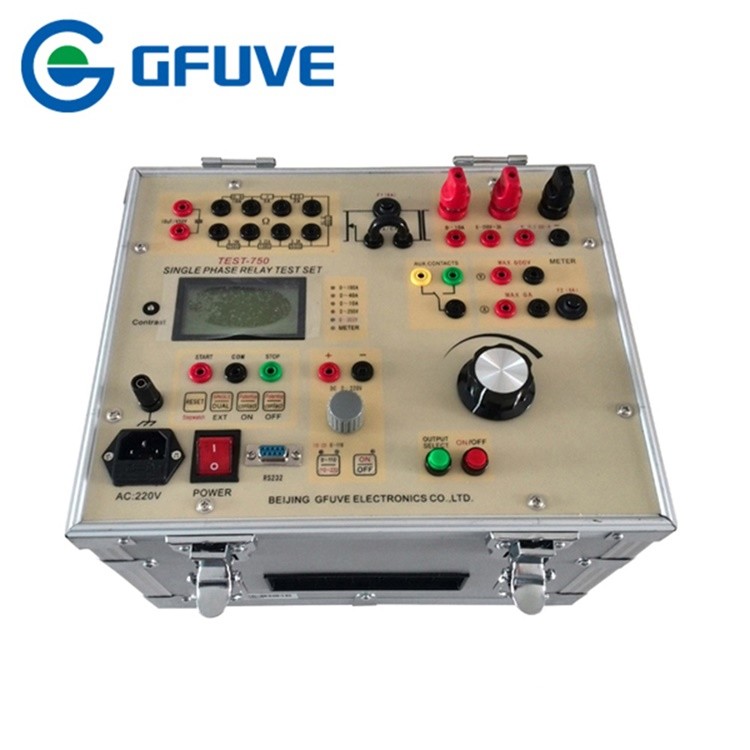

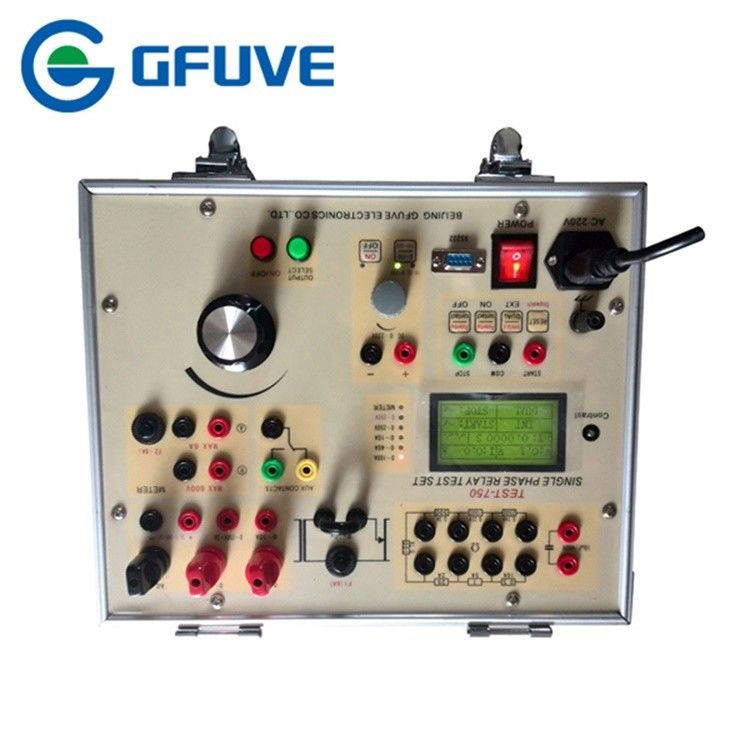

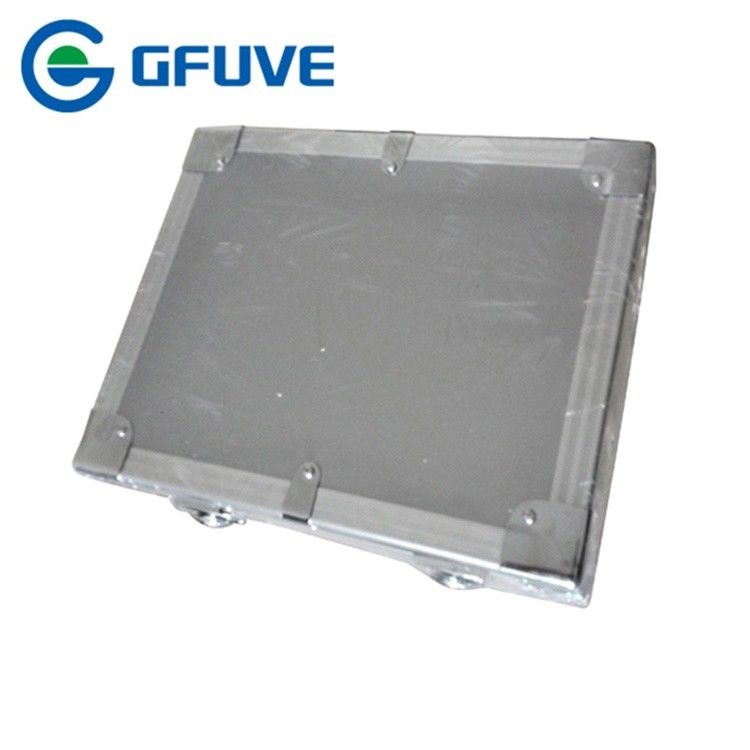

The Product Picture:



2KVA 100A Single Phase Relay Test Set High Power Current Source With Timer 0
