45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port

45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port
45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port 45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port
Basic Information
Place of Origin: China
Brand Name: GFUVE
Model Number: GF311
Minimum Order Quantity: 1set
Packaging Details: Wooden Box
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000Units/Month
Get Best Price Contact Now
Accuracy Class: 0.5% Power Supply: AC 85-265V 50/60Hz Or Li-battery 5000mAh
Communication Port: RS232 Voltage Measurement　: 0-480V
Current Measurement　: 1mA-10A Or 50mA-200A Or 50mA-500A Phase Measurement　: 0°-359.9°
Frequency Measurement　: 45-65Hz Power Factor Measurement　: -1 To 0 To +1
Dimensions (W×D×H) (mm): 245×162×60 Working Temperature: -10°C To 55°C
Highlight:

power quality analyser

,

power harmonics analyzer

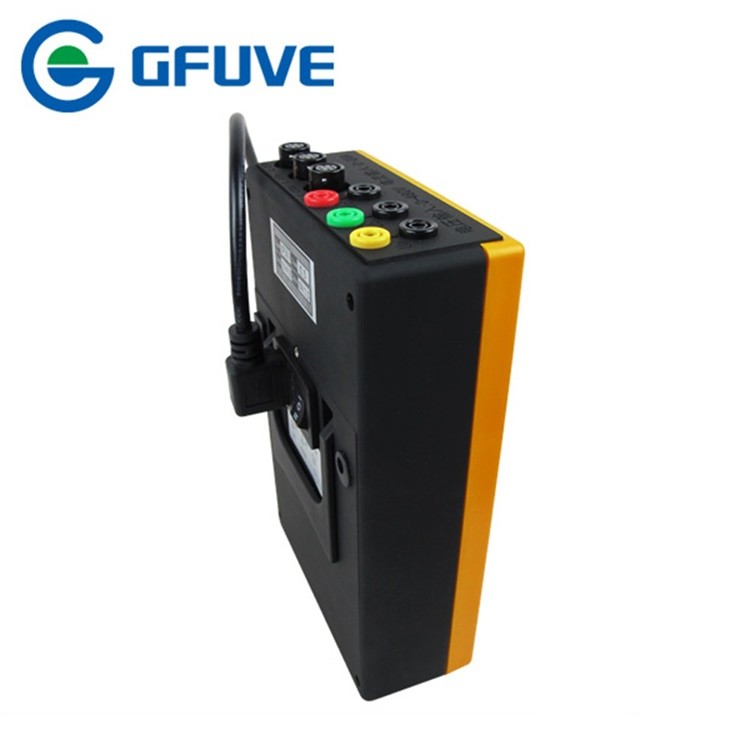

GFUVE GF311 Class 0.5 Basic Three Phase Power Quality Analyzer



FEATURES

  • Simultaneously measuring three-phase voltages, current, power, frequency, power factor, phase, etc.
  • Display vector map for the use of user directly.
  • Horizontal liquid crystal big screen TFT displays all electric parameters;
  • The smallest current it can measure is 1 mA, 2 mA above can display vector diagram;
  • Small volume, light weight and the operation is simple, convenient;
  • DSP digital signal processing chip, wide measuring range, high accuracy, good stability;
  • It can store data; data can be using computer software to upload for management;
  • Range switches automatically, software for be calibrated.


PARAMETERS

Electrical parameters　
Accuracy class 0.5%
Power supply AC 85-265V 50/60Hz or Li-battery 5000mAh
Communication Port RS232
Warming-up time < 5min
Power consumption ≤5VA
Voltage measurement　
U1, U2, U3 Range 0-480V
Resolution 0.001V
Accuracy 0.2%
Current measurement　
I1, I2, I3 Range 1mA-10A or 50mA-200A or 50mA-500A
Resolution 0.5mA
Accuracy 0.5%
Active power measurement　
Active accuracy 0.5%
Reactive power measurement　
Accuracy 1%
Phase measurement　
Range 0°-359.9°
Resolution 0.001°
Accuracy 0.1°
Frequency measurement　
Range 45-65Hz
Resolution 0. 001Hz
Accuracy 0.01Hz
Power factor measurement　
Range -1 to 0 to +1
Resolution 0.0001
Accuracy 0.01
Mechanical parameters　
Dimensions (W×D×H) (mm) 245×162×60
Weight (kg) 1 (mains)
6.5 (appendix and box)
Environmental conditions　
Working temperature -10°C to 55°C
Working humidity 15%-85%RHD
Storage temperature -25°C to 70°C
Storage humidity 5%-95%RHD

Tag:

power quality analyser,

power harmonics analyzer,

portable power quality meter
