800V Digital Multifunction Electric Power Meter RS485 / RJ45 With PC Software





800V RS485 and RJ45 3 Phase Digital Multi-function  Power Meter With PC software

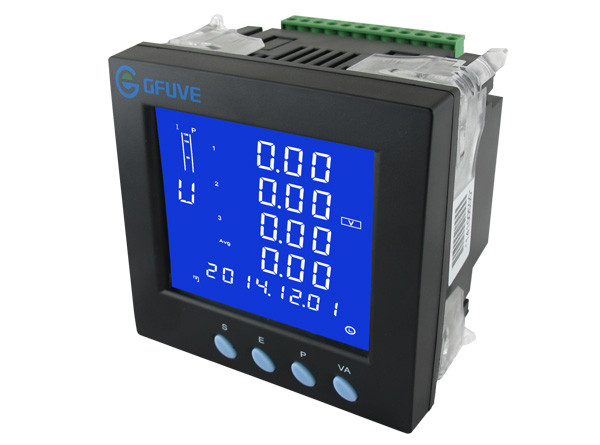

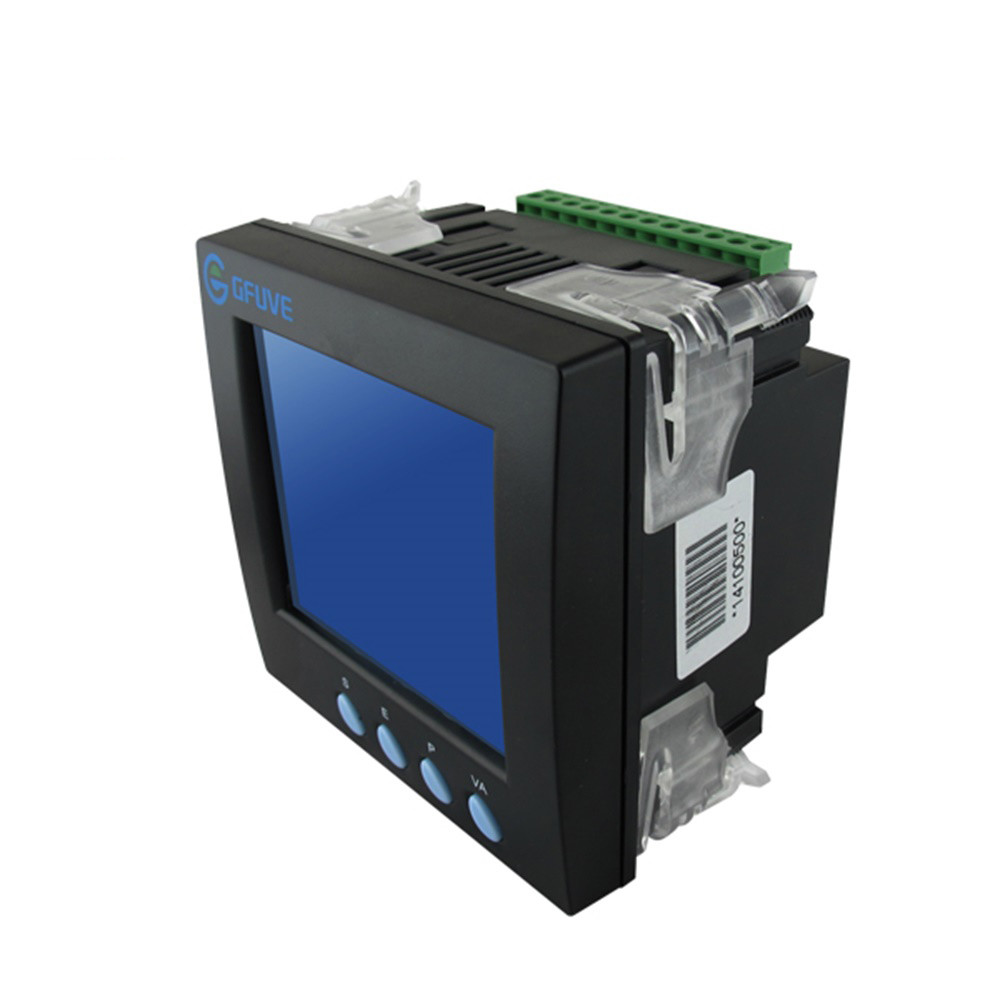

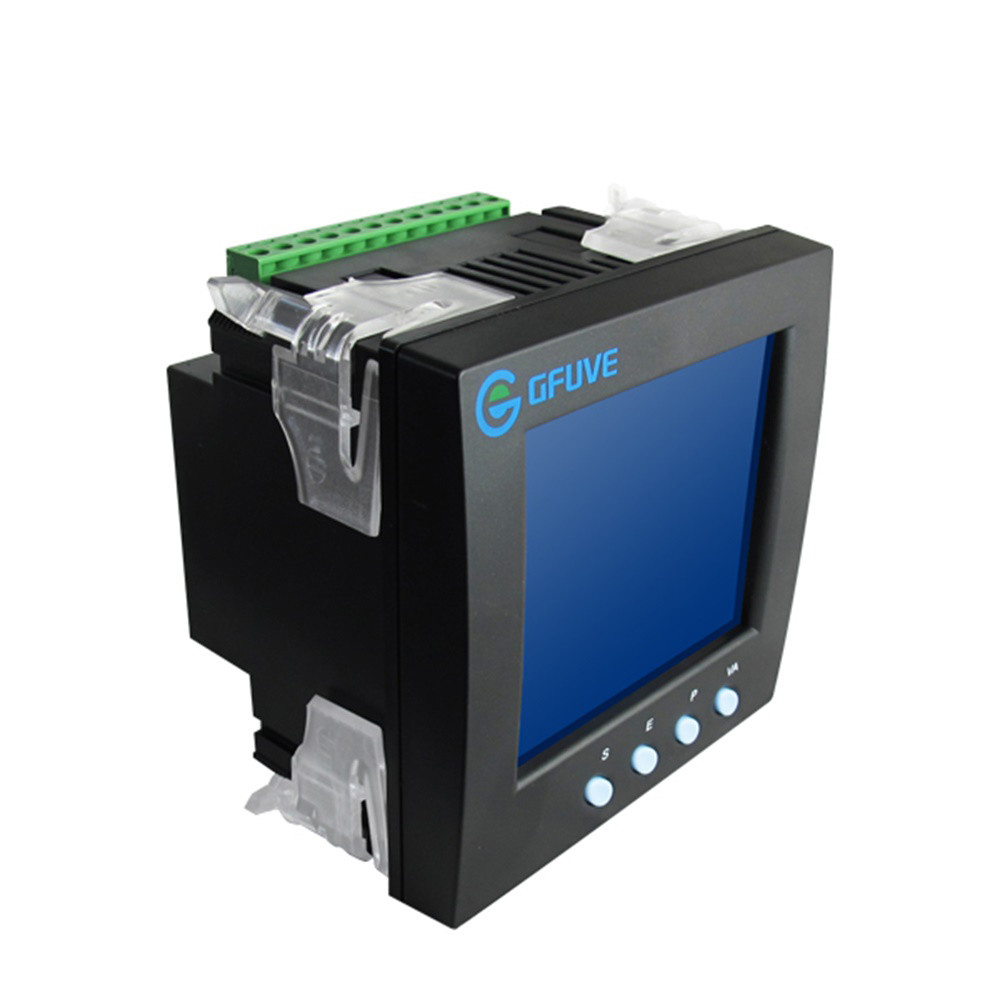

FU2200B three phase Multi-function Internet Power Analyzer is a LCD display power analyzer, metering and displaying all the measured parameters in one circuit and computing four quadrants energy. ThisFU2200B three phase Multi-function Internet Power Analyzer can work in wide temperature range.







Specifications



Parameter		Accuracy	Resolution	Range
Voltage		0.2%	0.01V	0.5~500kV
Current		0.2%	0.01mA	5mA~50000A
Active Power		0.5%	0.2W	-9999MW~+9999MW
Reactive Power		2%	0.2var	-9999Mvar~+9999Mvar
Apparent Power		0.5%	0.2VA	0~9999MVA
Active Power Demand		0.5%	0.2W	-9999MW~+9999MW
Reactive Power Demand		2%	0.2var	-9999Mvar~+9999Mvar
Apparent Power Demand		0.5%	0.2VA	0~9999MVA
Power Factor		0.005	0.0001	-1.0000~0~1.0000
Frequency		0.01Hz	0.01Hz	45.000~65.000Hz
Energy	Primary	0.5%	0.1kWh	0~99999999.9kWh
	Secondary		0.001kWh	0~999999.999kWh
Reactive Energy	Primary	2%	0.1kvarh	0~99999999.9kvarh
	Secondary		0.001kvarh	0~999999.999kvarh
Apparent Energy	Primary	0.5%	0.1VAh	0~99999999.9kVAh
	Secondary		0.001VAh	0~999999.999kVAh
Phase Angle		0.1°	0.01°	0~359.99°
Unbalance Factor		2%	0.01%	0~300.00%
PT			1	1~10000
CT			1	1~10000
Addr			1	1~254







Functions

1.1. Real Time Measurement

U1,U2,U3,Ulnavg

U12,U23,U31,Ullavg

I1,I2,I3,Iavg,In

P1,P2,P3,Psum

Q1,Q2,Q3,Qsum

S1,S2,S3,Ssum

PF1,PF2,PF3,PFsum

LCR

Frequency

AngleU1,AngleU2,AngleU,AngleI1,AngleI2,AngleI3

1.2. Energy

EPimp,EPexp,EPtotal,EPnet

EQimp,EQexp,EQtotal,EQnet

ESimp,ESexp,EStotal,ESnet

1.3. Demands

DemandP,DemandQ,DemandS

1.4. TOU

4 Tariffs

6 Seasons

6 Schedules

Day schedule can be planned to 14 schedules

1.5. Maximum Value & Minimum Value

max+stamp,min+stamp

U1,U2,U3

U12,U23,U31

I1,I2,I3

Psum,Qsum,Ssum,PFsum

Freqency

DemandP,DemandQ,DemandS

1.6. power quality

Uunbalance,Iunbalance

1.7. Data logging

4 groups DataLog

Customizable record:Vln, Vll, I, P, Q, S, PF, Freqency, unbalance, Demand, EP, EQ, ES,Angle, EPrate, EQrate, ESrate

1.8. Communication

RS485,300~38400bps,1 start bit,1 stop bit,8 data bits ,None Parity

MODBUS-RTU

1.9. Display

320 segments character STN-LCD, Wide screen angle, Light blue white-lit LCD Display,

5 Displays figures.

4 operation keys.

1.10. Real Time Clock

RTC,clock run without power supply

Year, Month, Date, Hour, Minute, Second
