Name: Primary Current And Secondary Current Injection Test Seystem Accuracy: 0.5% 0-1100A
Current Output (AC): 1000A·5V Or 500A·10V Capacity: 5KVA
Range: 0-1100A 5KVA Resolution: 0.1A
LCD: Green LCD Weight: 25Kg
Highlight:

5KVA Primary Injection Test Equipment

,

0.1A Primary Injection Test Equipment

,

LCD Primary Injection Test Set

TEST-901 Primary Current and Secondary Current Injection Test Seystem of High Voltage Circuit Breaker

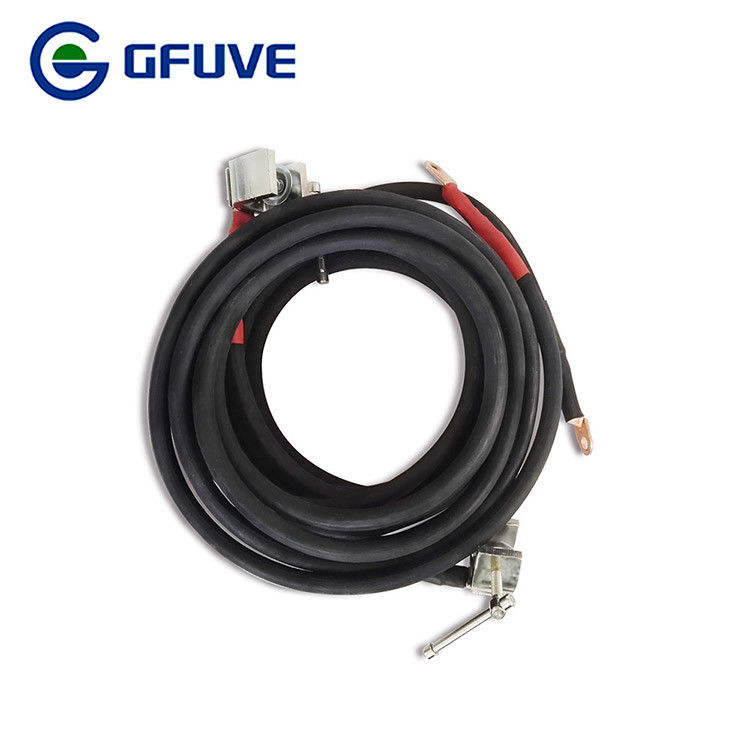

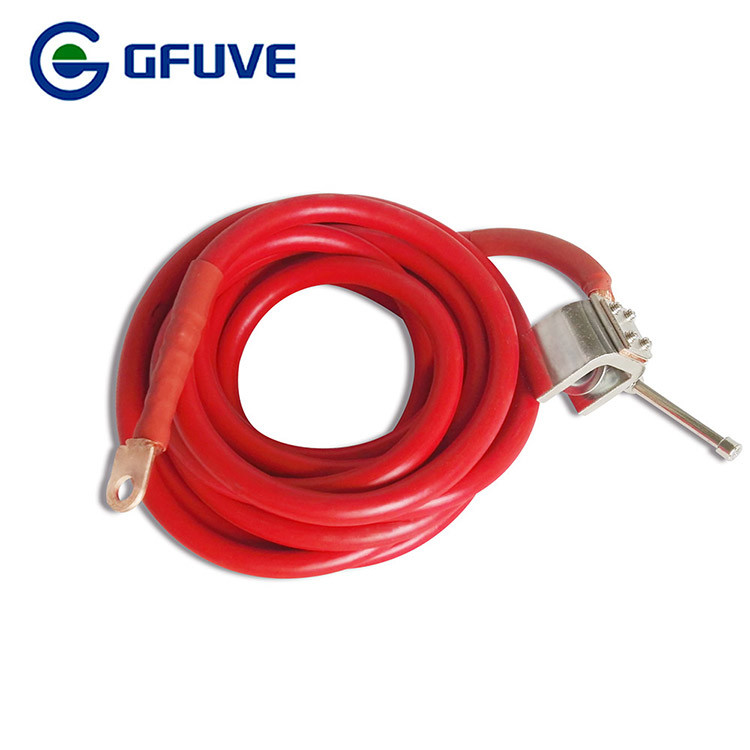

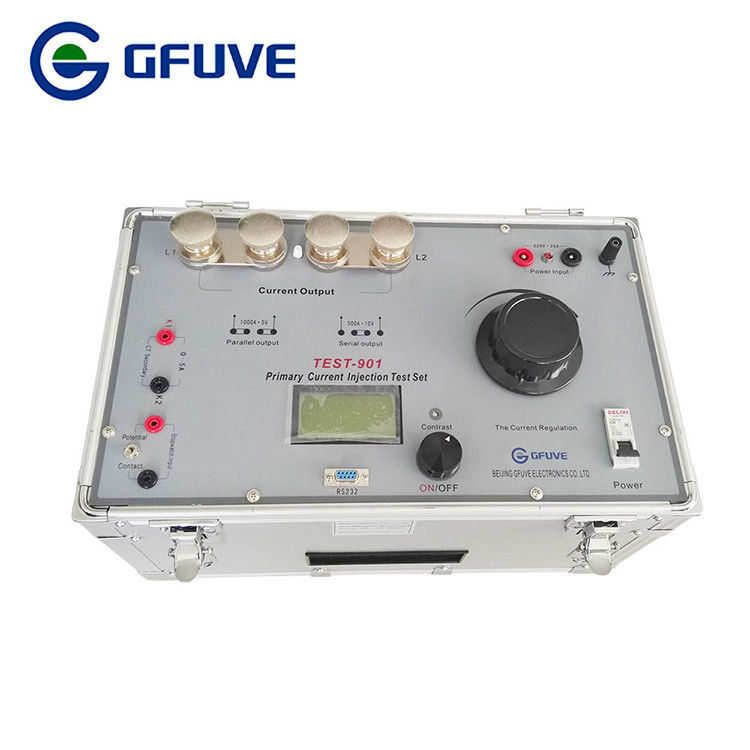

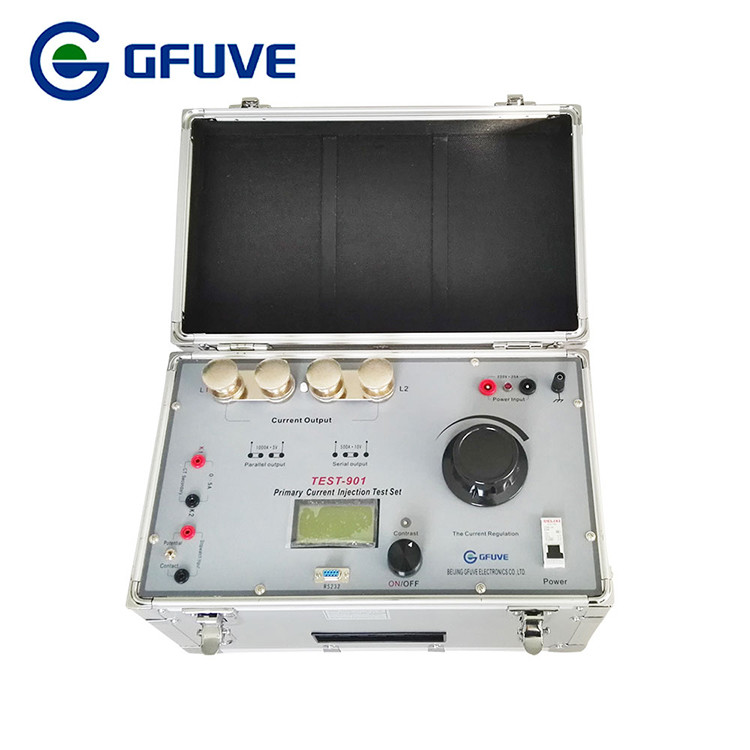

TEST-901 primary current injection test system adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with LCD display and current meter; it can show primary current value, second current value, turn ratio and the action time. Packing is used as aluminum alloy body with PC panel. TEST-901 is mainly applied to CT turn ratio testing in the power system and contact resistance test which need large current.

Primary current injection testing is utilised in high current/high voltage scenarios found at large electrical installations such as substations. A large current (between 100A and 20,000A depending on system specifications and test requirements) is injected directly on the primary side of the electrical system such as a circuit breaker.



High-current generator is a necessary equipment in all walks of life in electrical commissioning needs large current place, used in power plants, substations, electrical manufacturers and scientific research, laboratory and other units, belonging to short-term or intermittent working system, It has a small size, light weight, good performance, easy to use and maintenance features.



Application

Primary Current Injection Test Seystem of HV Circuit Breaker

Primary Current Injection Test Seystem of CT turns ratio

Primary Current Injection Test Seystem of contact resistance

Primary Current Injection Test Seystem of device temperature rise

Primary Current Injection Test Seystem of Cable

PARAMETERS

Electrical parameters　
Accuracy ±0.5%
Power Supply(AC) 220V±10%·25A, 50Hz/60Hz or
110V±10%·50A, 50Hz/60Hz
Current Output (AC) 1000A·5V or 500A·10V
Capacity 5KVA
The current output waveform distortion ≤5%
Dual protection overload electronic protection and software protection
Primary current　
Range 0-1100A
Resolution 0.1A
Accuracy <0.5%
Secondary measurement　
Range 0-6A
Resolution 0.001A
Accuracy <0.5%
Current duration　
1000A range 1000A 2-3minutes
500A 3-6minutes
500A range 500A 2-3minutes
With timer
Range 0.0001～999.99S
Resolution 0.001S
Accuracy <0.5%±5 words
Mechanical parameters　
Dimensions (W×D×H) (mm) 430×260×260
Weight(kg) 25
Environmental conditions　
Temperature -10°C to 40°C
Relative humidity ≤80%



Model ACCU
RACY		 Primary
current		 AMMETER
(0-6A)		 TIMER POWER INJECTION CURRENT TIME DIMENSION(W×D×H)(mm) WEIGHT REMARK
TEST-901 0.5% 0-1100A YES YES 5KVA 1000A: 2-3min;
500A:3-6min		 430×260×260 25KG Integrated structure
TEST-902 0.5% 0-2200A YES OPTIONAL 12KVA 2000A:2-3min;
1000A:3-6min		 360×300×295 and 320×300×300 35KG+15KG Fission structure
TEST-903 0.5% 0-3300A YES OPTIONAL 15KVA 3000A:2-3min;
1500A:3-6min		 380×350×360 and 340×290×420 48KG+42KG Fission structure
TEST-905 0.5% 0-5500A YES OPTIONAL 25KVA 5000A:2-3min;
2500A:3-6min		 430×430×445 and 550×450×600 68KG+55KG Fission structure
