Class 0.2s MV Interposing Current Transformer Instrument Durable Measurement

Class 0.2s MV Interposing Current Transformer Instrument Durable Measurement
Class 0.2s MV Interposing Current Transformer Instrument Durable Measurement Class 0.2s MV Interposing Current Transformer Instrument Durable Measurement Class 0.2s MV Interposing Current Transformer Instrument Durable Measurement
Basic Information
Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: CE , ISO9001
Model Number: GFLZZ0954-10A1
Minimum Order Quantity: 3 PCS
Price: Negotiable
Packaging Details: Standard Export Carton Box
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 PCs / Month
Get Best Price Contact Now
Name: MV Current Transformer Instrument Rated Primary Current: 5 - 2500A
Class: 0.2 Standards: 50Hz Or 60Hz
Color: Red Application: Current Measurement
Highlight:

current potential transformer

,

electromagnetic potential transformer

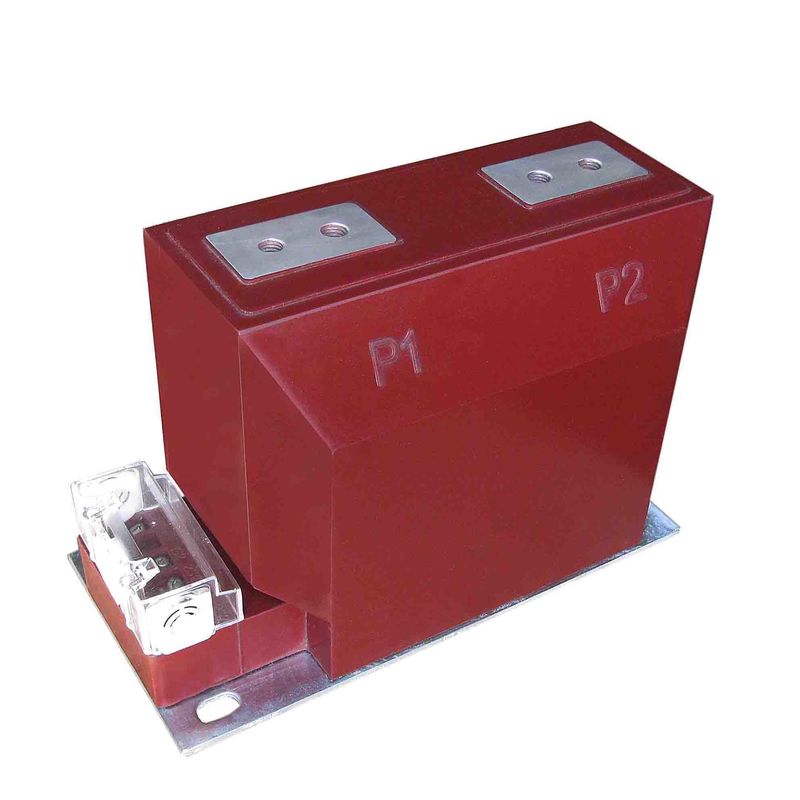

GFLZZ0954-10A1 Class 0.2s MV Current Transformer Instrument




The current transformer of the type GFLZZ0954-10A1 is casting resins and fully enclosed . It is used for metering electric energy and current , relay protection in the electrical system up to rated frequency 50Hz of 60Hz . The current instrument transformers can be executed according to the standards IEC60044-1 , IEC61869-2 and ANSI/IEEE C57.13 .



Design : 30 years life

Class : 0.2s or 0.5s

Standard IEC : 61869-2

Rated current : 5 – 2 500 A



Ratied Primary Current(A) Class Combination Accuracy class and Rated output
(VA)		 Short-time thermal current
(kA/S) 		Rated dynamic current
(kA)
0.2(S) 0.5(S) 10P10 10P15
5 0.2(S)/5P
0.2(S)/10P
0.5(S)/5P
0.5(S)/10P		 10 10 15 10 2 5
10 4 10
15 6 15
20 8 20
30 12 30
40 16 40
50 20 50
75 32 90
100 45 112.5
150
200
300 15
400
500
600 63 130
800
1000
1200 80 160
1500
2000-3150





Class 0.2s MV Interposing Current Transformer Instrument Durable Measurement 0
