Communication Internet Digital Panel Power Meter 600V RS-485 Ethernet Port

Basic Information

Place of Origin:	Beijing , China (Mainland)
Brand Name:	GFUVE
Certification:	CE
Model Number:	FU2200 - 1

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Standard export carton
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	2000 Pieces per Month

Get Best Price Contact Now

PT,CT Transformation Ratio:	Settable	Measuring Range:	30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1
Connection Mode:	RS-485 Interface Port Support, 32 (128) Networking, ModBus-RTU Communication Protocol	Harmonics:	3rd-19th
Accuracy Class:	0.5s	Analog Output:	FM-A20 Module
Highlight:	panel power meter , multifunction power meter

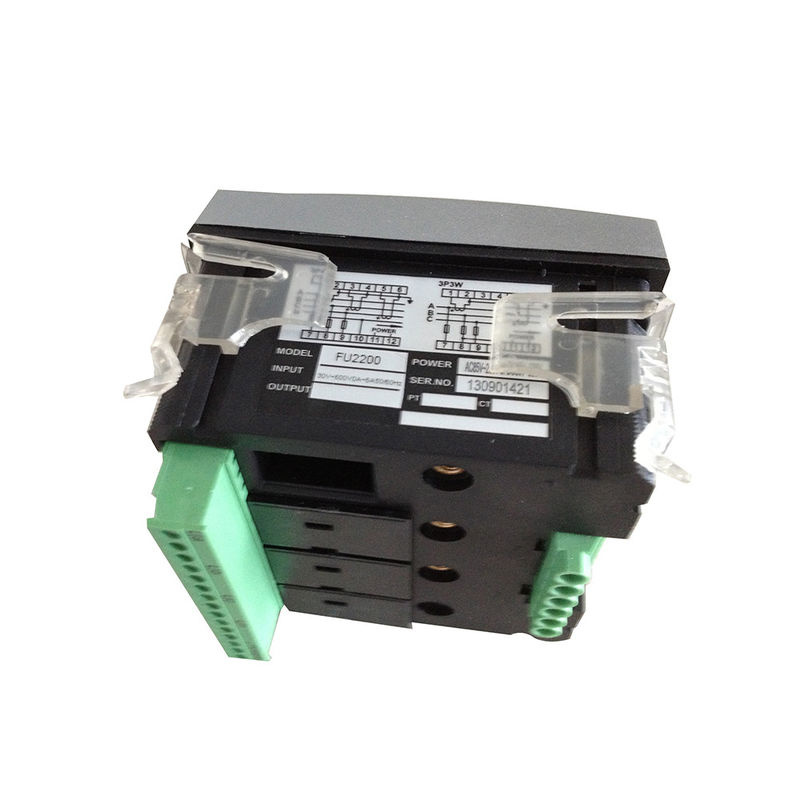

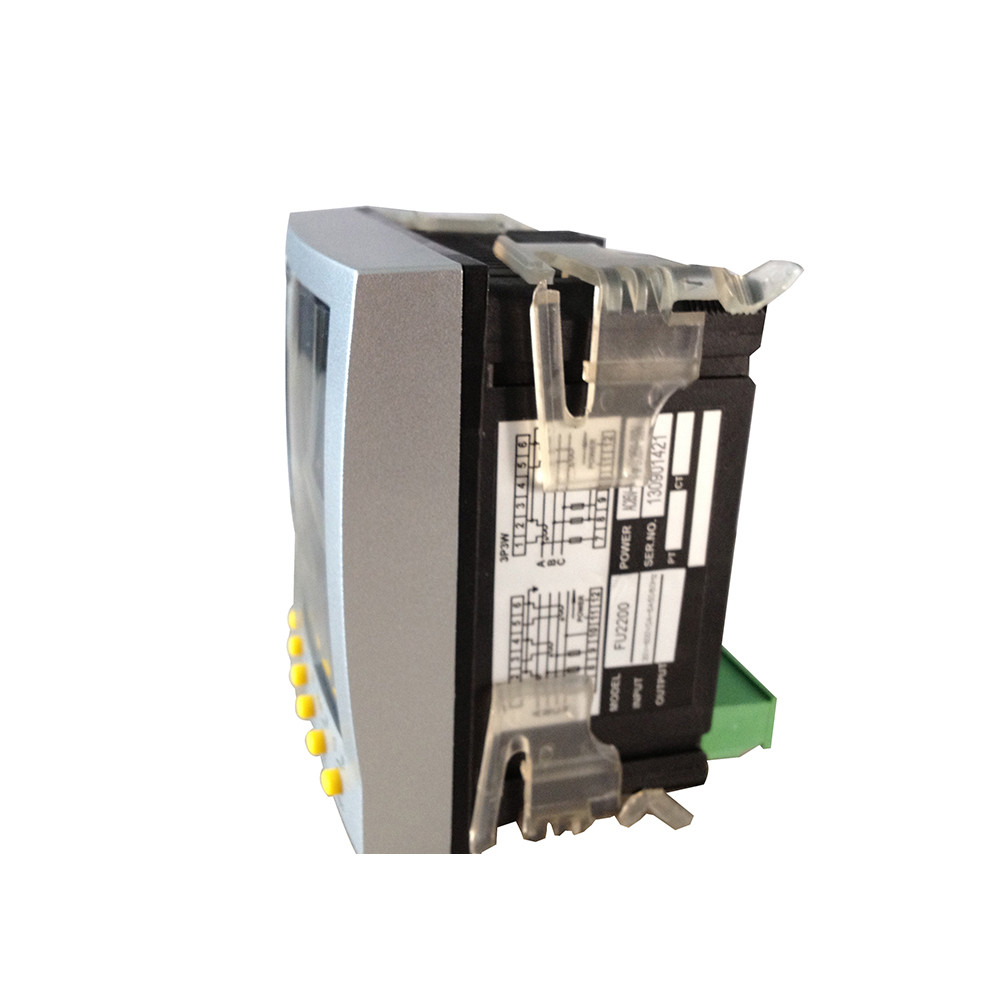

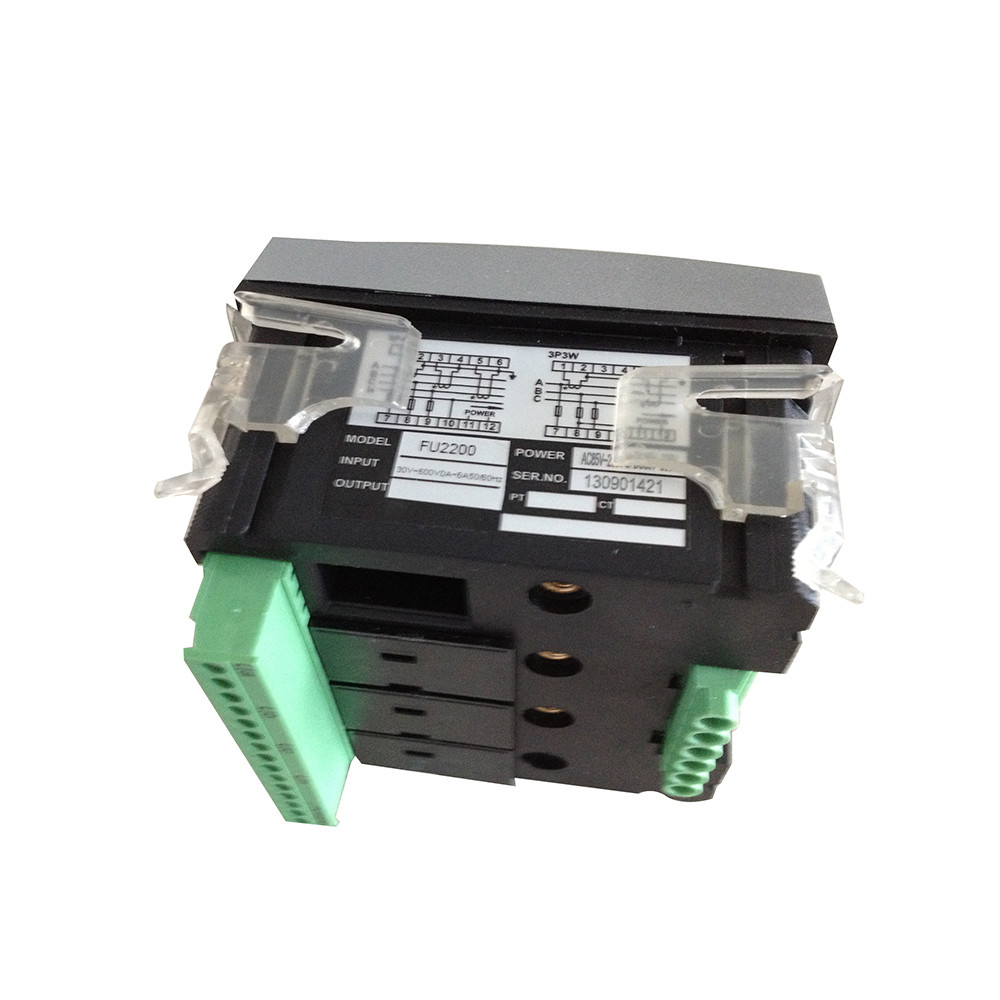

FU2200 MultFifunction Internet Power Analyzer Digital Power Panel Meter

FU2200 is a powerful three phase stop digital power meter, it can measure and display all the electrical parameters as well as harmonics ratio of current and voltage.

Four modules

RS-485 communication,

digital input/output,

energy pulse and

DC 4-20mA analog output module

Electrical parameters
Power supply (AC/DC)	AC85-265V / DC85-330V, DC18-90V (optional) Power consumption: <4VA
Measurement parameters	Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power(W); Reactive Power(Q) ; Apparent Power(S), 3^rd-19^th harmonics
Harmonics	Total harmonics ratio of phase-voltage Total harmonics ratio of current 3^rd-19^th harmonics ratio of Phase-voltage (RS485 output) 3^rd-19^th harmonics ration of current (RS485 output)
Maximum value	Max. value for voltage/current Max. value for active power Max. value for reactive power Max. value for apparent power
Computation	Forward active power energy Reverse active power energy Forward active power energy Reverse reactive power energy
Measuring range	30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1
Measuring accuracy	Frequency: 0.1% Electric energy: 0.5%, 1.0% Voltage : 0.2%±0.1V Current : 0.2%±0.001A Power : 0.5% ±0.4W Power factor : 0.5% ±0.001

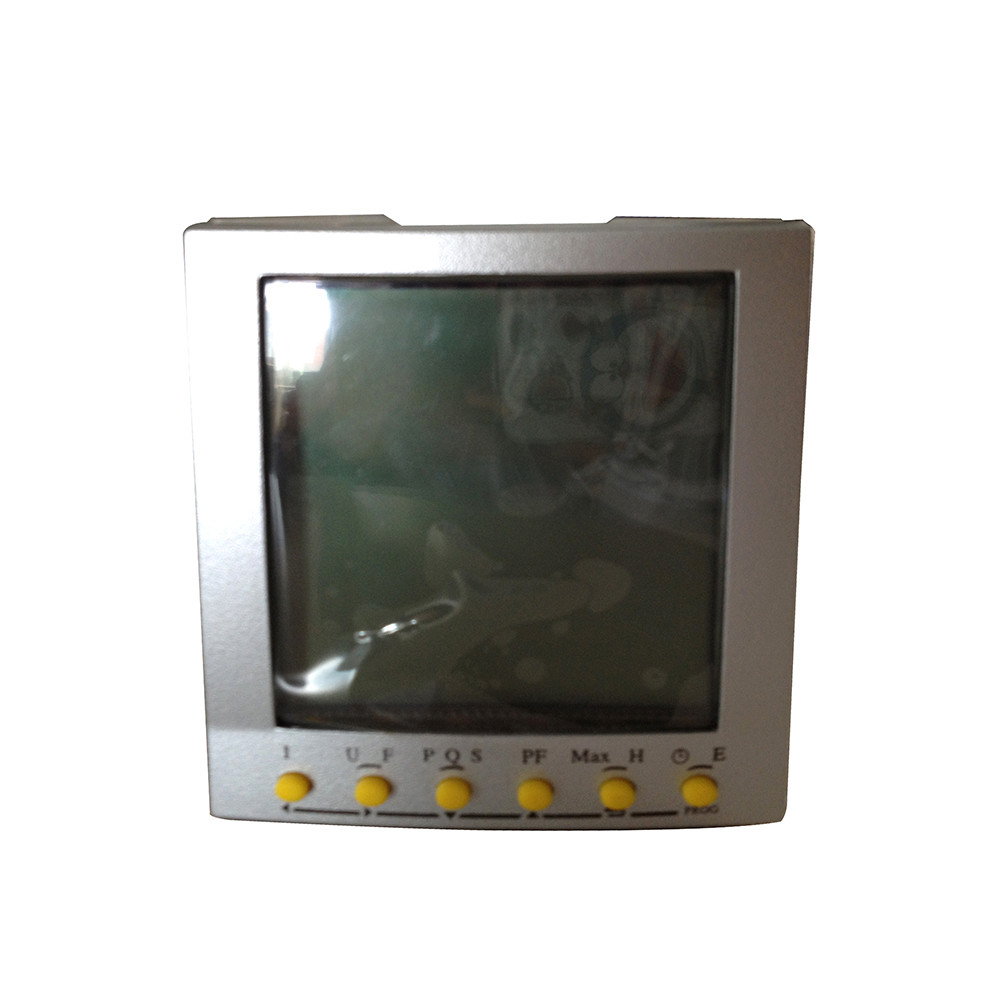

Display	Wide screen angle; Light blue back-lit LCD display; 5 display figures; 6 operation keys.
Communication (expansion)	Support RS485 port with expansion module FM-485, Modbus-RTU communication protocol. 32 (128) meters are connected as a network.
Programmable	Measuring system: 3P4W/3P3W etc. Transformation ratio : PT,CT. Communication: Address: 1-247; Baud: 1200-19200; Parity bit: N/E/O Energy: reset
Energy pulse (expansion)	FM-E2 provides active & reactive energy pulse output. 6 pulse parameters can be choose. Range: 0.1-10000kWh/kvarh; Dry contact output (1AX100V).
Data collection (expansion)	Each FM-K2 module can collect 2-ways dry contact counting
Control (expansion module)	Each FM-K2 provides 2 relay contact outputs, which can be controlled by communication or the measured parameters.
Analog output (expansion module)	Each FM-A20 module provides 2 ways of DC 4-20mA outputs, the function-relations can be set according to the measured parameters.
Connection mode	3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W
Communication	RS485 Port, Baud: 1200-57600, Standard 38400; Ethernet Port (option)
Mechanical parameters
Dimensions (mm)	Mounting panel: 96x96 Thickness: 20 Depth: 60 (without expansion module) 80 (without expansion module)
Mounting	Panel mounting Trepanning: 92x92mm
Environmental conditions
Temperature	-25 to +50°C
Humidity	20%-95%RH, Without condensation
