Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit

Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit
Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit
Basic Information
Place of Origin: BEIJING
Brand Name: GFUVE
Certification: ISO9001, CE
Model Number: TEST-901
Minimum Order Quantity: 1set
Packaging Details: Standard export wooden box
Delivery Time: 1-2weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200sets
Get Best Price Contact Now
Name: Primary Current Injection Test Equipment Current Range: 0-1100A
Accuracy: 0.5% Capacity: 5KVA

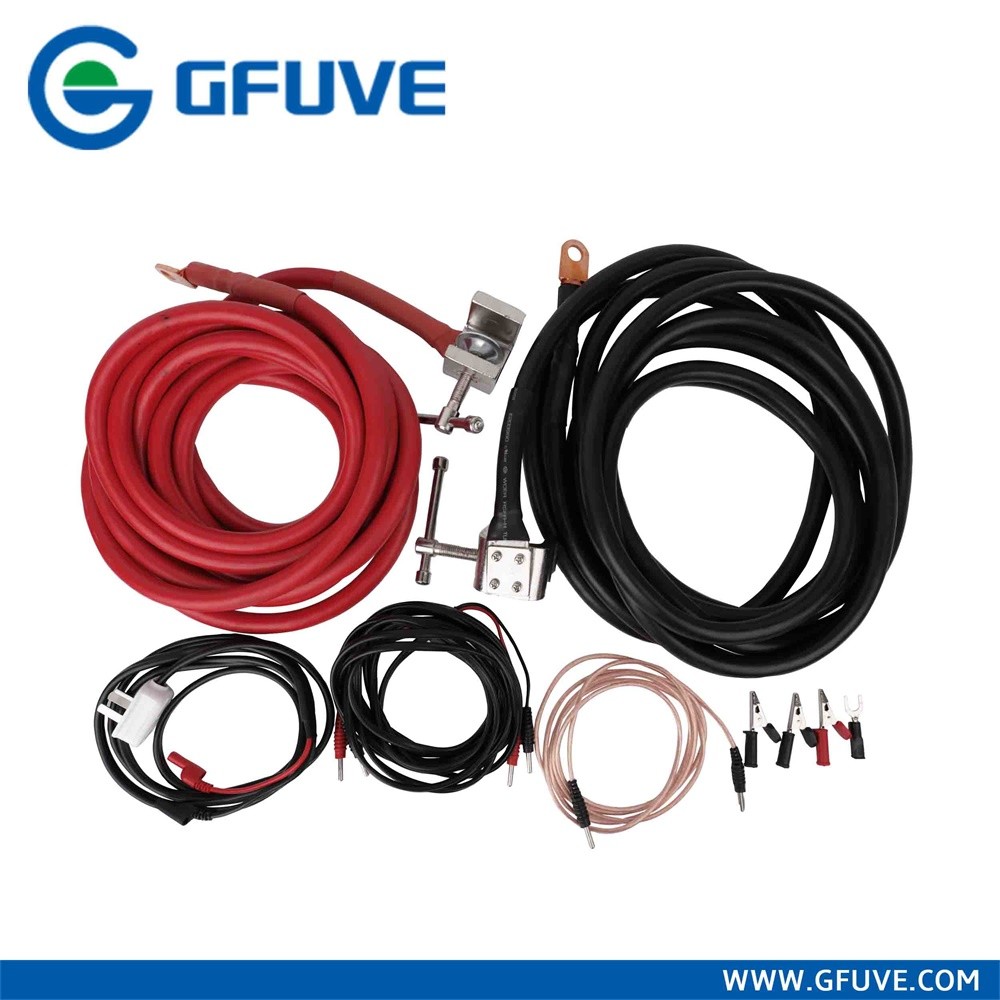

Weight: 25KG 1000A Cable: 6m Length
LCD: 320*240 Blacklight LCD Capicity: 5KVA
Time: 0-999.99s Binary: One
Function: CT Ratio
Highlight:

electronic test equipment

,

electronic test instruments

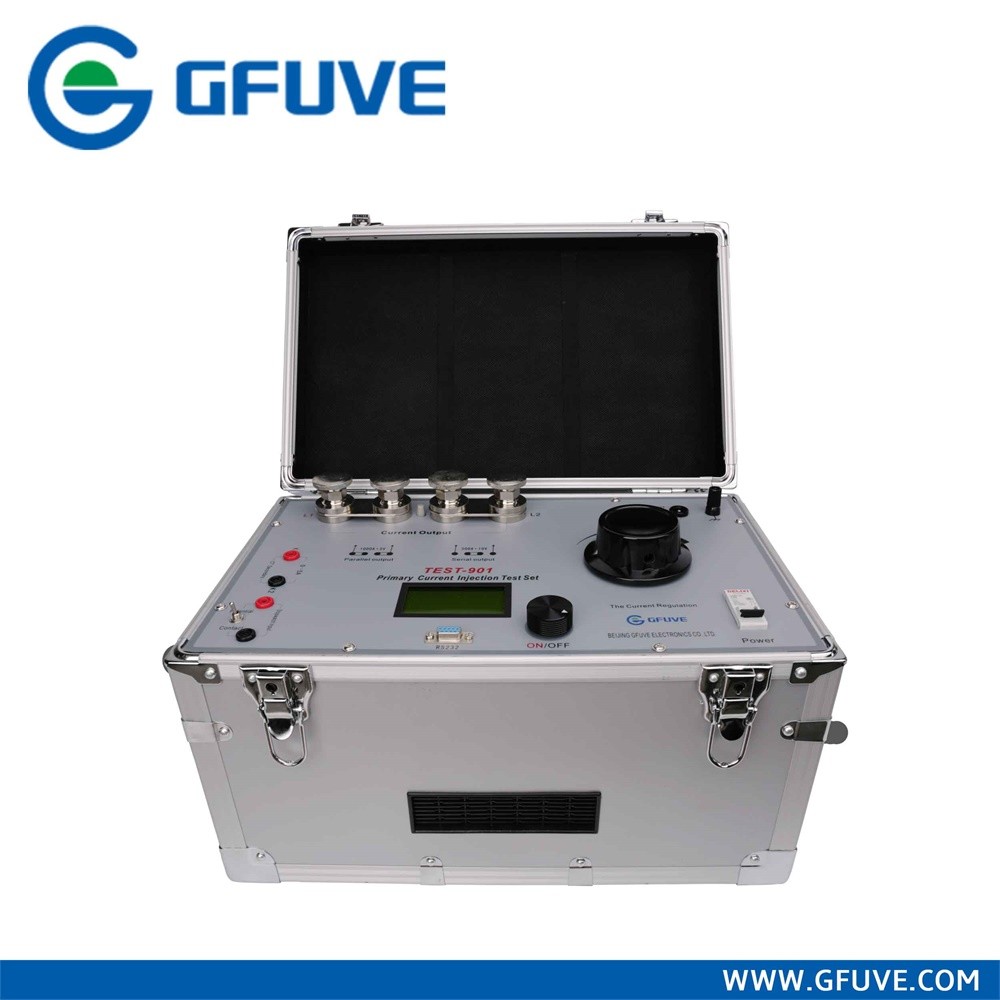

TEST-901 Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit

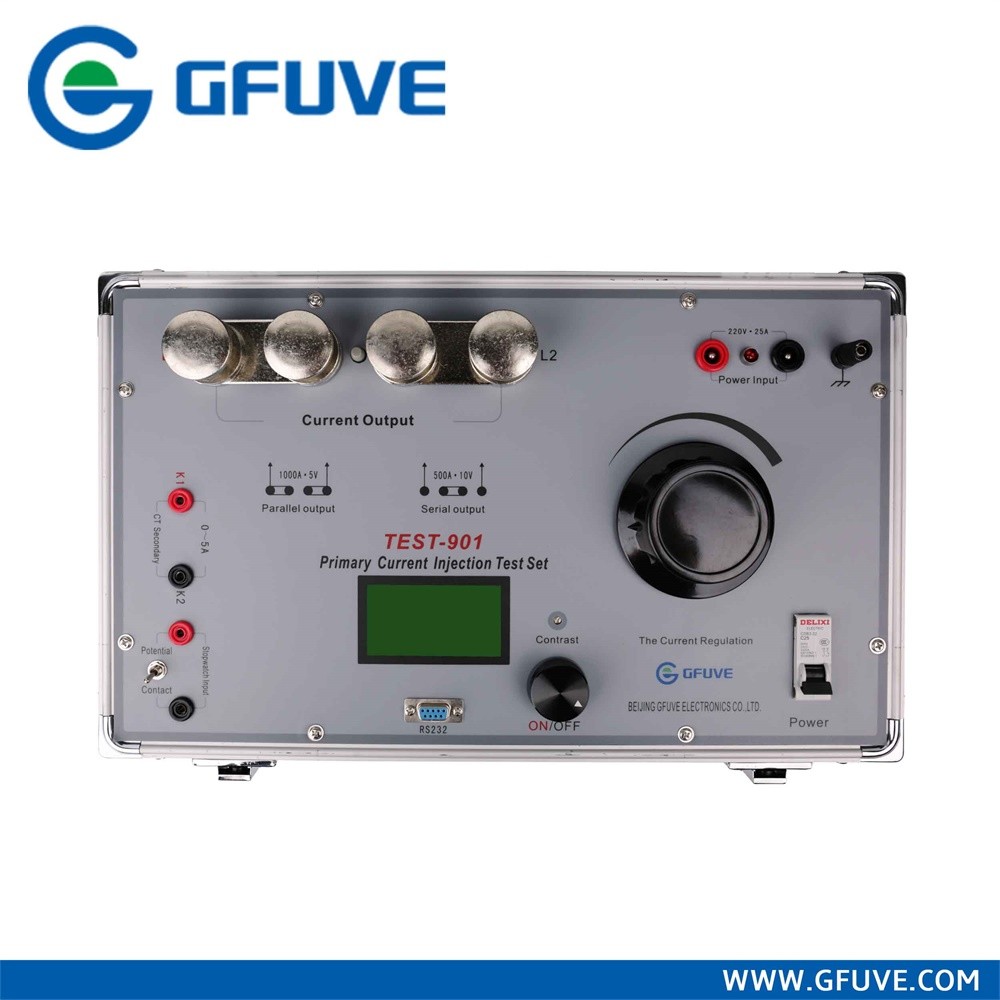

TEST-901 1000A primary current injection test equipment adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with LCD display and current meter; it can show primary current value, second current value, turn ratio and the action time. Packing is used as aluminum alloy body with PC panel. TEST-901 is mainly applied to CT turn ratio testing in the power system and contact resistance test which need large current.

Electric 1000A Heavy Current Primary Current Injection Test Equipment for Break Circuit 0

PARAMETERS

Electrical parameters　
Accuracy ±0.5%
Power Supply(AC) 220V±10%·25A, 50Hz/60Hz or
110V±10%·50A, 50Hz/60Hz
Current Output (AC) 1000A·5V or 500A·10V
Capacity 5KVA
The current output waveform distortion ≤5%
Dual protection overload electronic protection and software protection
Primary current　
Range 0-1100A
Resolution 0.1A
Accuracy <0.5%
Secondary measurement　
Range 0-6A
Resolution 0.001A
Accuracy <0.5%
Current duration　
1000A range 1000A 2-3minutes
500A 3-6minutes
500A range 500A 2-3minutes
With timer
Range 0.0001～999.99S
Resolution 0.001S
Accuracy <0.5%±5 words
Mechanical parameters　
Dimensions (W×D×H) (mm) 430×260×260
Weight(kg) 25
Environmental conditions　
Temperature -10°C to 40°C
Relative humidity ≤80%

SELECTION GUIDE

Model ACCU
RACY		 Primary
current		 AMMETER
(0-6A)		 TIMER POWER INJECTION CURRENT TIME DIMENSION(W×D×H)(mm) WEIGHT REMARK
TEST-901 0.5% 0-1100A YES YES 5KVA 1000A: 2-3min;
500A:3-6min		 430×260×260 25KG Integrated structure
TEST-902 0.5% 0-2200A YES OPTIONAL 12KVA 2000A:2-3min;
1000A:3-6min		 360×300×295 and 320×300×300 35KG+15KG Fission structure
TEST-903 0.5% 0-3300A YES OPTIONAL 15KVA 3000A:2-3min;
1500A:3-6min		 380×350×360 and 340×290×420 48KG+42KG Fission structure
TEST-905 0.5% 0-5500A YES OPTIONAL 25KVA 5000A:2-3min;
2500A:3-6min		 430×430×445 and 550×450×600 68KG+55KG Fission structure
