GF106T Smart Electrical Test Equipment CT PT Testing With Current Injection Function

GF106T Smart Electrical Test Equipment CT PT Testing With Current Injection Function

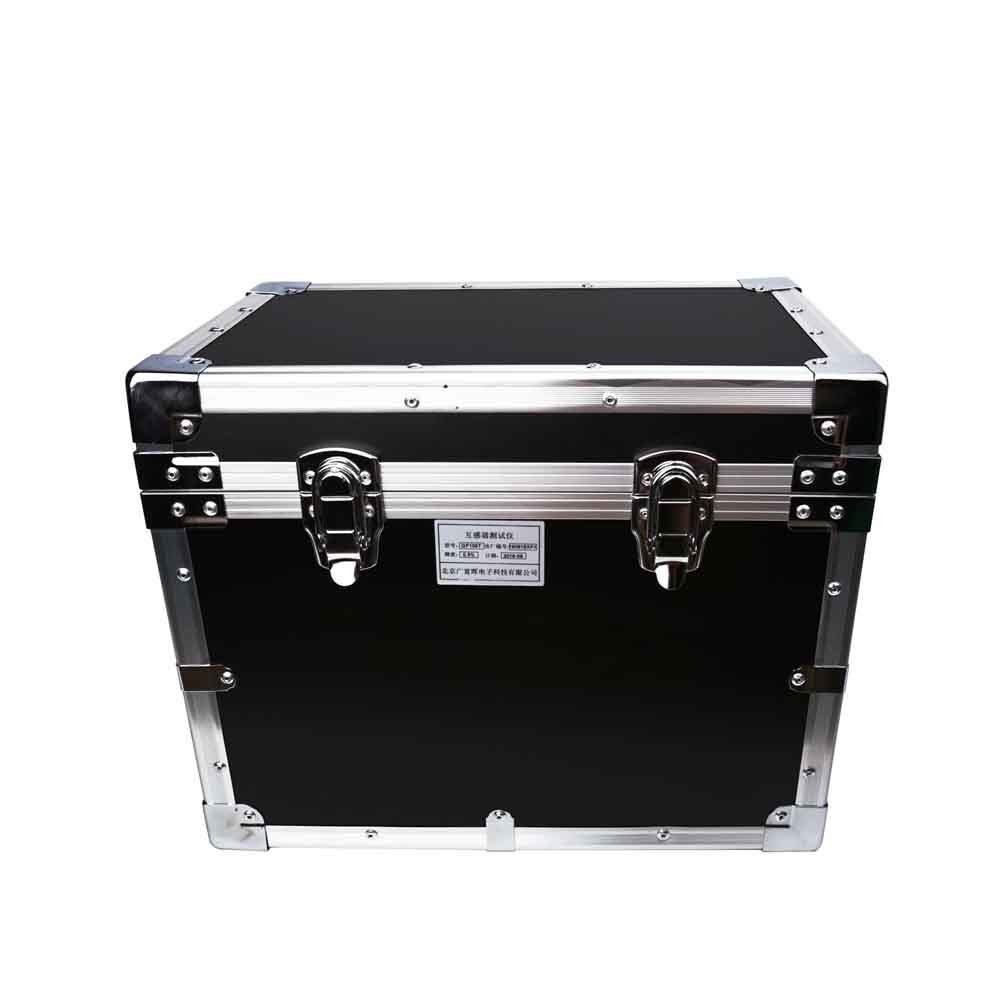

GF106T Smart Electrical Test Equipment CT PT Testing With Current Injection Function GF106T Smart Electrical Test Equipment CT PT Testing With Current Injection Function GF106T Smart Electrical Test Equipment CT PT Testing With Current Injection Function GF106T Smart Electrical Test Equipment CT PT Testing With Current Injection Function GF106T Smart Electrical Test Equipment CT PT Testing With Current Injection Function GF106T Smart Electrical Test Equipment CT PT Testing With Current Injection Function
Basic Information
Place of Origin: CHINA
Brand Name: GFUVE
Certification: ISO CE
Model Number: GF106T-2
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Industrial Case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 200 Sets/Month
Get Best Price Contact Now
Name: GF106T Smart Electronic Test Equipment For CT PT Testing With Current Injection Function Accuracy: 0.2%, 0.5%
Excitation Voltage Output: 0-2500Vrms, Excitation Current Output: 0-5Arms (20A Peak-value)
Large Current Output: 0-1000A Overall Dimension (L X W X H) (mm): Overall Dimension (L X W X H) (mm)
Highlight:

electronic test equipment

,

electronic measurement equipment



GF106T Smart Electronic Test Equipment for CT PT Testing with Current Injection function

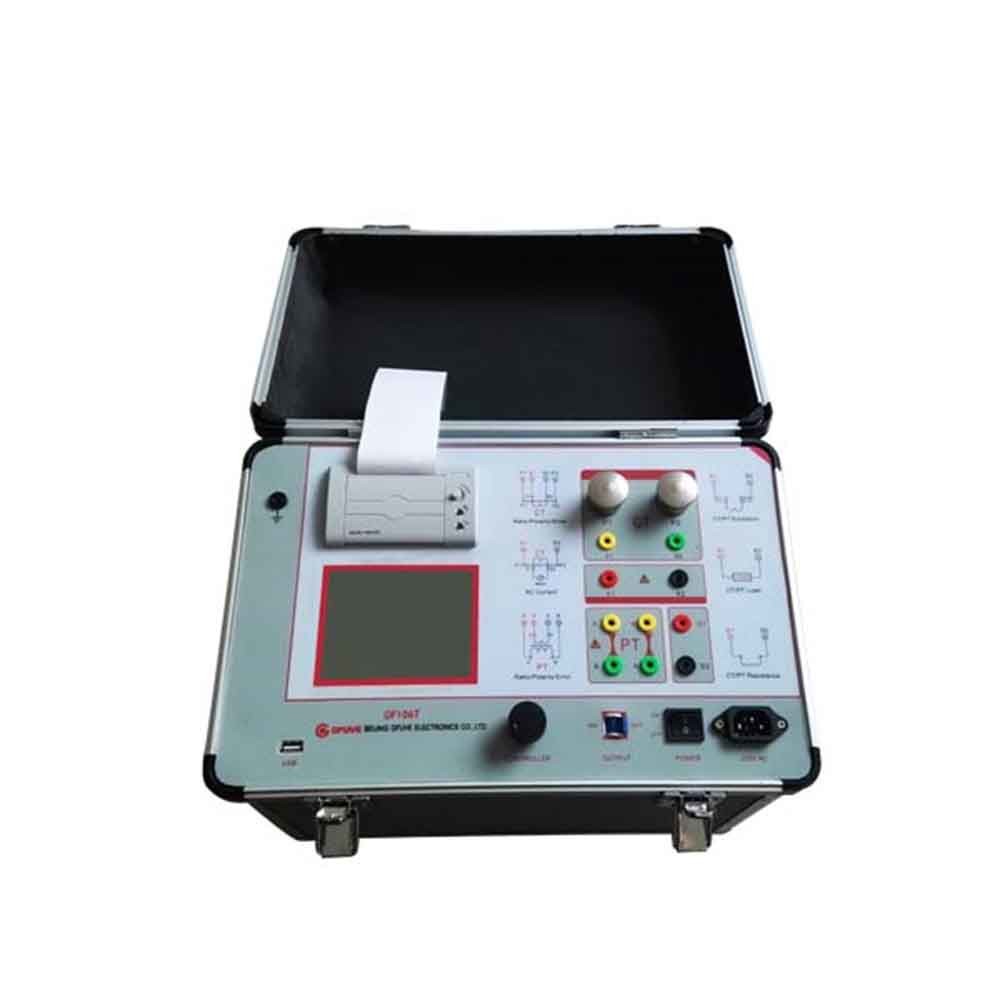

It is mainly used for field testing of P class CT and PT. The test items mainly include excitation characteristic, transformation ratio, polarity, degauss, 5% and 10% error curves, secondary circuit check, withstand test of power frequency alternating current and secondary load. Adopting LCD, self-equipped mini type printer supporting field printing; supporting to use USB flash disk to dump data, with simple and convenient operation.

Portable CT PT analyzer brings a lot of convinent for engieers to test CT on feild. Easy opearte and bring.

GFUVE GF106T is the basic model of CT PT analyzer, which used generate large curren and voltage for testing Ct and PT. This Model is economy, working stable .



MAIN FUNCTIONS

I. Current Transformer (CT) II. Voltage Transformer (PT)
1. Magnetization curve 1. Excitation characteristic test
2. Transformation ratio test 2. Transformation ratio test
3. Polarity 3. Polarity
4. 5% and 10% error curve 4. Withstand test of power frequency alternating current
5. Current Injecting 5. Degauss
6. Degauss 6. Calculation of knee point value
7. Withstand test of power frequency alternating current 7. Actual secondary load test　
8. Automatic calculation of excitation knee
point value		 8. Resistance test
9. Actual secondary load test　
10. Resistance test　

PARAMETERS

Electrical parameters
Accuracy 0.2%, 0.5%
Power supply AC 220V±10% or AC 110V±10%, 50/60Hz
Excitation voltage output 0-2500Vrms,
Excitation current output 0-5Arms (20A peak-value)
Large current output 0-1000A
Electrical parameters - continued
Accuracy ≤0.5% (0.2%RD+0.3%RG)
Secondary winding DC resistance measurement Range 0.1-300Ω
Accuracy ≤0.5% (0.2%RD+0.3%RG)
Secondary actual load measurement Range 5VA-1000VA
Accuracy ≤0.5% (0.2%RD+0.3%RG)±0.1VA
CT/PT phase error measurement Accuracy ±4min
Resolution 0.01min
CT ratio error measurement Range ≤25000A/5A(5000A/1A)
Accuracy ≤0.5%
PT ratio error measurement Range 1-500KV
Accuracy ≤0.5%
Standards　
Reference standards GB1207-2006, GB1208-2006, GB16847-1997
IEC60044-1, IEC60044-6, IEC61869-2-2012
Safety standards GB 4793.1-2007
EMC EMC standard 89/336/EEC
FCC Subpart B of Part 15 Class A
IEC 1000-4-2 /3 /4 /6
Mechanical parameters　
Overall dimension (L x W x H) (mm) 400 x 250 x 250
Weight (kg) ≤22
Environmental conditions　
Relative humidity 90RH%
Operating temperature -10°C to +40°C
Altitude ≤1000m





Tag:

electronic measurement equipment,

electronic test instruments,

electronic test equipment
