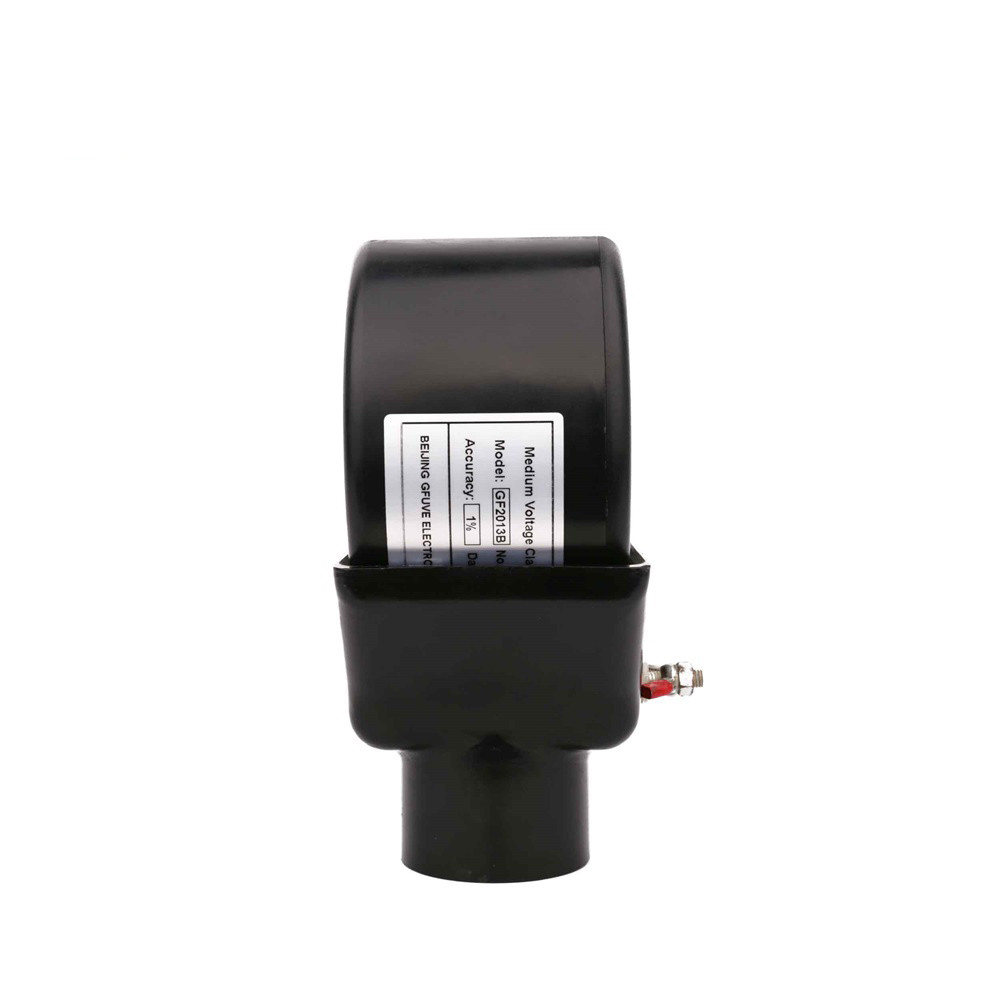

GF2013 High Accuracy Wireless Current Sensor Ammeter 3.6 Volt Lithium Battery

Basic Information

Get Best Price Contact Now

NAME:	GF2013 Wireless High Accuracy Ammter Recorder With Current Sensoring Function	Data Recording Interval:	5min, 10min,15min, 30min;
Communication Distance(wireless):	100m	Communication:	433M, 868M Or 915M (option)
Installation:	Installation With Electricity; Remove With Electricity	Battery:	3.6 Volt Lithium Battery,9000mAh
Highlight:	recording ammeter , wireless current transducer

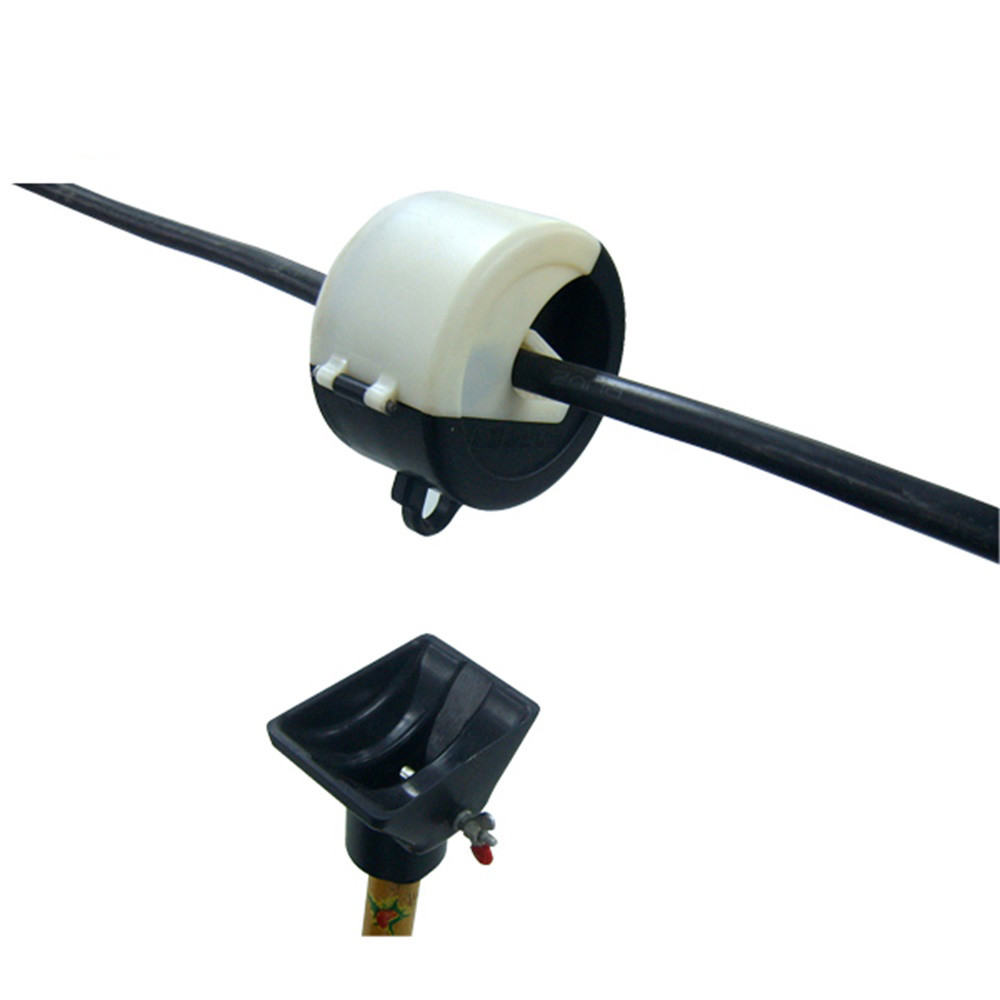

GF2013 is an wireless current recorder,which can help you monitor the Three phase current changes of the Primary 10KV 35KV 69KV line. It is very easy to install the wireless sensors onto the ovearhead line and also easy to unistall them. No need cut off the power of the line when isntall and unistall. The wireless sensor can stay on line keep working for some days to record the current datas,

Measurement Accuracy: class 1%
Small volume, light weight, easy to overhead installation, safe environmental protection
Battery power supply, low power consumption, long life
Transmission distance: 100 m
Simple structure, operation convenient
Install or remove with power on

Basic parameters
Type	Recording ammeter kit 3 wireless current sensors (GF2013A, GF2013B, GF2013C) 433M wireless data reader(GF2013R) PC-Linksoftware software(GF2013S) Carrying case
Data recording interval	5min, 10min,15min, 30min;
Communication distance(wireless)	100m
Communication	433M, 868M or 915M (option)
Installation	Installation with electricity; remove with electricity
Battery	3.6 volt lithium battery,9000mAh
Software requirements	PC-LinkSoftware & Microsoft Excel
Processor	100 MHz or Higher ( 200 MHz or higher recommended)
RAM	32 MB, 64M Recommended
Drive Space	15 MB to load software, 10 MB of operating space
Electrical parameters
Amps accuracy	±1% of reading plus 2 counts
Frequency	50/60 Hz
Range of operation
Voltage	69kV, 35kV, 20KV, 10kV, 6kV
Current	1-100A, 1-300A
Sensor opening	up to 3.3 cm
Resolution
1-99.9A	0.1A
100-300A	1A
Mechanical parameters
Dimensions (W×D×H) (mm)	500x600x175
Weight (kg)	0.42
Environmental conditions
Operating temp	-40°C to 60°C
Use of position	Outdoor or indoor
