GF303P Electrical Test Equipment EMC Test Power Source Liquid Crystal Display

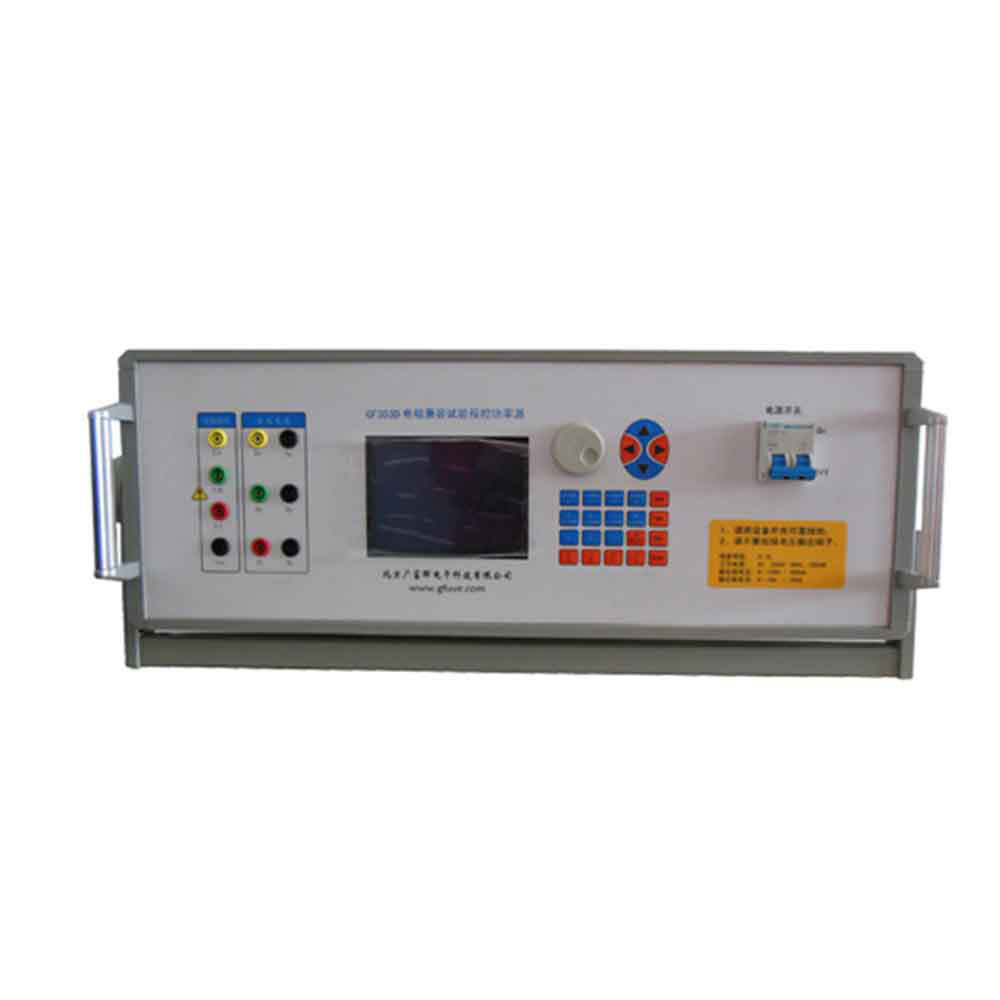

GF303P Electrical Test Equipment EMC Test Power Source Liquid Crystal Display
GF303P Electrical Test Equipment EMC Test Power Source Liquid Crystal Display GF303P Electrical Test Equipment EMC Test Power Source Liquid Crystal Display GF303P Electrical Test Equipment EMC Test Power Source Liquid Crystal Display
Basic Information
Place of Origin: China
Brand Name: GFUVE
Certification: CE,ISO9001:2008,IEC
Model Number: GF303P
Minimum Order Quantity: 1Set
Price: US$15000~US$18000/Set
Packaging Details: Aluminium alloy box
Delivery Time: 25days upon receipt of payment
Payment Terms: Western Union, T/T
Supply Ability: 20Sets/Month
Get Best Price Contact Now
GF303P: EMC Test Power Source Function: EMC (electromagnetic Compatibility) Test
Power Supply: AC 220V±10% Frequency Range: 40-65 Hz
Power Factor Range: -1 ~ 0 ~ +1 Display: 320 X 240 Liquid Crystal Display (LCD)
Highlight:

electronic test equipment

,

electronic test instruments



GF303P EMC Test Power Source with excellent working performance







Description



GF303P is designed as the power source for EMC (electromagnetic compatibility) test. Adopts advanced technology to be anti-interference. Good stability, high degree of automation, easy to carry.



Application

Electrical measurement in Power system, thermal, remote, scheduling and so on

Inspection for high precision standard source power institute and company,

Supply standard input for EMC test for Metrology Institute, Electric Power Academy of Sciences

Standard source in EMC lab

EMC test to inspect meter accuracy

Also can work with other instrument in EMC lab like surge generator, group of pulse generator, frequency drop generator, electrostatic generator etc.



Features

The use of special technology and process, the power supply output anti-interference ability, suitable for various electromagnetic compatible immunity test

Voltage, current and phase, power factor, frequency, etc will set up and take load regulation

It can be set up 2~50 harmonics amplitude and phase, and it can be added to the fundamental wave in every harmonic output

Frequency points phase adjustable (U1U2 and U3 phase)

Voltage and current output range wide, big power, high stability, waveform distortion small

Strong loading ability, and it can take capacity, sensibility, impedance load or composite type load, and the load regulation RG is higher than 0.01%

The 32 bit MPU + DSP + FPGA, powerful agile

Hardware PID, fast response, load change will not cause output fluctuations

Power frequency weekly wave is as high as 50000 points of waveform kneading, signal output without filtering, waveform output precision, harmonic output precision, harmonic distortion small

Range automatic switching; Software calibration, simple operation, stable and reliable

The large screen 320 x 240 liquid crystal display (LCD), English interface, simple operation

Perfect over-current, over-voltage, overheating, short circuit, open circuit, overload protection, automatic fault detection

With RS232 interface, it can connect with PC.

With PC software, it can control standard source output via programmed.



Electrical parameters 　
Power supply AC 220V±10%, frequency 50/60 Hz
AC voltage output 　
Range (U1, U2, U3 phase) 0-120 V; range switch automatically
Adjust fineness 0.01% RG
Accuracy 0.1% RG
Stability 0.03% RG/200s
Distortion degree <0.1% (not capacitive load)
Output power 300VA
Full load regulation rate 0.01% RG
Full load regulation time Less than 1mS
Long-term stability ±60 PPM/year
AC current output 　
Range (I1, I2, I3 phase) 0-10A; range switch automatically
Adjust fineness 0.01% RG
Accuracy 0.1% RG
Stability 0.03% RG/200s
Distortion degree <0.1% (not capacitive load)
Output power 25VA
Full load regulation rate 0.01% RG
Full load regulation time Less than 1mS
Long-term stability ± 60 PPM/year
Power output 　
Accuracy 0.1% RG
Stability 0.03% RG/120 s
Phase angle 　
Adjusting range 0°-359.99°
Resolution 0.001°
Accuracy 0.1°
Frequency 　
Adjusting range 40-65 Hz
Resolution 0.002 Hz
Accuracy 0.005 Hz
Temperature drift ± 0.5 PPM /°C
Long-term stability ± 4 PPM/year
Power factor 　
Adjusting range -1 ~ 0 ~ +1
Resolution 0.0001
Accuracy 0.0005
Harmonic accuracy 　
Harmonic times 2-50st
Harmonic phase 0-359.99°
Harmonic phase accuracy <0.01°
Harmonic set accuracy 0.1% (relative to the base wave ratings)
With capacitive load capacity 　
0-120 V 1uF
Mechanical parameters 　
Dimensions (W×D×H) (mm) 500x600x180
Weight (kg) About 50
Environmental conditions 　
Working temperature 0°C to 40°C
Storage condition -30°C to -60°C
Relative humidity ≤ 85%

GF303P Electrical Test Equipment EMC Test Power Source Liquid Crystal Display 0
