GFUVE GF334 Small Size Portable Power Quality Meter Ultra - Compact Design

GFUVE GF334 Small Size Portable Power Quality Meter Ultra - Compact Design
GFUVE GF334 Small Size Portable Power Quality Meter Ultra - Compact Design GFUVE GF334 Small Size Portable Power Quality Meter Ultra - Compact Design GFUVE GF334 Small Size Portable Power Quality Meter Ultra - Compact Design
Basic Information
Place of Origin: Beijing China
Brand Name: GFUVE
Certification: CE,ISO9001:2008,IEC
Model Number: GF334
Minimum Order Quantity: 1Set
Price: US$3500~US$4000/Set
Packaging Details: Standard export packages
Delivery Time: 16days upon receipt of payment
Payment Terms: Western Union, T/T
Supply Ability: 35Sets/Month
Get Best Price Contact Now
GF334: Three Phase Handheld Harmonics Power Analyzer Harmonics: 2nd To 64th
Current Clamps: 100A Voltage Range: 0·1200A
Characteristics: Lightweight Portable Certificate: CE,ISO9001:2008,IEC
Highlight:

power harmonics analyzer

,

portable power quality meter

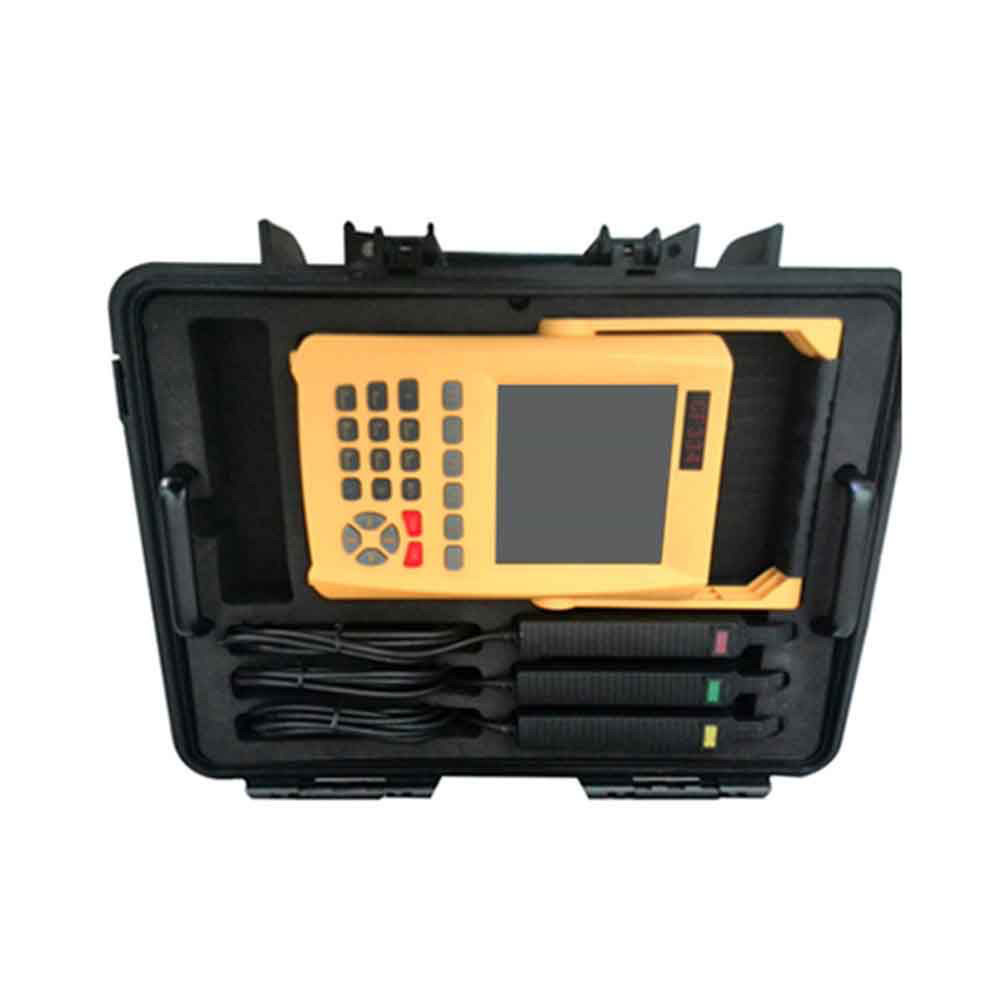

GF334 small size handheld harmonics power analyzer,english version display, handheld



portable, with three units of current clamps(100A).







Introduction

GF334 small size handheld harmonics power analyzer is suitable for power company, technical supervision department, industrial, mining, petroleum as well as chemical, home appliances and manufacturing enterprises.







Functions



(1) Measuring energy consumption values: the precise timing measurements of electrical equipment for short-term energy consumption; energy resolution; milli-watts; time resolution; milli-second; they are difficult to available for common instrument of power. The functions are used by pumping, cranes, air conditioning and other equipment in a work cycle connected power consumption.

(2) The value of the measurement process: it can be recorded and tested continuously of voltage, current, active power, reactive power and other electrical parameter values ​​and curves in a dynamic process and graphically display.

(3) To measure the instantaneous values ​​- including the exchange parameters: U, I, P, Q, PF, phase angle, frequency, harmonics, etc.

(4) Measuring harmonics: measure/display voltage and current waveforms and harmonic bar graph.

(5) Calibrator meter: load calibration of various single phase and three phase energy meters.

(6) Vector analysis: based on the voltage, current and phase error, display vector graphics.





Features

  1. Ultra-compact design, handheld, small size, light weight.
  2. The usage of multi-channel power supply, AC power supply can also be rechargeable battery-powered machine.
  3. High accuracy instrument, good stability and wide range of voltage monitoring 0-1200V, current 1mA - 20A.
  4. It can be divided into direct current clamp measurements and precision measurements.
  5. It can measure three phase voltage, current, active power, reactive power, power factor, frequency, phase, etc.
  6. Showing the AC waveform, vector diagram and determining the 3P3W connection errors.
  7. It can measure harmonics ration from 2nd to 64th and the harmonic analysis.
  8. The measured data can record, query and upload print.
  9. Instrument calibration by using software to facilitate the correction instrument variation.
Items Range Effective resolution Accuracy1 Accuracy2 Remarks
Voltage 0-1200V 0.001V 0.1% 0.05% 2 ranges
Current 0-20A 0.001A 0.1% 0.05% 3 ranges
Clamp-on 0.01-100A 0.01A 0.15% 0.15% Option(1)
Frequency 45-65Hz 0.001Hz 0.01Hz 0.002Hz 5 bit display
Active power 0 to ±Umax × Imax 0.01W 0.5% 0.2% 5 bit display
Reactive power 0 to ±Umax × Imax 0.01Var 1% 0.5% 5 bit display
Apparent power 0 to ±Umax × Imax 0.01VA 1% 0.5% 5 bit display
Active energy 　 　 0.5% 0.2% 　
Reactive energy 　 　 1% 0.5% 　
Harmonic 2nd-64th 　 0.5% 0.2% 　
Power factor 0 to ±0.9999 0.0001 ±0.001 ±0.0005 5 bit display
Phase 0-359.999o 0.005o ±0.05o ±0.02o 6 bit display
(1) Directly test
(2) Clamp-on 500A,3000A,5000A is optional.
Electrical parameters
Power supply One-phase power supply (85-265VAC/45-70Hz)
Lithium battery, 5000mAh
Communication port RS232
Energy constant 3600imp/kWh, 360000imp/kWhx4
Frequency Influence ≤20ppm/Hz
Pulse Interface TTL energyx6
Mechanical parameters
Main machine (L×W×H) (mm) 240×157×60
Weight (kg) 1.5
Carrier dimension (L×W×H) (mm) 470×380×220
Carrier weight (kg) 10.6 (Including three clamp-on (100A), wires and software)
Environmental conditions 　 　 　 　
Environment -10 to +55°C, 15-85%RHD
Altitude (m) -10 to 3500
Temperature -20°C to 65°C
Temperature ≤25ppm/°C (U/I), ≤50ppm/°C (others)
