GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory

GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory
GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory
GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory GFUVE Handheld Three Phase Power Quality Analyser High Precision 32G Memory
Basic Information
Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: IEC61000-4-30 CLASS A
Model Number: GF438II
Minimum Order Quantity: 3set
Price: USD10000/set
Packaging Details: Standard export wooden box
Delivery Time: 3-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300sets/month
Get Best Price Contact Now
KEYWORD: Power Quality And Energy Analyzer Class: 0.1
Voltage Range: 0-1000V, Peak 6000V Currange Range: 0-3000A， 0-6000A， 0-1000A, 0-100A
Channel: 4 Channel U, 4 Channel I LCD: 6.5 Inch TFT Color LCD
Standard: IEC 61000-4-30, IEC 61000-4-15, IEC 61000-4-7 Memory: 32G
Size: 263mm X 168mm X 65mm Harmonics: 2-63st
Flickering: ±5%
Highlight:

power quality analyser

,

power harmonics analyzer

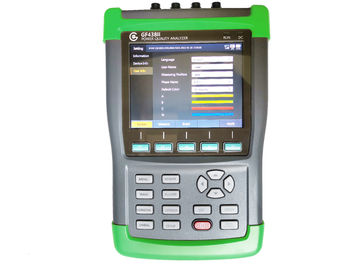

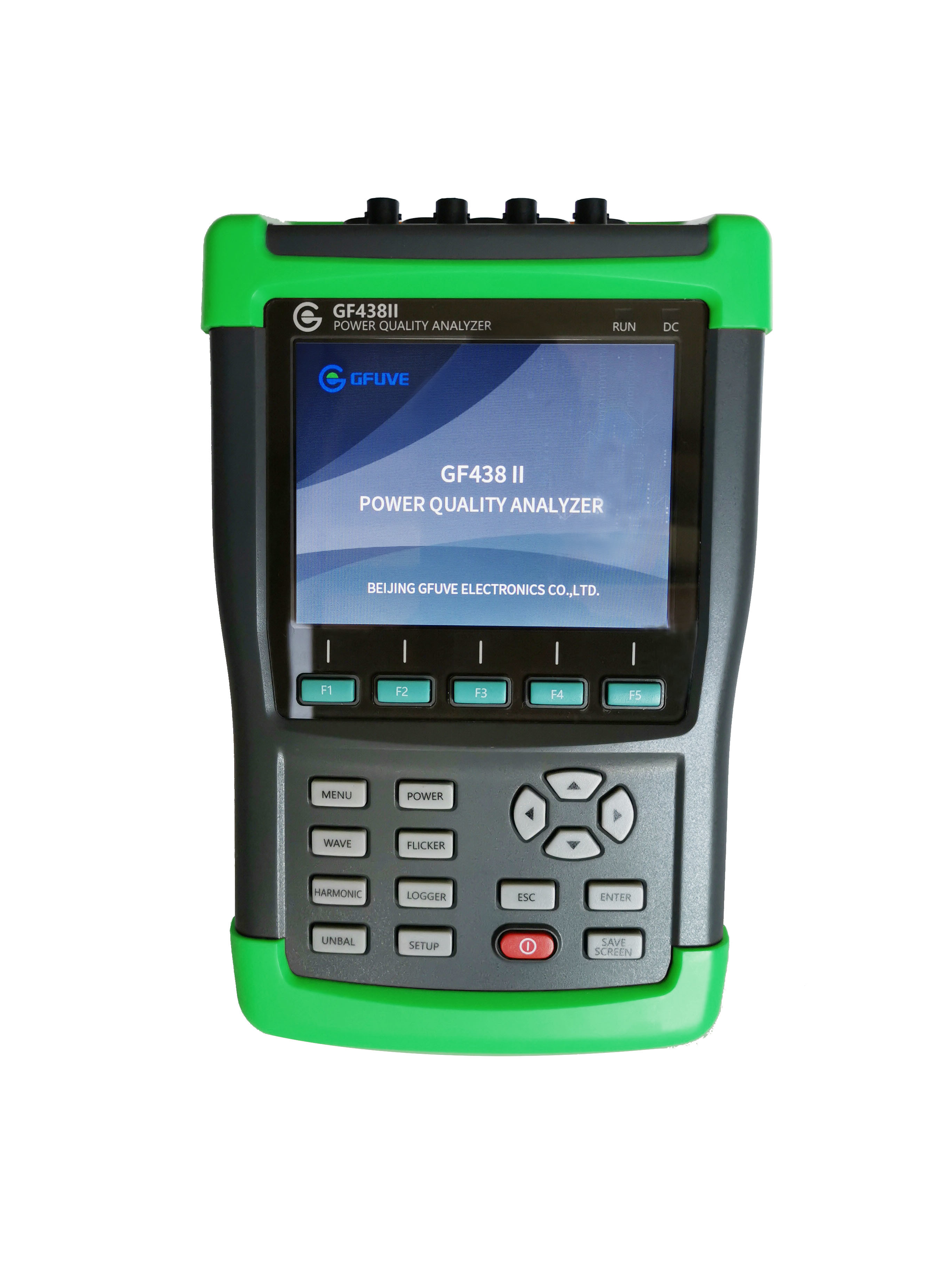

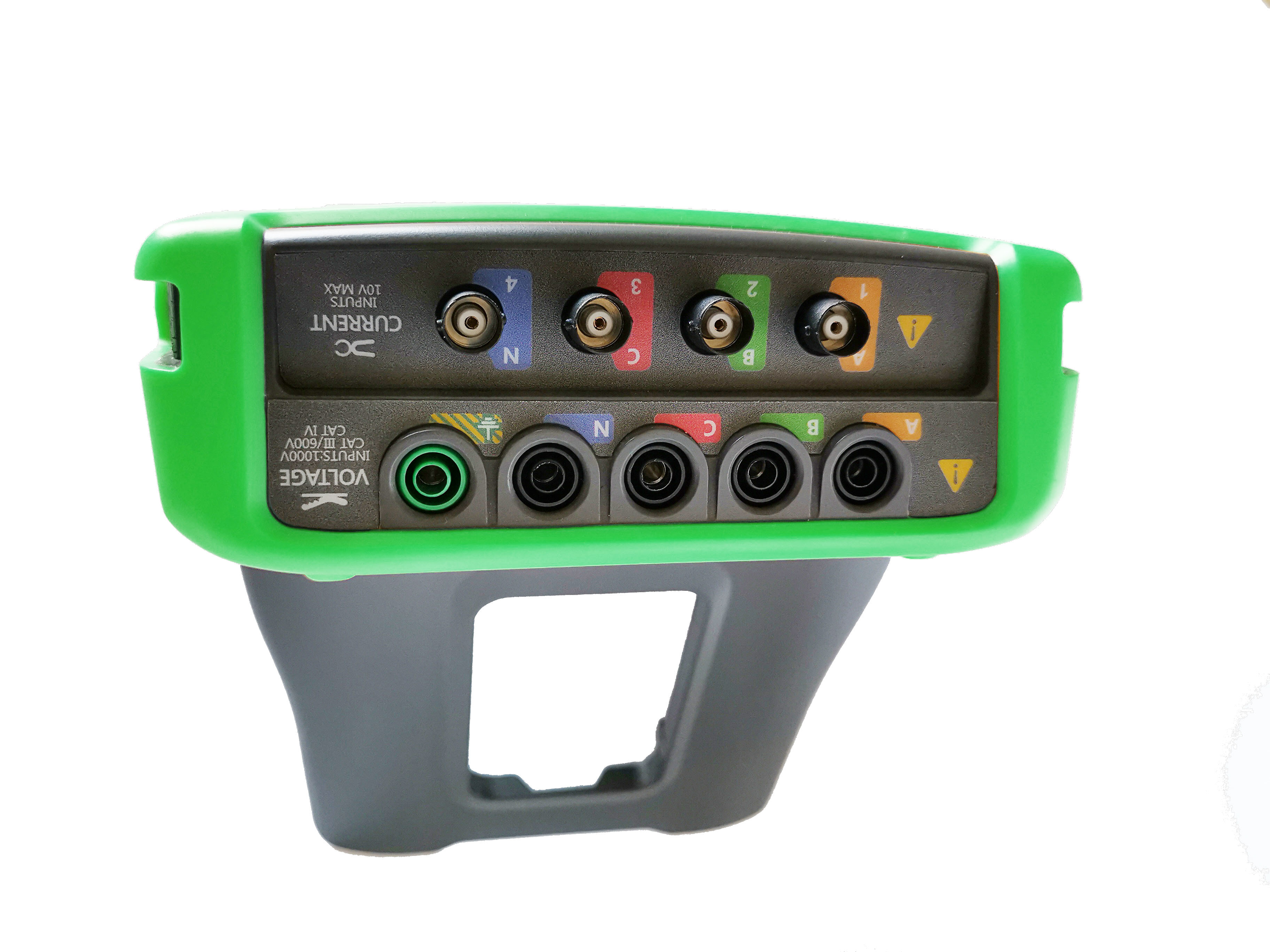

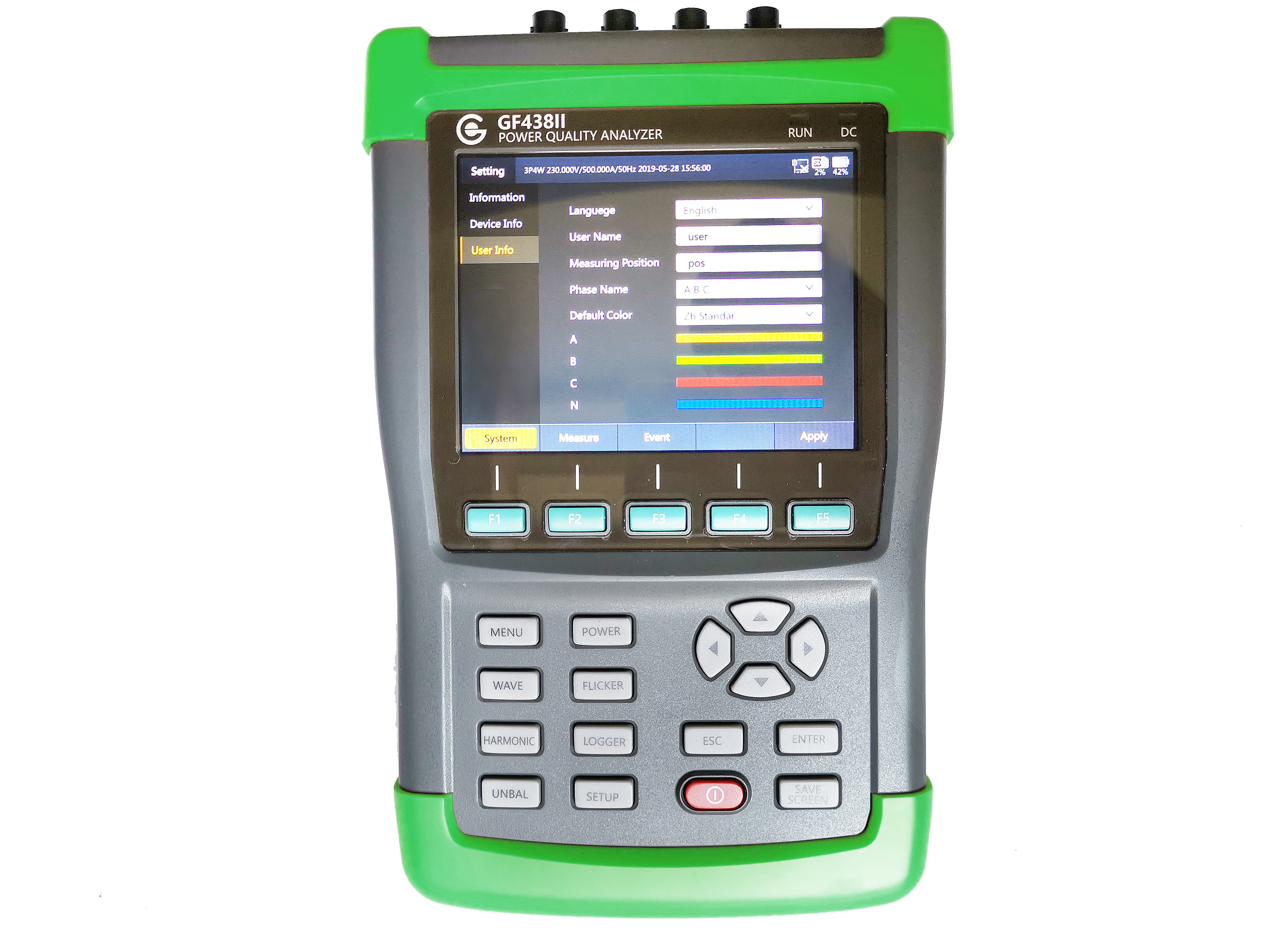

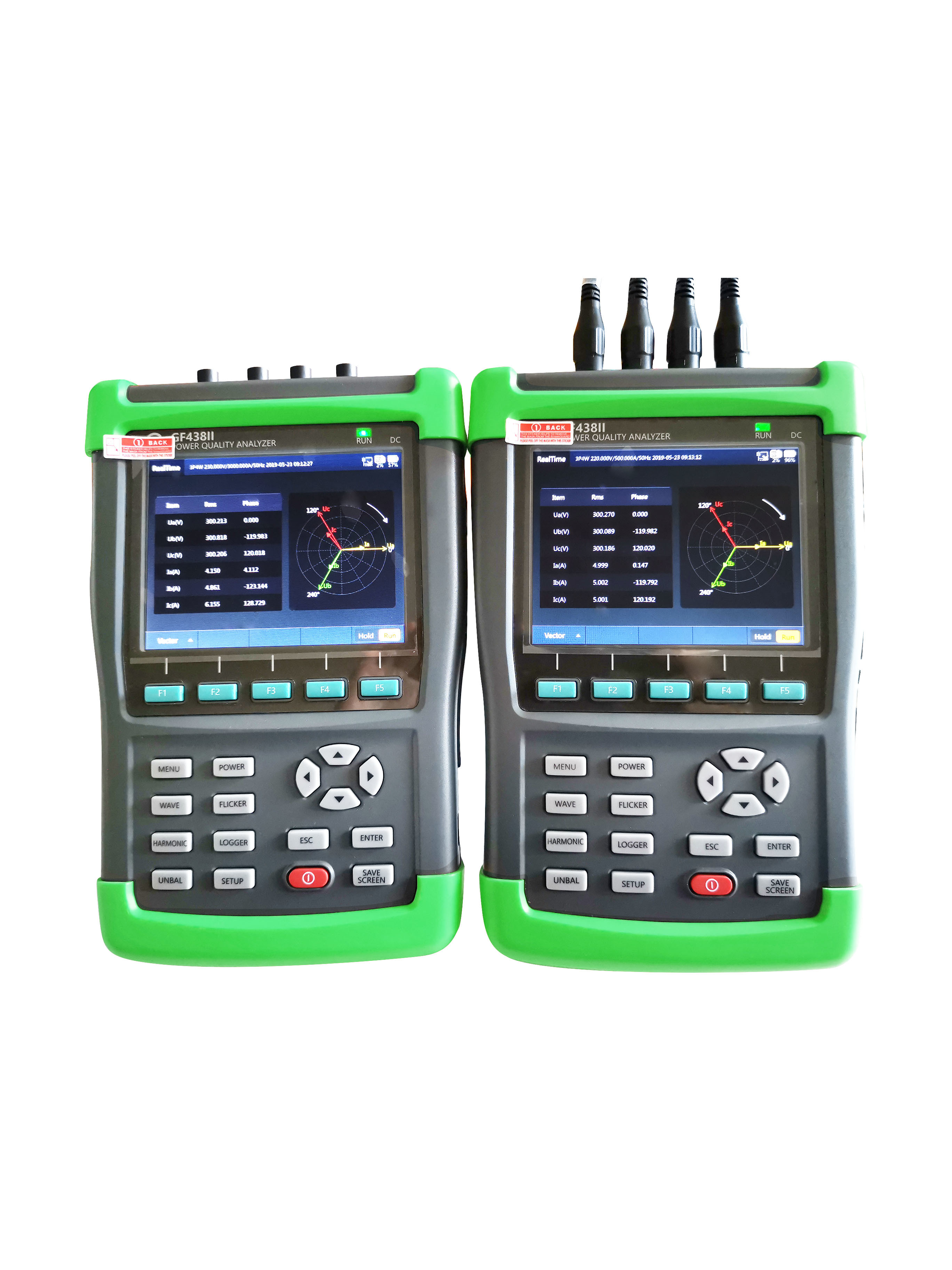

GF438II GFUVE HANDHELD THREE PHASE Power Quality and Energy Analyzer WITH 6000A CURRENT PROBE





GFUVE GF438II power quality analyzers can help you discover the state of health of your power systems. Designed to meet the needs to the intended measurement task, power quality analyzers help you beprepared for any power quality issues.The Power Quality analyzers that can monetize the cost of energy waste due to poor power quality. More powerful sampling options, greater accuracy and larger memory makes the GF438II better for longer term, higher resolution or more demanding power quality studies.



The GFUVE GF438II power quality analyzer enables you to identify issues and measure energy loss giving you specific insight into the amount of loss in dollars associated with things like effective power and withpoor power quality characteristics such as reactive power, unbalance, distortion, or neutral current.



GF438II handheld three phase power quality analyzer offer the best ability in power quality analysis, GF438II handheld power quality analyzer help locate, predict, prevent and troubleshoot power quality problems in three phase and single phase power distribution systems. Additionally, GFUVE patented energy loss algorithm, unified power measurement, measuring and counting energy losses due to harmonics and unbalance issues, allowing the user to pinpoint the origin of energy losses in the system.



The GFUVE GF438II power quality analyzers are designed for users who need to get to the solution of the power quality problem as quickly as possible so that they can minimize expensive downtime.

  • Measure multiple parameters simultaneously to quickly understand overall power quality health
  • View data as simple digital values or more detailed trend graphs that give you fast insight into changes over time, waveforms, and phasor diagrams
  • Organize data in tabular format so you can quickly correlate parameters like magnitude, duration, and time to the issues you are experiencing in your facility

FEATURES

  • 3s statistical interval, continuously record 1028h
  • Support multi-brand current transformer
  • Up to 32G data storage space
  • Record up to 461 power energy parameters simultaneously
  • Up to 10000 screenshots saved
  • Support periodic recording function
  • Up to 3.9M/s USB high-speed transfer
  • Recording wave


FUNCTIONS

  • Energy loss calculator: classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars (other local currencies available).
  • Power inverter efficiency: simultaneously measure AC output power for power electronics systems.
  • Power wave data capture: GF438II analyzers capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.).
  • Waveform capture: GF438II capture 50/60 cycles (50/60Hz) of each event that is detected in all modes, without set-up
  • Automatic transient GF438II analyzers capture 200 kHz waveform data on all phases simultaneously up to 1000V.
  • Fully class-A compliant: GF438II analyzers conduct tests according to the stringent international IEC 61000-4-30 class-A standard.
  • Mains signaling: GF438II analyzer measure interference from ripple control signals at specific frequencies.
  • Troubleshoot: analyze the trends using the cursors and zoom tools.
  • Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance.
  • Measure all three phases and neutral: with included four flexible current probes with enhanced thin flex designed to fit into the tightest places.
  • Automatic trending: every measurement is always automatically recorded, without any set-up.
  • System-monitor: ten power quality parameters on one screen according to EN50160 power quality standard
  • Logger function: configure for any test condition with memory for up to 600 parameters at user defined intervals.
  • View graphs and generate reports: with included analysis software.
  • Battery life: up to 5 hours operating time per charge on Li-ion battery pack.


PARAMETERS

Product Specifications
Volt Model Measurement Range Resolution Accuracy
Vrms (AC) 1 V to 1000 V phase to neutral 0.01 V ±0.1% of nominal voltage1
Vpk 1 Vpk to 2000 Vpk 1 V 5% of nominal voltage
Voltage Crest Factor (CF) 1.0 > 2.8 0.01 ±5%
Vrms½   0.1 V ±0.2% of nominal voltage
Vfund   0.1 V ±0.1% of nominal voltage
Amps (accuracy excluding clamp accuracy)
Amps (AC) FQ-RCTA02 1x 5 A to 6000 A 1 A ±0.5% ±5 counts
FQ-RCTA02 10x 0.5 A to 600 A 0.1 A ±0.5% ±5 counts
1mV/A 1x 5 A to 2000 A 1A ±0.5% ±5 counts
1mV/A 10x 0.5 A A to 200 A (AC only) 0.1 A ±0.5% ±5 counts
Apk FQ-RCTA02 8400 Apk 1 Arms ±5%
1mV/A 5500 Apk 1 Arms ±5%
A Crest Factor (CF) 1 to 10 0.01 ±5%
Amps½ FQ-RCTA02 1x 5 A to 6000 A 1 A ±1% ±10 counts
FQ-RCTA02 10x 0.5 A to 600 A 0.1 A ±1% ±10 counts
1mV/A 1x 5 A to 3000 A 1 A ±1% ±10 counts
1mV/A 10x 0.5 A A to 300 A (AC only) 0.1 A ±1% ±10 counts
Afund FQ-RCTA02 1x 5 A to 6000 A 1 A ±0.5% ±5 counts
FQ-RCTA02 10x 0.5 A to 600 A 0.1 A ±0.5% ±5 counts
1mV/A 1x 5 A to 3000 A 1 A ±0.5% ±5 counts
1mV/A 10x 0.5 A A to 300 A (AC only) 0.1 A ±0.5% ±5 counts
Hz
@ 50 Hz Nominal 45 Hz to 65.00 Hz 0.01 Hz ±0.01 Hz
@ 60 Hz Nominal 45 Hz to 65.00 Hz 0.01 Hz ±0.01 Hz
Power
Watts (VA, var) FQ-RCTA02 max 6000 MW 0.1 W to 1 MW ±1% ±10 counts
1 mV/A max 3000 MW 0.1 W to 1 MW ±1% ±10 counts
Power Factor (Cos j/DPF) 0 to 1 0.001 ±0.1% @ nominal load conditions
Energy
kWh (kVAh, kvarh) FQ-RCTA02 10x Depends on clamp scaling and V nominal ±1% ±10 counts
Energy Loss FQ-RCTA02 10x Depends on clamp scaling and V nominal ±1% ±10 counts Excluding line resistance accuracy
Harmonics
Harmonic Order (n) DC, 1 to 63 Grouping: Harmonic groups according to IEC 61000-4-7
Inter-Harmonic Order (n) OFF, 1 to 63 Grouping: Harmonic and Interharmonic subgroups according to IEC 61000-4-7
Volts % f 0.0% to 100% 0.1% ±0.1% ±n x 0.1%
r 0.0% to 100% 0.1% ±0.1% ±n x 0.4%
Absolute 0.0 to 1000 V 0.1 V ±1%1
THD 0.0% to 100% 0.1% ±0.5%
Amps % f 0.0% to 100% 0.1% ±0.1% ±n x 0.1%
r 0.0% to 100% 0.1% ±0.1% ±n x 0.4%
Absolute 0.0 to 600 A 0.1 A ±1% ±5 counts
THD 0.0% to 100% 0.1% ±0.5%
Watts % f or r 0.0% to 100% 0.1% ±n x 1%
Absolute Depends on clamp scaling and V nominal — ±1% ±n x 2% ±10 counts
THD 0.0% to 100% 0.1% ±3%
Phase Angle -360° to +0° 0.2° ±n x 0.2°
Flicker
Plt, Pst, Pst (1 min) Pinst 0.00 to 20.00 0.01 ±5%
Unbalance
Volts % 0.0% to 20.0% 0.1% ±0.1%
Amps % 0.0% to 20.0% 0.1% ±0.2%
Mains Signaling
Threshold Levels Threshold, limits and signaling duration is programable for two signaling frequencies — —
Signaling Frequency 60 Hz to 3000 Hz 0.1 Hz
Relative V % 0% to 100% 0.10% ±0.4%
Absolute V3s (3 second avg.) 0.0 V to 1000 V 0.1 V ±5% of nominal voltage
General Specifications
Case Design Rugged, shock proof with integrated protective holster Drip and dust proof IP65 according to IEC60529
Display

70/70/50/70 (Typ.)(CR ≥10) ( Left/ Right/ UP/Down)

Brightness: 200 cd/m 2 typ. using power adapter, 90 cd/m 2 typical using battery power Size: 112.8 x 84.6 mm  LCD Resolution: 640 x 480 pixels
Memory 32GB SD card
Real-Time Clock Time and date stamp for Trend mode, Transient display, System Monitor and event capture
Environmental
Operating Temperature -10°C ~ +50°C;
Storage Temperature -20°C ~ +60°C
Humidity -20°C ~ +60°C: less than 95% RH non-condensing
Maximum Operating Altitude Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V
Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V
Maximum storage altitude 12 km (40,000 ft)
Electro-Magnetic-Compatibility (EMC) EN 61326 (2005-12) for emission and immunity
Interfaces Mini-USB-B, Isolated USB port for PC connectivity SD card slot accessible behind instrument battery
Warranty Three years (parts and labor) on main instrument, one year on accessories
