Handheld Three Phase Power Quality Analyzer 0.1% Accuracy With 100A Current Clamp

Handheld Three Phase Power Quality Analyzer 0.1% Accuracy With 100A Current Clamp
Handheld Three Phase Power Quality Analyzer 0.1% Accuracy With 100A Current Clamp Handheld Three Phase Power Quality Analyzer 0.1% Accuracy With 100A Current Clamp Handheld Three Phase Power Quality Analyzer 0.1% Accuracy With 100A Current Clamp Handheld Three Phase Power Quality Analyzer 0.1% Accuracy With 100A Current Clamp Handheld Three Phase Power Quality Analyzer 0.1% Accuracy With 100A Current Clamp Handheld Three Phase Power Quality Analyzer 0.1% Accuracy With 100A Current Clamp
Basic Information
Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: CE, UL, ISO9001
Model Number: GF334
Minimum Order Quantity: 1SET
Price: 5000-8000USD/SET
Packaging Details: Standard Export Box
Delivery Time: 2-3weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500SETS
Get Best Price Contact Now
Name: Three Phase Power Quality Analyzer Application: Power System Or Harmonics Test
Usage: Power Energy Monitor Analyzer Accuracy: 0.1%
Harmonics: 2-64th Energy: 0.1%
Color: Blue And Yellow Voltage: 0-1200V
Current: 0-120A, 0-500A, 0-1000A, 0-3000A Frequency: 45-65Hz
Highlight:

power quality analyser

,

power harmonics analyzer

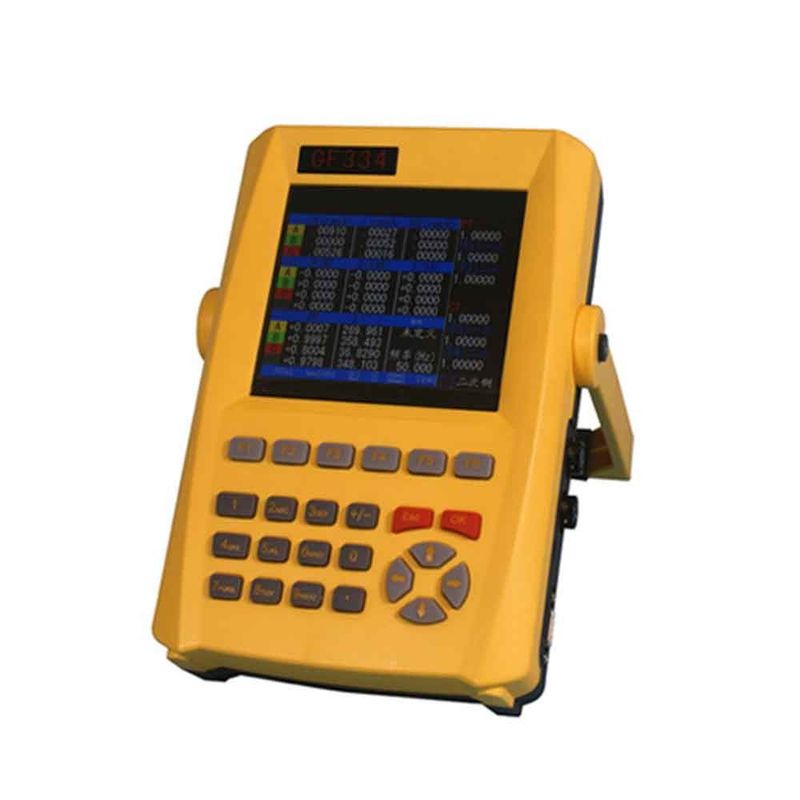

Handheld Three Phase Power Quality Analyzer With



100A Current Clamp





GF334 handheld three phase power quality analyzer with CT offer the best ability in power quality analysis, GF334 handheld power quality analyzer help locate, predict, prevent and troubleshoot power quality problems in three phase and single phase power distribution systems. Additionally, GFUVE patented energy loss algorithm, unified power measurement, measuring and counting energy losses due to harmonics and unbalance issues, allowing the user to pinpoint the origin of energy losses in the system.





APPLICATION





GF334 small size handheld harmonics power analyzer is suitable for power company, technical supervision department, industrial, mining, petroleum as well as chemical, home appliances and manufacturing enterprises.





FEATURES

  • Ultra-compact design, handheld, small size, light weight.
  • The usage of multi-channel power supply, AC power supply can also be rechargeable battery-powered machine.
  • High accuracy instrument, good stability and wide range of voltage monitoring 0-1200V, current 1mA - 20A.
  • It can be divided into direct current clamp measurements and precision measurements.
  • It can measure three phase voltage, current, active power, reactive power, power factor, frequency, phase, etc.
  • Showing the AC waveform, vector diagram and determining the 3P3W connection errors.
  • It can measure harmonics ration from 2nd to 64th and the harmonic analysis.
  • The measured data can record, query and upload print.
  • Instrument calibration by using software to facilitate the correction instrument variation.





FUNCTIONS



  • Measuring energy consumption values: the precise timing measurements of electrical equipment for short-term energy consumption; energy resolution; milli-watts; time resolution; milli-second; they are difficult to available for common instrument of power. The functions are used by pumping, cranes, air conditioning and other equipment in a work cycle connected power consumption.
  • The value of the measurement process: it can be recorded and tested continuously of voltage, current, active power, reactive power and other electrical parameter values and curves in a dynamic process and graphically display.
  • To measure the instantaneous values - including the exchange parameters: U, I, P, Q, PF, phase angle, frequency, harmonics, etc.
  • Measuring harmonics: measure/display voltage and current waveforms and harmonic bar graph.
  • Calibrator meter: load calibration of various single phase and three phase energy meters.
  • Vector analysis: based on the voltage, current and phase error, display vector graphics.





PARAMETERS

Items Range Effective resolution Accuracy1 Accuracy2 Remarks
Voltage 0-1200V 0.001V 0.1% 0.05% 2 ranges
Current 0-20A 0.001A 0.1% 0.05% 3 ranges
Clamp-on 0.01-100A 0.01A 0.15% 0.15% Option(2)
Frequency 45-65Hz 0.001Hz 0.01Hz 0.002Hz 5 bit display
Active power 0 to ±Umax x Imax 0.01W 0.5% 0.2% 5 bit display
Reactive power 0 to ±Umax x Imax 0.01Var 1% 0.5% 5 bit display
Apparent power 0 to ±Umax x Imax 0.01VA 1% 0.5% 5 bit display
Active energy 　 　 0.5% 0.2% 　
Reactive energy 　 　 1% 0.5% 　
Harmonic 2nd-64th 　 0.5% 0.2% 　
Power factor 0 to ±0.9999 0.0001 ±0.001 ±0.0005 5 bit display
Phase 0-359.999° 0.005° ±0.05° ±0.02° 6 bit display
(1) Directly test
(2) Clamp-on 500A,3000A,5000A is optional.
Electrical parameters
Power supply One-phase power supply (85-265VAC/45-70Hz)
Lithium battery, 5000mAh
Communication port RS232
Energy constant 3600imp/kWh, 360000imp/kWhx4
Frequency Influence ≤20ppm/Hz
Pulse Interface TTL energyx6
Mechanical parameters
Main machine (L×W×H) (mm) 240×157×60
Weight (kg) 1.5
Carrier dimension (L×W×H) (mm) 470×380×220
Carrier weight (kg) 10.6 (Including three clamp-on (100A), wires and software)
Environmental conditions　　　　
Environment -10 to +55°C, 15-85%RHD
Altitude (m) -10 to 3500
Temperature -20°C to 65°C
Temperature ≤25ppm/°C (U/I), ≤50ppm/°C (others)
