Name: Electric Meter Calibration Equipment With Printer Accuracy 0.05 For Check Of Electricity Meters Accuracy: 0.05%
Power Supply: 220V ± 10% Or 110V ± 10%, 50/60Hz ± 2Hz Host Weight: 3mm
Communication Port: RS232 Resolution: 6”TFT (640×480)
Highlight:

electrical test meter calibration

,

energy meter calibration equipment



Electric Meter Calibration Equipment With Printer Accuracy 0.05 for Check of Electricity Meters

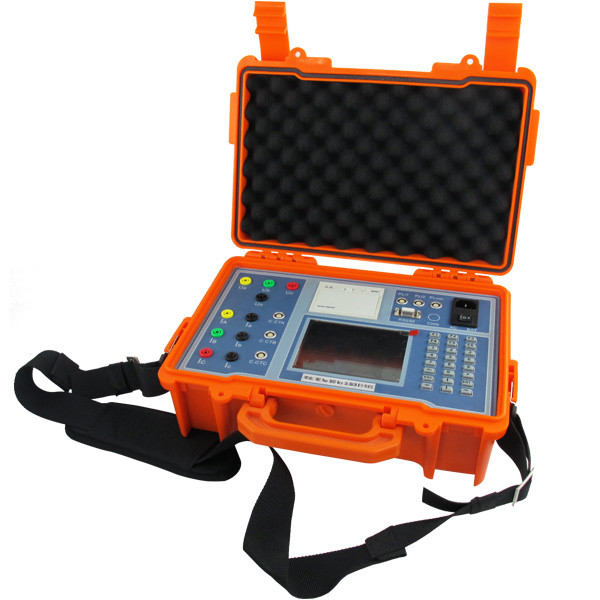

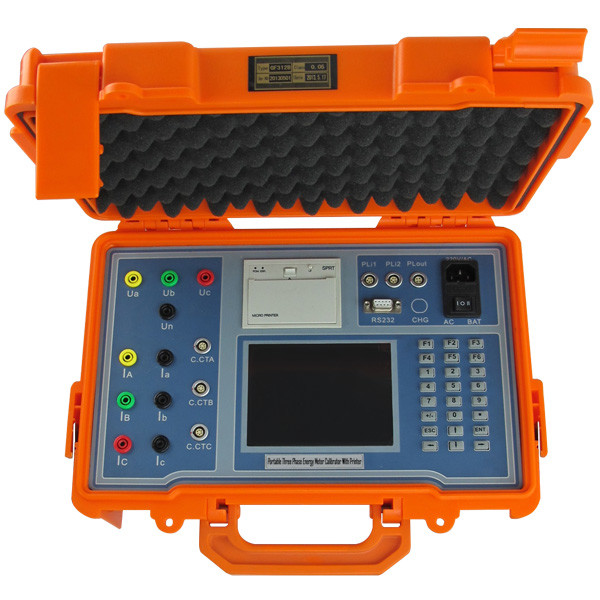

GF312B portable three phase Energy Meter Calibration Equipment with printer is used to calibrate three phase, single phase, active and reactive watt meters. And it also can be used as voltage, current and power meter to measure AC parameters of three phase power line.It can measure wave distortion factor and 2nd to 63th harmonic wave. it is high precision 0.05%, measurement current 0-24A directly, 0-120A or 0-3000A with clamp on ct. 100A clamp on ct has software compensation, the precision can reach 0.05%.







Application



The devices used to calibrate electricity meters must be routinely verified themselves. That’s the only way to protect consumers. Laborelec’s working standards are well suited to the task. We can carry out calibration on your site, minimising disruption to your calibration routine.

Laborary has a fully equipped calibration equipment with the most accurate energy standard. It can furnish an extensive accreditation portfolio that is recognised internationally.



FEATURES

  • Three phase active or reactive electricity energy meter
  • Calibrate three phase, single phase, active or reactive meter error
  • Measure U(voltage) of three phase or single phase
  • 4Measure I(current) of three phase or single phase
  • Measure active power of three phase or single phase
  • Measure reactive power of three phase or single phase
  • Measure apparent power of three phase or single phase
  • Measure power factor of three phase or single phase
  • Measure phase angle between voltage and current
  • Measure frequency of power line
  • Display vector diagram
  • Display waveform of U and I
  • Analyze and display content of harmonic of U and I
  • Store and check measured data
  • Optional 5A, 20A, 100A, 500A, 1000A, 2000A, 3000A current clamp
  • Measure CT variable ratio
  • Print the data of measurement on site





PARAMETERS



Electrical parameters 　
Accuracy class 0.05, 0.1%, 0.2%
Power supply 220V ± 10% or 110V ± 10%, 50/60Hz ± 2Hz
Test Voltage 　
Range 0V-600V
Error ±0.05% (30V-600V)
±0.1% (5V-30V)
Harmonic 2nd-63st
Test Current 　
Range (direct connection) 20mA-20A
Error (direct connection) ±0.05% (100mA-20A)
±0.1% (20mA-100mA)
Range (Clamp CT) 10mA-3000A
Error (Clamp CT) ±0.2% (100mA-3000A)
±0.5% (10mA-100mA)
Harmonic 2nd-63st
Power measure error 　
Active power (direct connection) ±0.05% (0.1A-20A)
±0.1% (0.02A-0.1A)
Reactive power (direct connection) ±0.1% (0.1A-20A)
Energy measure error 　
Active energy (direct connection) ±0.05% (0.1A-20A)
±0.1% (0.02A-0.1A)
Reactive energy (direct connection) ±0.1% (0.1A-20A)
Phase angle 　
Range 0o ~ 360o
Resolution 0.01o
Error ±0.05o
Frequency 　
Range 45Hz-65Hz
Resolution 0.001Hz
Accuracy 0.005Hz
Power factor 　
Range -1 ~ 0 ~ 1
Resolution 0.0001
Error 0. 0005
Pulse output 　
Energy constant 180000imp/kWh, 1800imp/kWh, 18imp/kWh
Pulse ratio 1:1
Output level 5V
Pulse input 　
Input channel 1
Input level 5-24V
Input frequency Max. 2MHz
Display 　
Resolution 6”TFT (640×480)
Function 　
Vector diagram Yes
Waveform Yes
Energy accumulation Yes
Communication port RS232
Communication with PC Yes
Mechanical parameters 　
Dimensions (W×H×D) (mm) 390×200×160
Host Weight (mm) 3
Weight (including Accessories 3pcs 100A clamp CT) (kg) 12
Environmental conditions 　
Ambient temperature -10°C to 40°C
Relative humidity 30%-85%
