Lab Portable Meter Test Equipment High Accuracy With Automatic Testing PC Software

Basic Information

Place of Origin:	BEIJING CHINA
Brand Name:	GFUVE
Certification:	CE, ISO9001
Model Number:	GF302D-20A

Minimum Order Quantity:	1SET
Packaging Details:	Standard Export Wooden Box
Delivery Time:	2weeks
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200sets/month

Get Best Price Contact Now

Name:	Watthour Meter Test Equipment	Application:	Electric Meter & Power Meter Test
Usage:	Lab And Factory	Accuracy:	0.05%
Function:	0.05% Voltage Source & Current Source	Current Output:	0-120A
Voltage Output:	0-500V	Frequency:	40-70Hz
Phase Angle:	0-360.00	Harmonics:	2-51st
Highlight:	electric meter testing equipment , portable test equipment

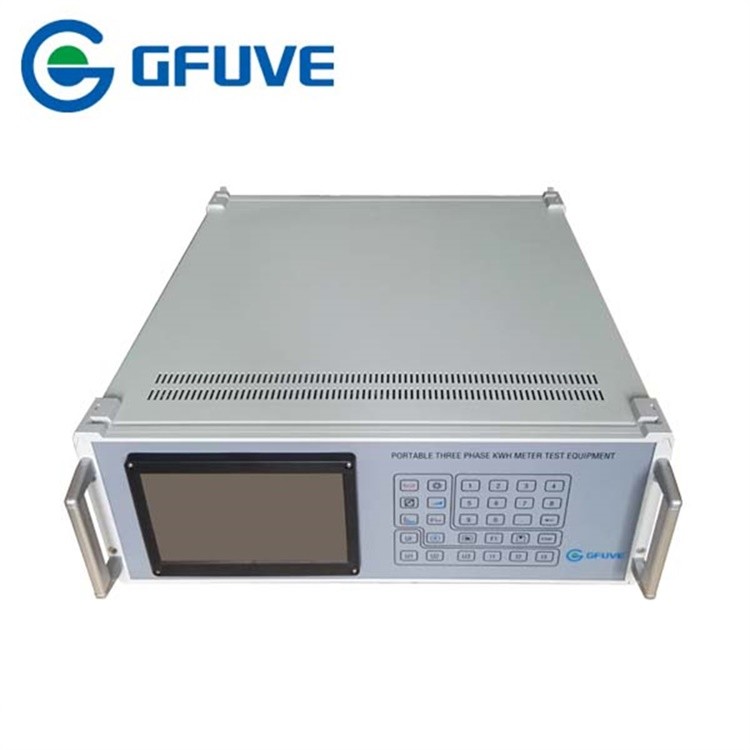

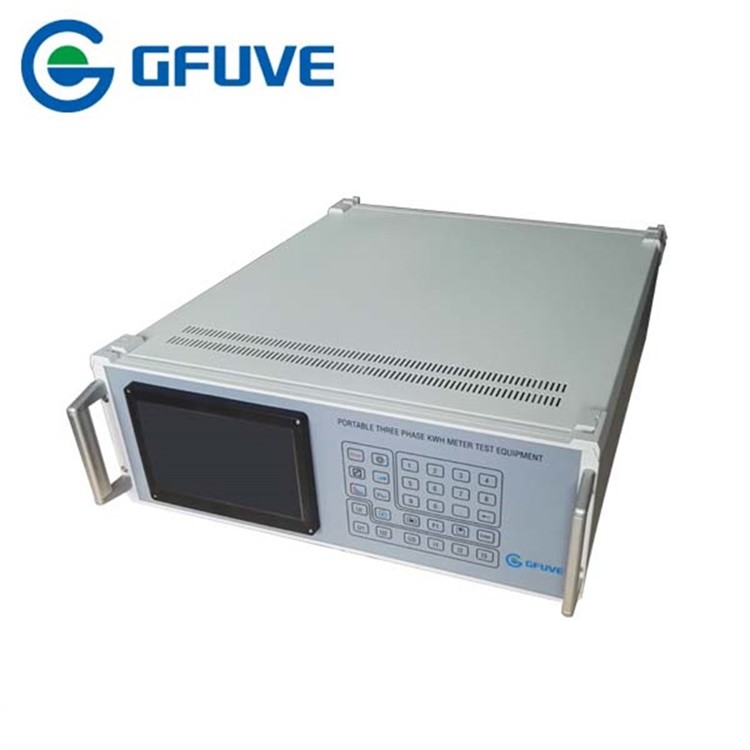

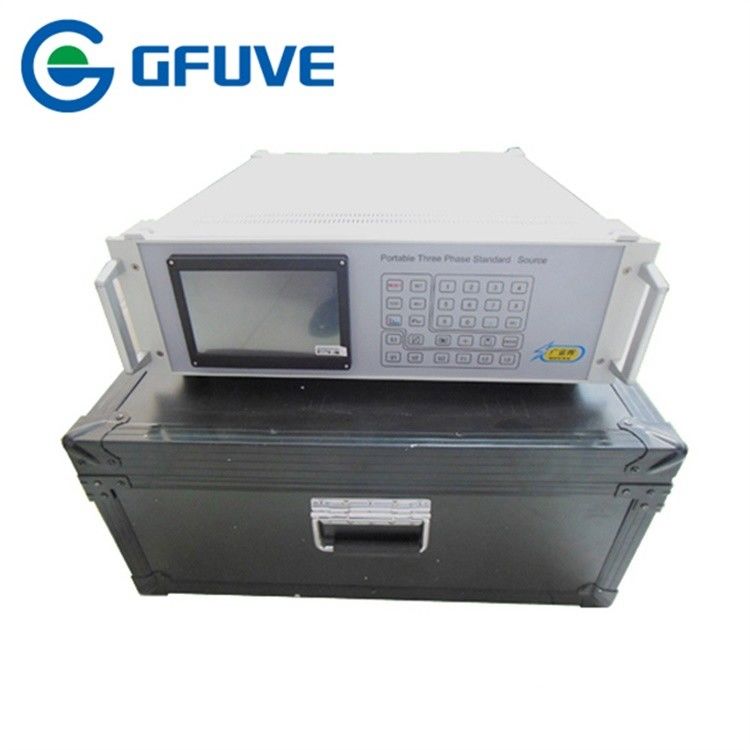

Three Phase Portable watthour meter test equipment with Automatic testing PC software

The GF302D is a powerful and Three Phase Portable watthour meter test equipment . All test values are generated absolutely synthetically with a high degree of accuracy, low phase shift and stability. The test eqipment is available in 12 A, 24A or 120 A.
The GF302D Three Phase Portable watthour meter test equipment is a lightweight and portable three phase current and voltage source based on newest technology and serves for solving this problem by simulating the required load conditions. Operation is performed by integrated 7“ touch screen or via keyboards.

Watthour meter testing. With the testing requirements of today’s advanced systems, it is essential to take advantage of the new technological features of the Multi-Amp watthour meter test equipment. No matter what size your operation, you will find that Megger offers a range of instruments for watthour meter testing from portable meter testers.

APPLICATION

It is suitable for power department, measuring department, quality control department, research units, and institutions of higher learning, and electric energy meter, power distribution terminals, power supply management, load control, power quality, reactive power compensation device and the production of enterprise etc.

FEATURES

Min current output 1mA
Predefined multiple load points
Reference meter and power source integration
User friendly menu guided operation
Easy verification and analysis of meter installations
Automatic operation without need of an external PC
Generation of harmonics in current and voltage up to the 51th
Verification of the load conditions on metering installation
Verification of the energy registration
Automatic testing mechanical meter and electronic meter error
Voltage, current, frequency, phase angle, power factor, harmonics can be regulated
1P2W, 1P3W, 3P3W, 3P4W can be set
4 quadrant measurement

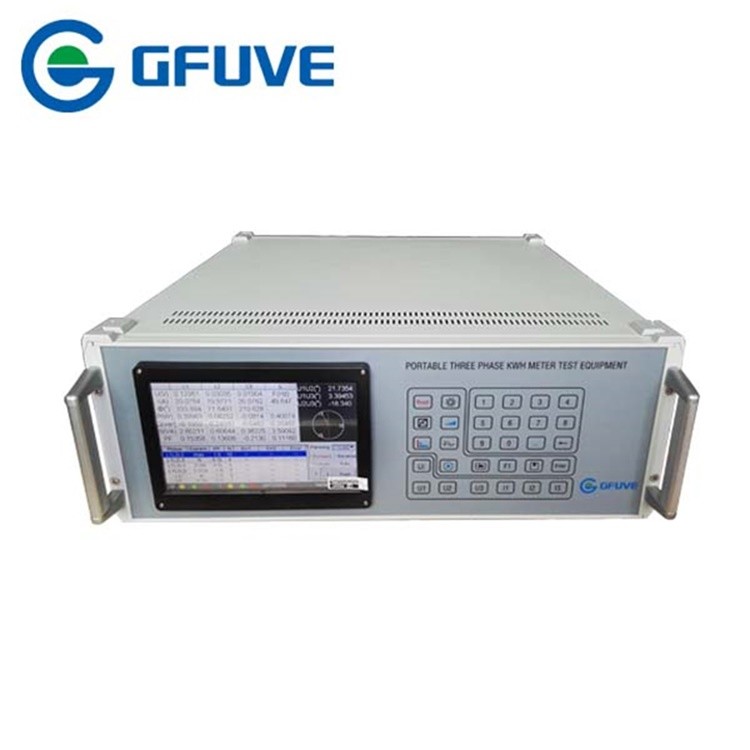

Vector diagram display and phase sequence indication on integrated colored screen
Especially configured USB stick for storage of customer data and measurement results

PARAMETERS

Electrical parameters
Accuracy	0.02%, 0.05%, 0.1%
Power Supply	Single phase AC 85-265V, frequency 50/60Hz.
AC Voltage Output
Range(U1,U2,U3)	57.7V, 100V, 220V, 380V or 69.3V, 120V, 240V, 480V( optional); max 500V
Adjustment range	(0-120)%RG⁽¹⁾
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	0.01%/120s
Distortion	0.2% (Non-capacitive load)
Output load	each phase 25VA
Accuracy	0.05%RG or 0.02%RG
AC Current Output
Range(I1,I2,I3)	200mA, 1A, 5A, 20A; max 25A
Adjustment range	(0-120)%RG
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	<0.01%/120s
Distortion	≤0.2% (Non-capacitive load)
Output load	25VA
Accuracy	0.05%RG or 0.02%RG
Power Output
Active power output stability	<0.01%RG/120s
Reactive power output stability	<0.02%RG/120s
Active power measuring accuracy	0.05%RG or 0.02%RG
Reactive power measuring accuracy	0.1%RG
Phase Output
Output adjustment range	0°-359.999°
Output adjustment fineness	10, 1, 0.1, 0.01 as optional.
Resolution	0.01°
Accuracy	0.02°
Power Factor
Adjustment range	-1 ~ 0 ~ 1
Resolution	0.0001
Measurement accuracy	0. 0005
Frequency Output
Adjustment range	40Hz-70Hz
Output adjustment fineness	5Hz, 1Hz, 0.1Hz, 0.01Hz as optional.
Resolution	0.001Hz
Accuracy	0.002Hz
Voltage /Current/Harmonic Setting Output
Harmonic number	2-51times
Harmonic content	0-40%
Harmonic phase	0-359.99
Harmonic setting accuracy	(10%±0.1%)RD⁽²⁾
Power Energy Measurement Error
Active power energy	0.05%RG or 0.02%RG
Reactive power energy	0.1%RG
Power Pulse Output
Power pulse type	active pulse, reactive pulse
Active power pulse output	5V, 10mA
Power Pulse Input
Energy pulse type	support active and reactive pulse, the highest frequency power pulse input is 180K.
Communication Port
Communication Port	RS232, USB2.0
Safety
Isolation protection	IEC 61010-1:2001
Measurement Category	300 V CAT III, 600 V CAT II
Degree of protection	IP20
Declaration of conformity	CE certified
Mechanical parameters
Dimensions (W×D×H) (mm)	445x460x158
Weight (kg)	18
(1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output.
