NAME: PRIMARY CURRENT INJECTION TEST SET FUNCTION: TEST CURRENT TRANSFORMER
RANGE: 0-1100A ACCURACY: 0.5%

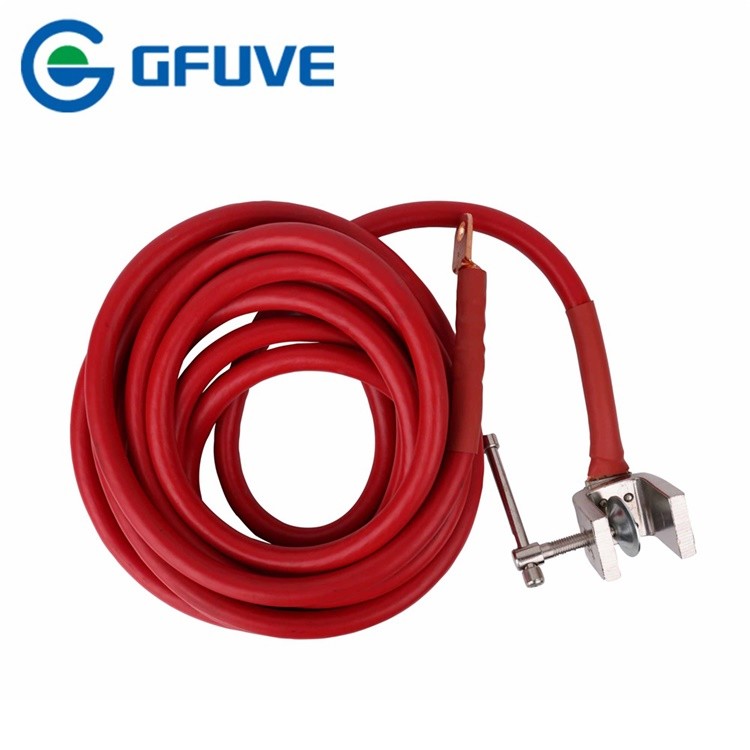

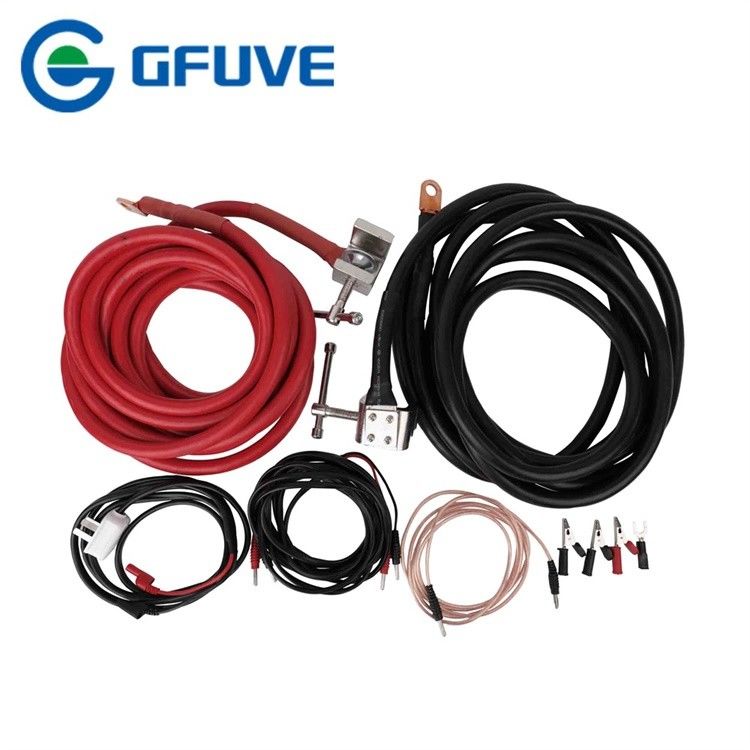

TIME: 0-999.99 1000A CABLE LENGTH: 6M
WEIGHT: 25KG CAPICITY: 5KVA
Highlight:

primary current injection test equipment

,

primary current injection test system

TEST-901 LARGE CURRENT 1000A PRIMARY CURRENT INJECTION TEST SET FOR CURRENT TRANSFORMER



LARGE CURRENT 1000A PRIMARY CURRENT INJECTION TEST SET FOR CURRENT TRANSFORMER

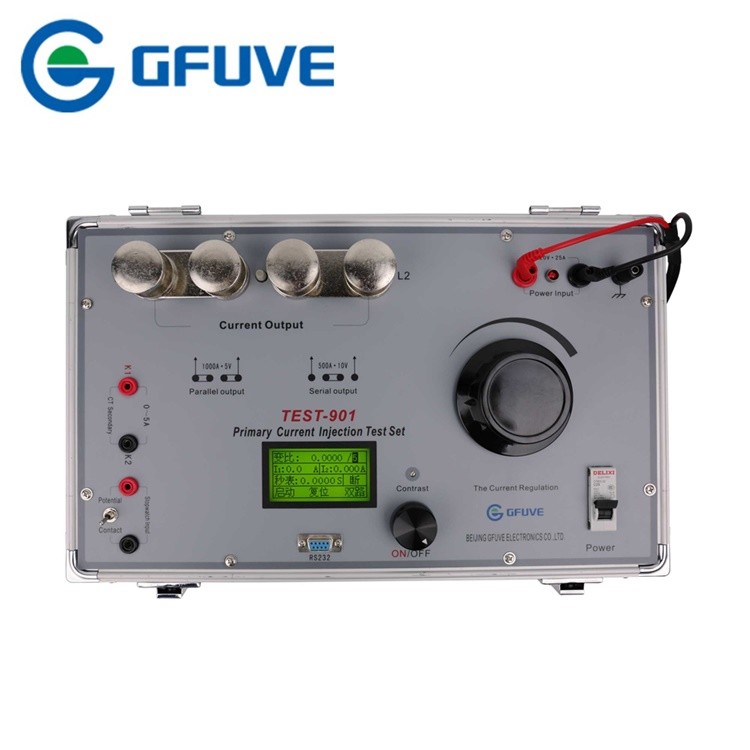

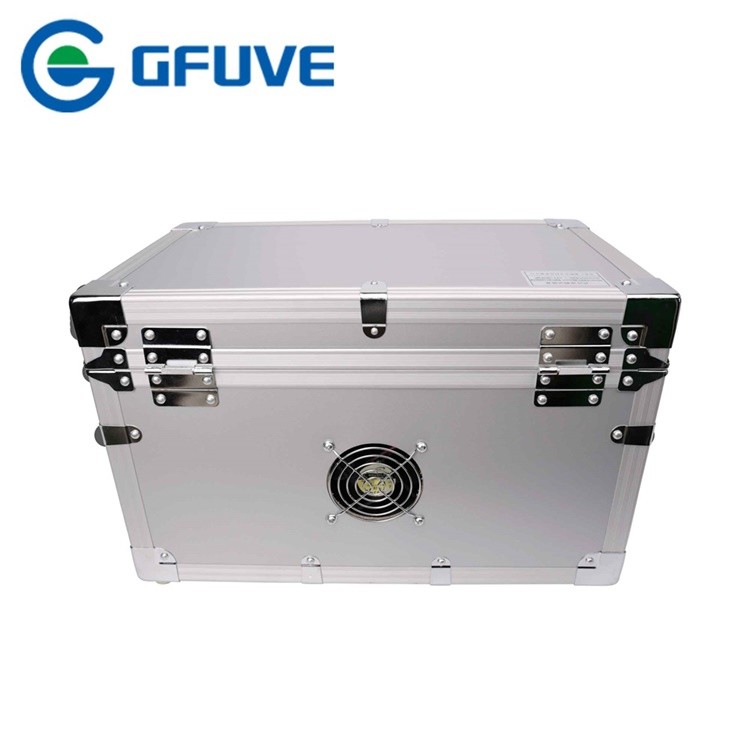

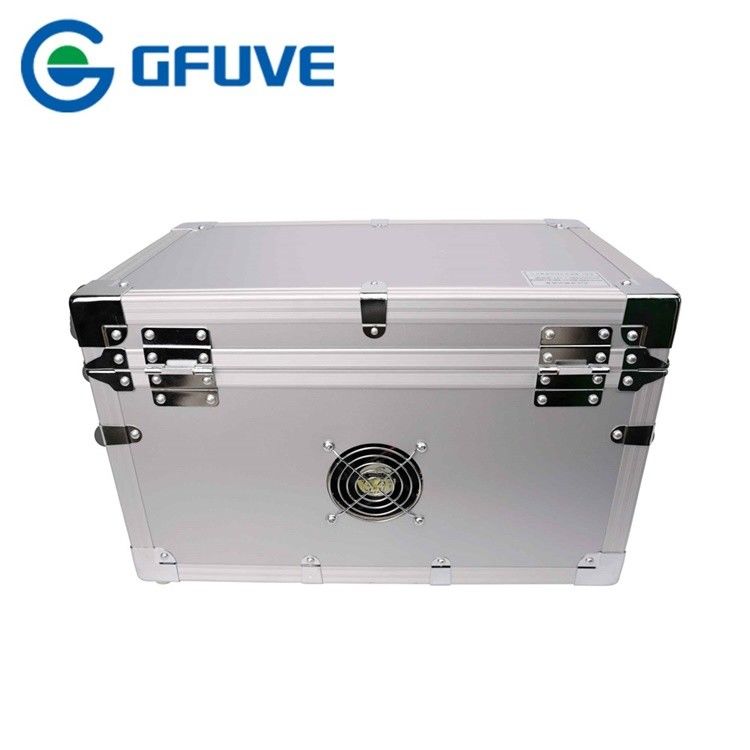

TEST-901 1000A primary current injection test set adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with LCD display and current meter; it can show primary current value, second current value, turn ratio and the action time. Packing is used as aluminum alloy body with PC panel. TEST-901 is mainly applied to CT turn ratio testing in the power system and contact resistance test which need large current.

Primary current injection testing is utilised in high current/high voltage scenarios found at large electrical installations such as substations. A large current (between 100A and 20,000A depending on system specifications and test requirements) is injected directly on the primary side of the electrical system such as a circuit breaker.
Primary Current Injection Test is useful for high voltage and high current substations or circuits. It is simply flowing of rated current in the circuit being tested.
Primary current injection test system. This powerful test system is designed for primary injection testing of protective relay equipment and circuit breakers. It is also used to test the turns ratio of current transformers and for other applications that require high variable currents. The system consists of a control unit and a current unit.

Large Current 1000a Primary Injection Test Equipment With Pc Panel 0.5% Accuracy 0



PARAMETERS

Electrical parameters　
Accuracy ±0.5%
Power Supply(AC) 220V±10%·25A, 50Hz/60Hz or
110V±10%·50A, 50Hz/60Hz
Current Output (AC) 1000A·5V or 500A·10V
Capacity 5KVA
The current output waveform distortion ≤5%
Dual protection overload electronic protection and software protection
Primary current　
Range 0-1100A
Resolution 0.1A
Accuracy <0.5%
Secondary measurement　
Range 0-6A
Resolution 0.001A
Accuracy <0.5%
Current duration　
1000A range 1000A 2-3minutes
500A 3-6minutes
500A range 500A 2-3minutes
With timer
Range 0.0001～999.99S
Resolution 0.001S
Accuracy <0.5%±5 words
Mechanical parameters　
Dimensions (W×D×H) (mm) 430×260×260
Weight(kg) 25
Environmental conditions　
Temperature -10°C to 40°C
Relative humidity ≤80%

SELECTION GUIDE

Model ACCU
RACY		 Primary
current		 AMMETER
(0-6A)		 TIMER POWER INJECTION CURRENT TIME DIMENSION(W×D×H)(mm) WEIGHT REMARK
TEST-901 0.5% 0-1100A YES YES 5KVA 1000A: 2-3min;
500A:3-6min		 430×260×260 25KG Integrated structure
TEST-902 0.5% 0-2200A YES OPTIONAL 12KVA 2000A:2-3min;
1000A:3-6min		 360×300×295 and 320×300×300 35KG+15KG Fission structure
TEST-903 0.5% 0-3300A YES OPTIONAL 15KVA 3000A:2-3min;
1500A:3-6min		 380×350×360 and 340×290×420 48KG+42KG Fission structure
TEST-905 0.5% 0-5500A YES OPTIONAL 25KVA 5000A:2-3min;
2500A:3-6min		 430×430×445 and 550×450×600 68KG+55KG Fission structure
