Medium Ampere Inductive Current Clamp , Current Clamp Probe 2.5 Meter Cable

Basic Information

Place of Origin:	China
Brand Name:	GFUVE
Certification:	CE UL
Model Number:	Q125-1

Minimum Order Quantity:	1 PC
Price:	Negotiable
Packaging Details:	Export Carton Box
Delivery Time:	Within 7 Days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	5000 pieces per month

Get Best Price Contact Now

Name:	Inductive Current Clamp On Laboratory Clamp For Medium Ampere	Accuracy:	0.2%, 0.5%
Output:	2.5 Meter Cable With D01 Connector	Secondary Current:	0 - 5A AC (customized)
Max. Voltage Not Insulated Conductors:	600V	Weight (g):	1200
Highlight:	inductive amp probe , inductive current probe

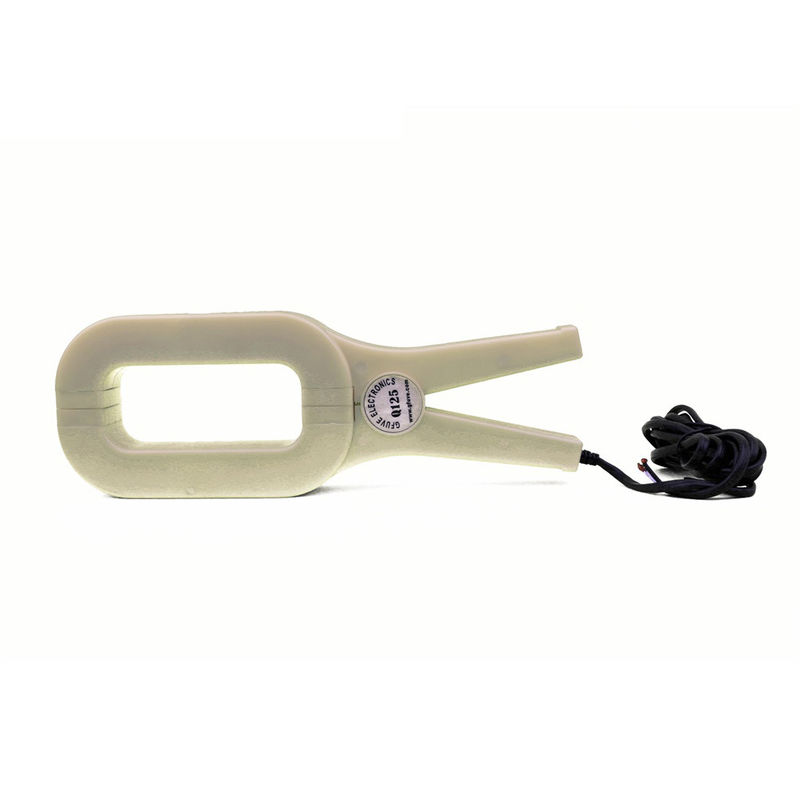

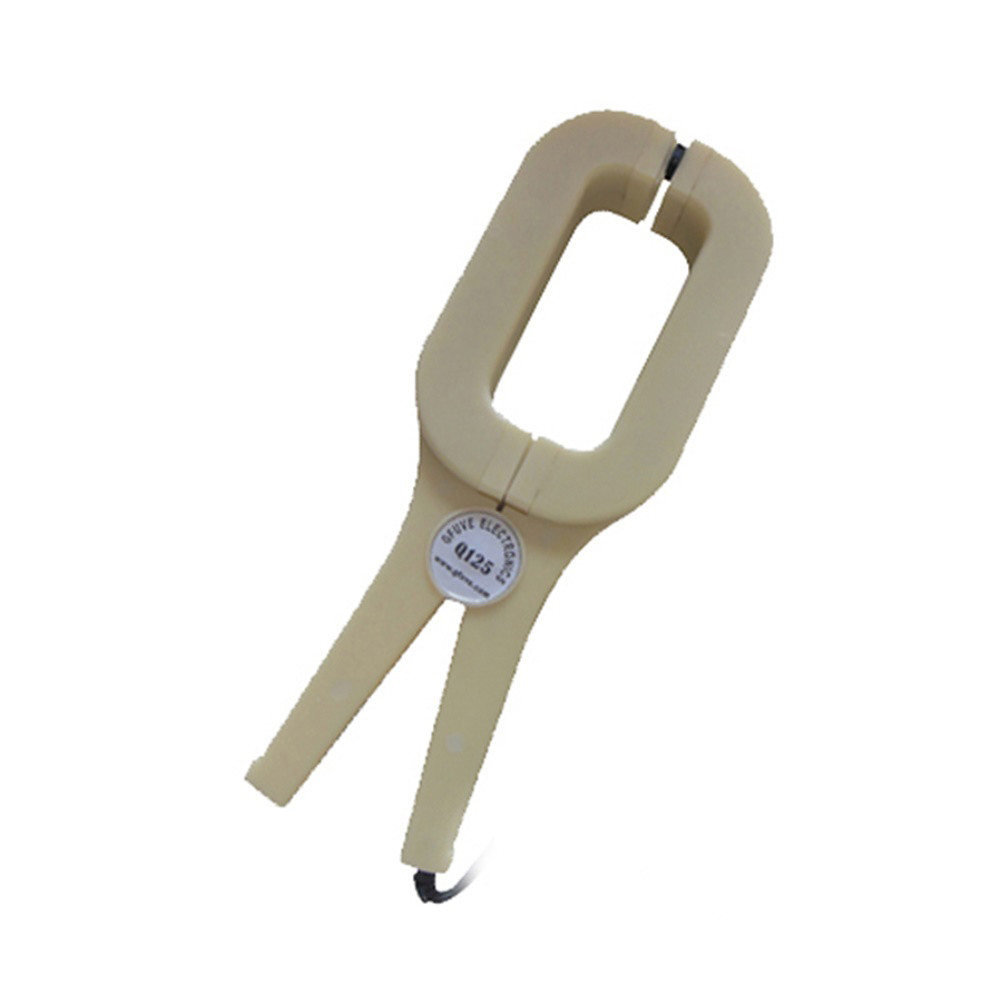

Inductive Current Clamp on Laboratory Clamp for Medium Ampere

Introduction

The model Q125 current clamp on measuring instrument can be used for a current vector for the copper bar or the power aluminum bus bar on-line detection.

In electrical and electronic engineering, a current clamp. current probe is an electrical device having jaws which open to allow clamping around an electrical conductor. This allows measurement of the current in a conductor without the need to make physical contact with it, or to disconnect it for insertion through the probe.

Applications

1. Electric energy meter calibrator (on site)

2. Double clamp type ground resistance tester

3. Double clamp type phase volt-ampere meter

4. Digital multi-meter

5. Multi-function energy meter

6. Oscilloscope

7. Power quality analyzer

8. Matched instruments

9. Calibration instrument on site

Parameter

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.2%, 0.5%, 1%
Primary current	0 - 3000A AC
Secondary current	0 - 5A AC (customized)
Max. Cont. Input current	3600A
Over voltage category	CAT III 600 V
Output signal (AC current)	500mA,1A,5A AC at nominal input current
Electrical parameters - continued
Output signal (AC voltage)	333mV,500mV,1V,5V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	116 x 327 x 35
Weight (g)	1200
Holding wire diameter (mm)	φ120 x 50
Max. jaw opening (mm)	50
Jaw color	White
Material	PC+ABS+Polycarbonate, UL94 V0
