One Phase Electric Meter Calibration Equipment , Test Instrument Calibration 40 -70Hz

Basic Information

Place of Origin:	China
Brand Name:	GFUVE
Certification:	ISO
Model Number:	GF102

Minimum Order Quantity:	1 Pieces
Price:	Negotiable
Packaging Details:	Standard Export Wooden Box
Delivery Time:	3 - 7 Days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	500 Pieces Per Month

Get Best Price Contact Now

Ters Accuracy Class:	0.05%, 0.1%	Power Supply:	One Phase AC 100-265V, Frequency 50/60Hz.
AC Voltage Output Range:	57.7V, 100V, 220V, 380V; Max 500V	AC Current Output Range:	200mA, 1A, 5A, 20A, 100A; Max 120A
Frequency Output Adjustment Range:	40Hz-70Hz	Active Power Pulse Output:	5V,10mA
Highlight:	electrical test meter calibration , electrical test equipment calibration

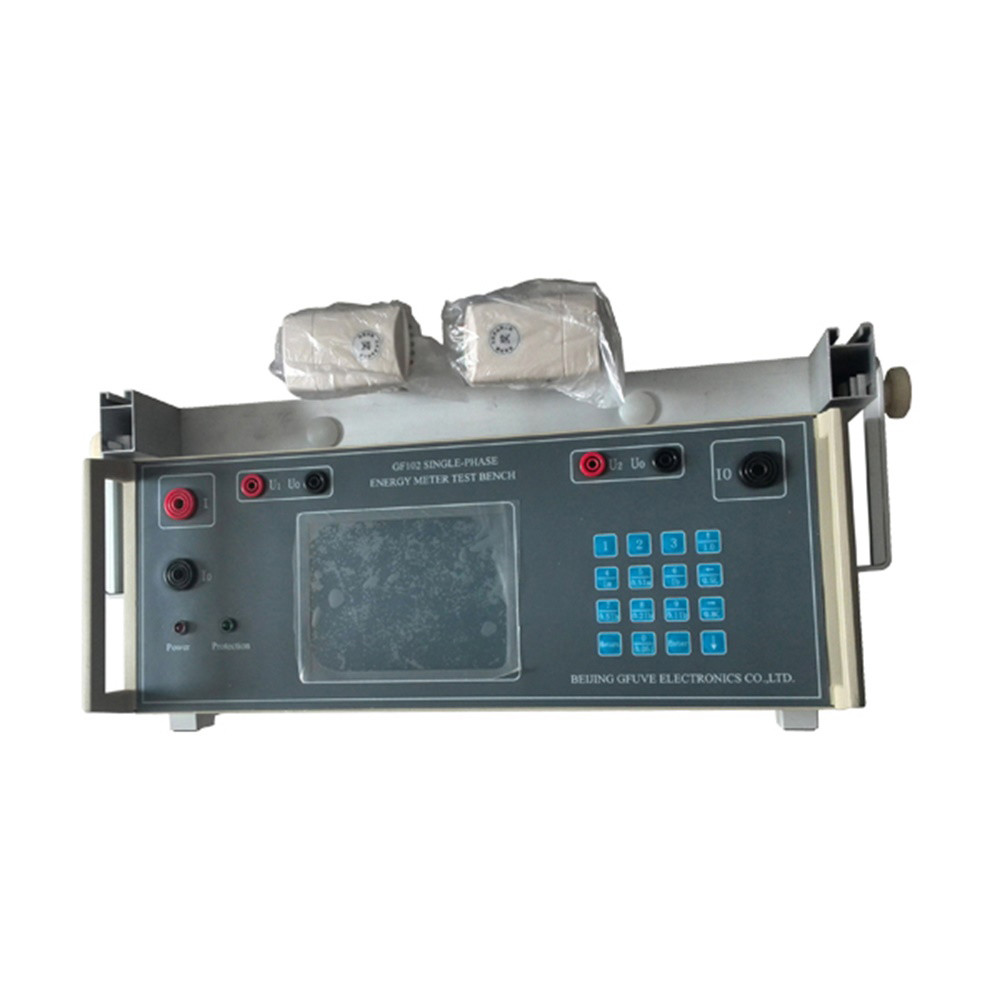

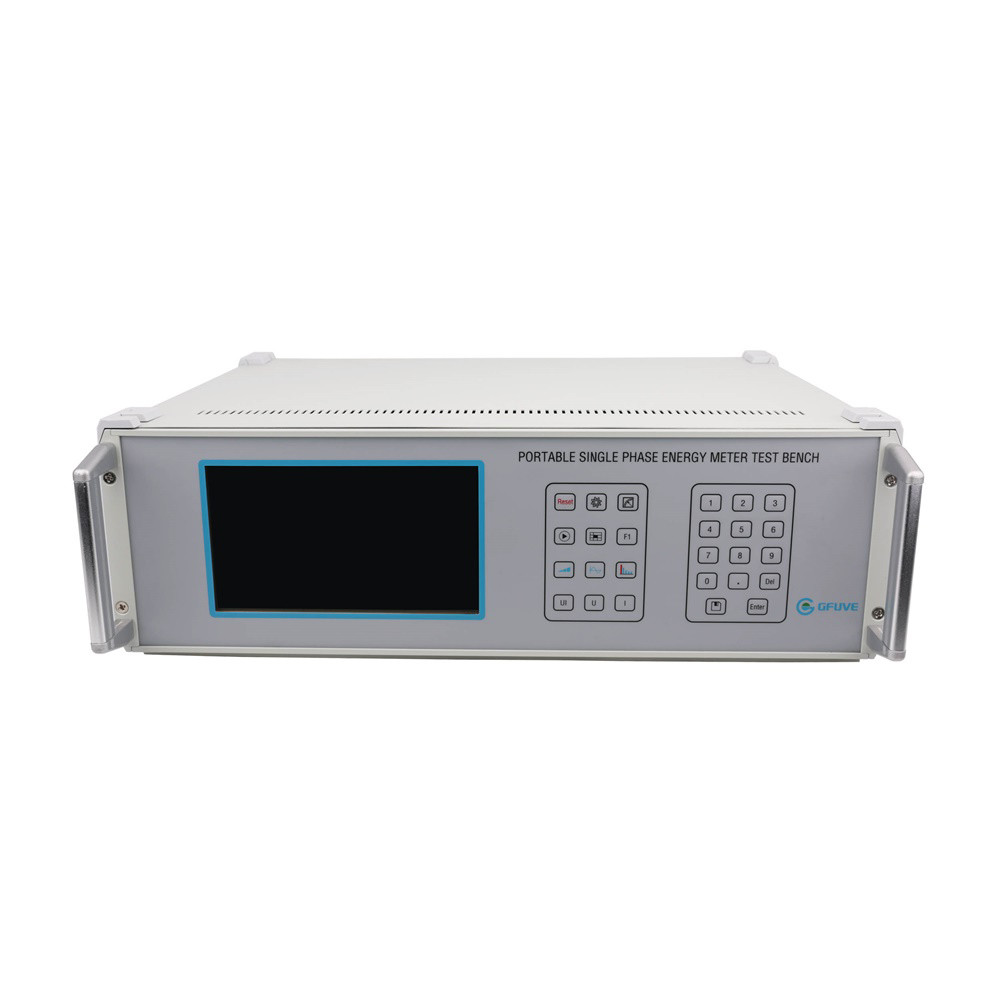

Portable Single Phase Energy Meter Test Equipment

GF102 portable single phase energy meter testing bench used to test single phase energy meter. Adopt mature signal synthetic and power amplifier technology, high precision voltage and current output. Widely used in lab and field, and then as single phase standard source.

Parameters

Electrical parameters
Accuracy class	0.05%, 0.1%
Power Supply	One Phase AC 100-265V, frequency 50/60Hz.
AC Voltage Output
Range	57.7V, 100V, 220V, 380V; max 500V
Adjustment range	(0-120)%RG⁽¹⁾
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	0.01%/120s
Distortion	0.2% (Non-capacitive load)
Output load	max 25VA
Measuring accuracy	0.05%RG
AC Current Output
Range	200mA, 1A, 5A, 20A, 60A(100A) optional; max 120A
Adjustment range	(0-120)%RG
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	<0.01%/120s
Distortion	≤0.2% (Non-capacitive load)
Output load	max 50VA
Accuracy	0.05%RG
Power Output
Active power output stability	<0.01%RG/120s
Reactive power output stability	<0.02%RG/120s
Active power measuring accuracy	0.05%RG
Reactive power measuring accuracy	0.1%RG
Phase Output
Output adjustment range	0°-359.999°
Output adjustment fineness	10, 1, 0.1, 0.01 as optional.
Resolution	0.01°
Accuracy	0.05°
Power Factor
Adjustment range	-1 ~ 0 ~ 1
Resolution	0.0001
Measurement accuracy	0. 0005
Frequency Output
Adjustment range	40Hz-70Hz
Output adjustment fineness	5Hz, 1Hz, 0.1Hz, 0.01Hz as optional.
Resolution	0.001Hz
Accuracy	0.005Hz
Voltage /Current/Harmonic Setting
Harmonic number	2-51times
Harmonic content	0-40%
Harmonic phase	0-359.99
Harmonic setting accuracy	(10%±0.1%)RD⁽²⁾
Power Energy Measurement Error
Active power energy	0.05%RG
Reactive power energy	0.1%RG
Power Pulse Output
Power pulse type	active pulse, reactive pulse
Active power pulse output	5V, 10mA
Power Pulse Input
Energy pulse type	support active and reactive pulse, the highest frequency power pulse input is 180K.
Energy pulse type
Mechanical parameters
Dimensions (W×D×H) (mm)	455x440x150
Weight (kg)	12
(1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output.
