Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp

Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp
Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp
Basic Information
Place of Origin: CHINA
Brand Name: GFUVE
Certification: CNAS
Model Number: GF312B
Minimum Order Quantity: 1set
Price: 9858
Packaging Details: Wooden package
Delivery Time: 7 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5SETs/week
Get Best Price Contact Now
Accuracy Class: 0.05%,0.1%,0.2% Power Supply: 220V±10% Or 110V±10%,50/60Hz
Voltage Test Range: 0-600V Current Test Range: 20mA-20A(with CT 10mA-3000A)
Phase Angle: 0°~360° Power Factor: -1~0~+1
Pulse: Input & Output Display: 6"TFT
Communication Port: RS232 Connection: 1P2W 1P3W 3P3W 3P4W
Product Name: Portable Energy Meter Calibrator
Highlight:

electrical test equipment calibration

,

energy meter calibration equipment

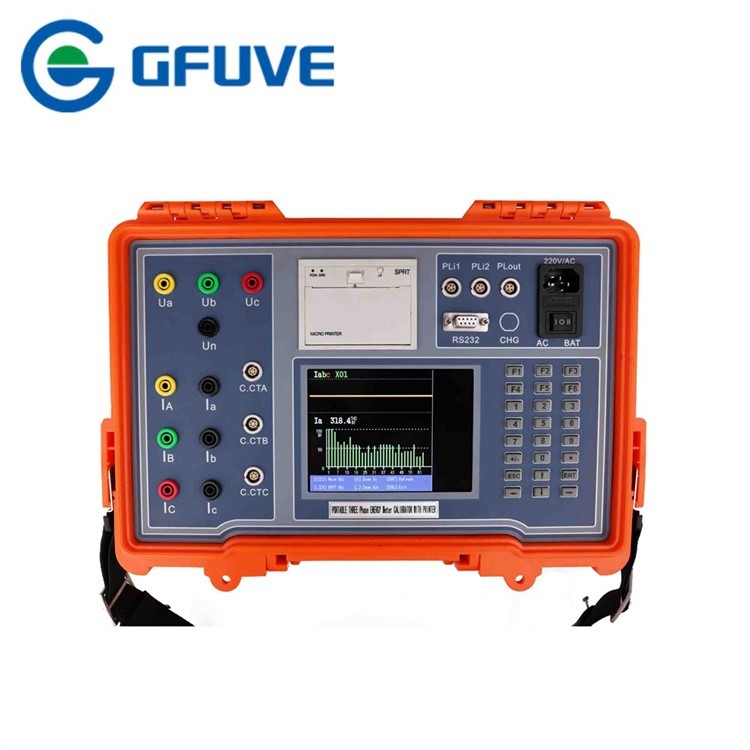

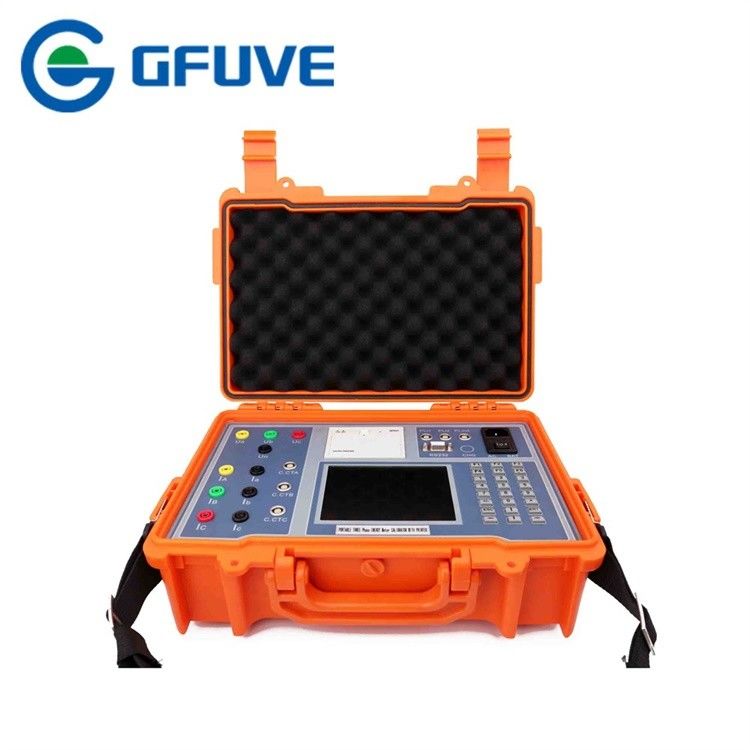

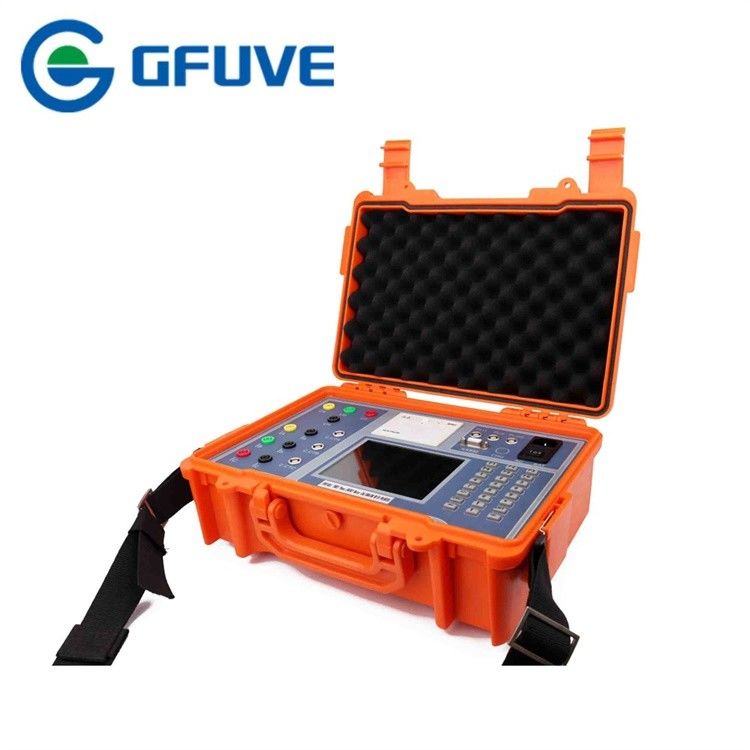

GF312B Onsite portable energy meter calibrator standard reference meter with current clamp





GF312B portable three phase watt meter calibrator with printer is used to calibrate three phase, single phase, active and reactive watt meters. And it also can be used as voltage, current and power meter to measure AC parameters of three phase power line.It can measure wave distortion factor and 2nd to 63th harmonic wave.



Multi Functional Electrical Calibration Equipment 0.05%RG Adjustment Fineness. Calibration Of Three Phase Energy Meter. Programmable Calibration Of Three Phase Energy Meter Standard Power Source. 3 Phase AC Current Calibrator / Kwh Meter Multi Tester Calibration Device. High Precision Calibration Of Three Phase Energy Meter With LED Display





Features

  • Three phase active or reactive electricity energy meter
  • Calibrate three phase, single phase, active or reactive meter error
  • Measure U(voltage) of three phase or single phase
  • 4Measure I(current) of three phase or single phase
  • Measure active power of three phase or single phase
  • Measure reactive power of three phase or single phase
  • Measure apparent power of three phase or single phase
  • Measure power factor of three phase or single phase
  • Measure phase angle between voltage and current
  • Measure frequency of power line
  • Display vector diagram
  • Display waveform of U and I
  • Analyze and display content of harmonic of U and I
  • Store and check measured data

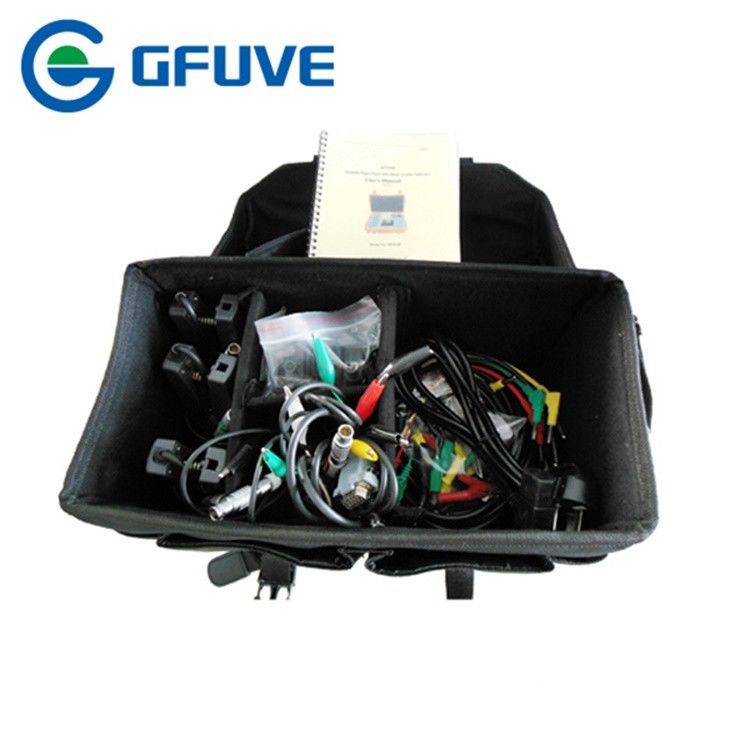

  • Optional 5A, 20A, 100A, 500A, 1000A, 2000A, 3000A current clamp
  • Measure CT variable ratio
  • Print the data of measurement on site



Parameters



Electrical parameters　
Accuracy 0.05%, 0.1%, 0.2%
Power supply 220V ± 10% or 110V ± 10%, 50/60Hz ± 2Hz
Test Voltage　
Range 0V-600V
Error ±0.05% (30V-600V)
±0.1% (5V-30V)
Harmonic 2nd-63st
Test Current　
Range (direct connection) 20mA-20A
Error (direct connection) ±0.05% (100mA-20A)
±0.1% (20mA-100mA)
Range (Clamp CT) 10mA-3000A
Error (Clamp CT) ±0.2% (100mA-3000A)
±0.5% (10mA-100mA)
Harmonic 2nd-63st
Power measure error　
Active power (direct connection) ±0.05% (0.1A-20A)
±0.1% (0.02A-0.1A)
Reactive power (direct connection) ±0.1% (0.1A-20A)
Energy measure error　
Active energy (direct connection) ±0.05% (0.1A-20A)
±0.1% (0.02A-0.1A)
Reactive energy (direct connection) ±0.1% (0.1A-20A)
Phase angle　
Range 0° ~ 360°
Resolution 0.01°
Error ±0.05°
Frequency　
Range 45Hz-65Hz
Resolution 0.001Hz
Accuracy 0.005Hz
Power factor　
Range -1 ~ 0 ~ 1
Resolution 0.0001
Error 0. 0005
Pulse output 　
Energy constant 180000imp/kWh, 1800imp/kWh, 18imp/kWh
Pulse ratio 1:1
Output level 5V
Pulse input　
Input channel 1
Input level 5-24V
Input frequency Max. 2MHz
Display　
Resolution 6”TFT (640×480)
Function　
Vector diagram Yes
Waveform Yes
Energy accumulation Yes
Communication port RS232
Communication with PC Yes
Mechanical parameters　
Dimensions (W×H×D) (mm) 390×200×160
Host Weight (mm) 3
Weight (including Accessories 3pcs 100A clamp CT) (kg) 12
Environmental conditions　
Ambient temperature -10°C to 40°C
Relative humidity 30%-85%






Onsite Portable Test Meter Calibration Standard Reference Meter With Current Clamp 0
