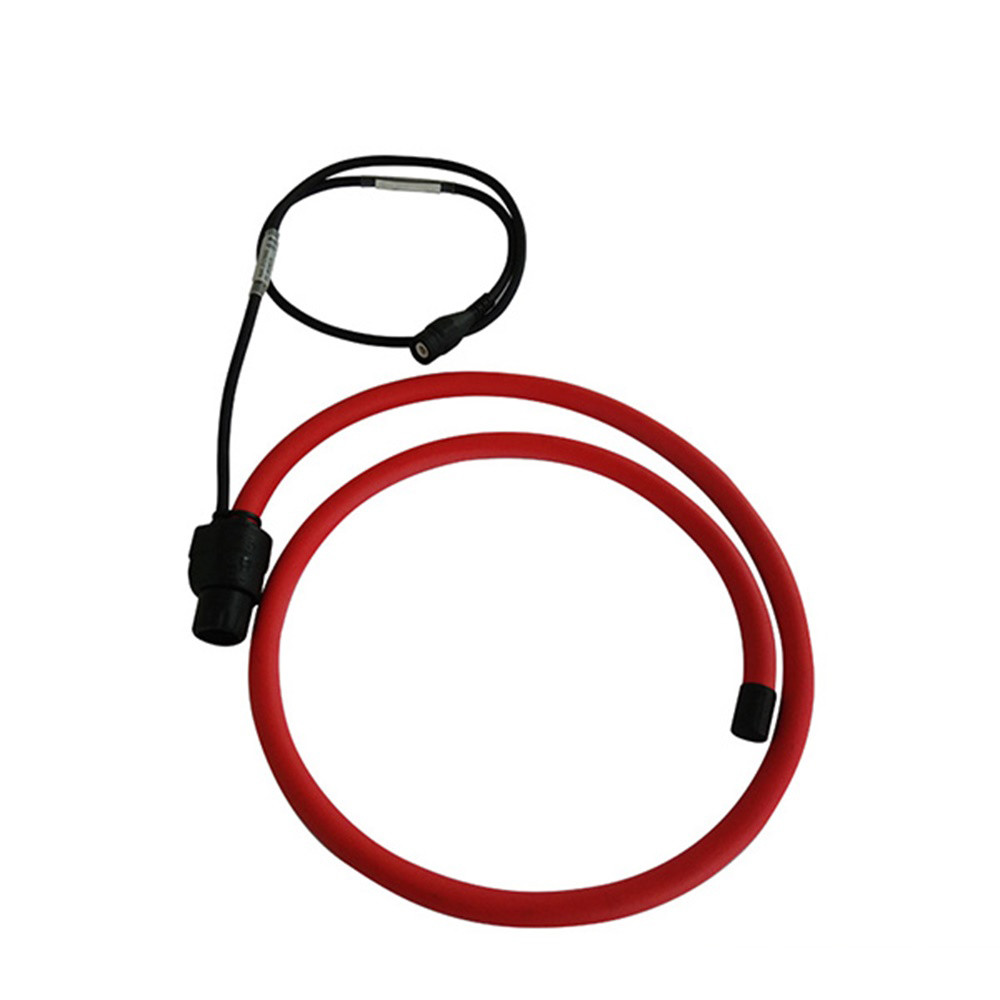

Rogowski Coil Flexible Current Clamp 6000A AC Clamp -20 - 70 ° C Operating Temp

Basic Information

Place of Origin:	China
Brand Name:	GFUVE
Certification:	CE UL
Model Number:	FQ-RCT02 - 1

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Standard export wooden box
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	5000 pieces per month

Get Best Price Contact Now

Current Range:	10A ~ 30kA	Frequency:	25Hz~20kHz
Inductive Current Clamp:	Flexible Rogowski Type	Accuracy:	< 1% @ 25°C ( 45-65Hz )
Ambient Operating Temperature:	- 20 ~ + 70 ° C	Standards Safety:	IEC 61010-1: 2001, 600 V CAT III
Highlight:	inductive amp clamp , inductive current probe

Flexible Rogowski coil 6000A AC current sensor / Inductive Current Clamp

The FQ-RCT02 FlexibleAC current sensor are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables ..

APPLICATIONS

Power quality monitoring
Power meters
Smart logger
Energy sub-meters
Distributed measurement systems

PARAMETERS

Electrical parameters
Model		FQ-RCT02-120	FQ-RCT02-190	FQ-RCT02-305	FQ-RCTA02-120	FQ-RCTA02-190	FQ-RCTA02-305
Current range		10A~30kA			10A~6000A
Frequency		25Hz~20kHz			45Hz~600Hz
Output voltage	Rated current	1000A	2000A	3000A	1000A,1500A, 2000A,3000A	2000A,3000A, 5000A,6000A	3000A,4000A, 5000A,6000A
	50Hz	100mV AC	200mV AC	300mV AC
	50Hz	100mV AC	200mV AC	300mV AC	333mV 1mV/A@1000-3000A(0.5mV/A@4000-6000A)
Max output		/			3.0V AC max
Accuracy		<1% @25°C (45-65Hz)			<1% @25°C (45-65Hz)
Phase error		<60’ @25°C (45-65Hz)			<60’ @25°C (45-65Hz)
Output sensitivity		±2% Max (No Calibration) ±0.5% @25°C (With Calibration)			1%
Linearity error		±0.2% (10%-100%I1n)			±0.2%
Position sensitivity		±2%			±2%
External influence		±2% Max			±1.5% Max
Power supply		/			10-30VDC,30mA Max.
