Six Phase Secondary Current Injection Test , Protection Relay Test Kit for Distance protection

Six Phase Secondary Current Injection Test , Protection Relay Test Kit for Distance protection
Six Phase Secondary Current Injection Test , Protection Relay Test Kit for Distance protection
Six Phase Secondary Current Injection Test , Protection Relay Test Kit for Distance protection Six Phase Secondary Current Injection Test , Protection Relay Test Kit for Distance protection Six Phase Secondary Current Injection Test , Protection Relay Test Kit for Distance protection Six Phase Secondary Current Injection Test , Protection Relay Test Kit for Distance protection Six Phase Secondary Current Injection Test , Protection Relay Test Kit for Distance protection Six Phase Secondary Current Injection Test , Protection Relay Test Kit for Distance protection Six Phase Secondary Current Injection Test , Protection Relay Test Kit for Distance protection
Basic Information
Place of Origin: China
Brand Name: GFUVE
Certification: ISO
Model Number: TEST-630
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Box
Delivery Time: 3 - 7 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100 Sets Per Month
Get Best Price Contact Now
Allowable Range: AC220V±10% Or AC110V±10%, 50/60Hz±10% AC Current Output　 Phase Current Output (effective Value): 6×0-30A Or 3 × 0-60A
Maximum Output Power: 520VA/phase AC Voltage Output　 Phase Voltage Output (effective Value): 6×0-130V
DC Voltage Output　 Output Range: 0-300V Or 6×0-±130V DC Current Output　 Output Range: -10-10A Or 6×0-±10A
Highlight:

secondary injection test kit

,

protection relay testing equipment



Six Phase High Performance Protection Relay Test Kit







Test-630 is a six phase current output and six phase voltage output protection relay tester with 5.Eight pairs of binary input and four pairs of binary output.

The multiple protection function of today’s protection relay systems requires a new level of sophisticated test hardware and software to completely analyse the operation of the unit in a real life situation. Every facet of relay testing can be handled with the comprehensive line of relay test equipment from GFUVE.
Small as it is, Super-function protection relay test set is capable of dealing with all types of tasks which used to be conducted by heavy conventional relay test kit. In that sense, GFUVE’s portable and comprehensive TEST-630 can live up to its reputation as a colossus.



Parameters



Electrical parameters 　
Allowable range AC220V±10% or AC110V±10%, 50/60Hz±10%
Time measurement 0.1ms-999999.999s
AC current output 　
Phase current output (effective value) 6×0-30A or 3 × 0-60A
Maximum output power 520VA/phase
Maximum parallel current output (effective value) 0-180A
Long-term allowable working value of phase current (effective value) >10A
Allowable working time of maximum current >11s
Accuracy <±0.2%
AC voltage output 　
Phase voltage output (effective value) 6×0-130V
Line voltage output (effective value) 0-260V
Maximum output power 70VA/phase
Accuracy <±0.2%
DC voltage output 　
Output range 0-300V or 6×0-±130V
Maximum output power 130VA
Accuracy <±0.2%
DC current output 　
Output range -10-10A or 6×0-±10A
Maximum output power 150VA
Accuracy <±0.2%
Binary input 　
Idle contact 1-20mA, 24V (DC)
Electric potential contact 0-250V (DC)
Binary output 　
Idle contact 250V/0.5A (DC)
Rated output 　
Frequency error <±0.01HzHz
Phase error <±0. 2°
Waveform distortion <±0.3% (fundamental wave)
Time error <40µs
Output frequency 0-1050Hz
Superposed harmonic wave 0-21times
Time measurement 　
Test range 0.1ms-999999.999s
Mechanical parameters 　
Dimensions (L×W×H) (mm) 360×195×365
Weight (kg) 16.6
Environmental conditions 　
Use range 0°C to 45°C
Storage range -25°C to 70°C



Test Item



1 . U/I Test
2 . DC Test
3 . Impedance Characteristics
4 . Power Direction Test
5 . I-T Test
6 . Differential Relay
7 . Harmonic Test
8 . Differential Protection
9 . Distance Protection
10 . Zero Sequence Protection
11 . Setting Group Test
12 . State Sequence
13 . Synchronization Test
14 . Special Test
15 . Oscillation Test
15 . Metering Instrument
16 . Hardware Checkout
17 . Low Voltage Protection

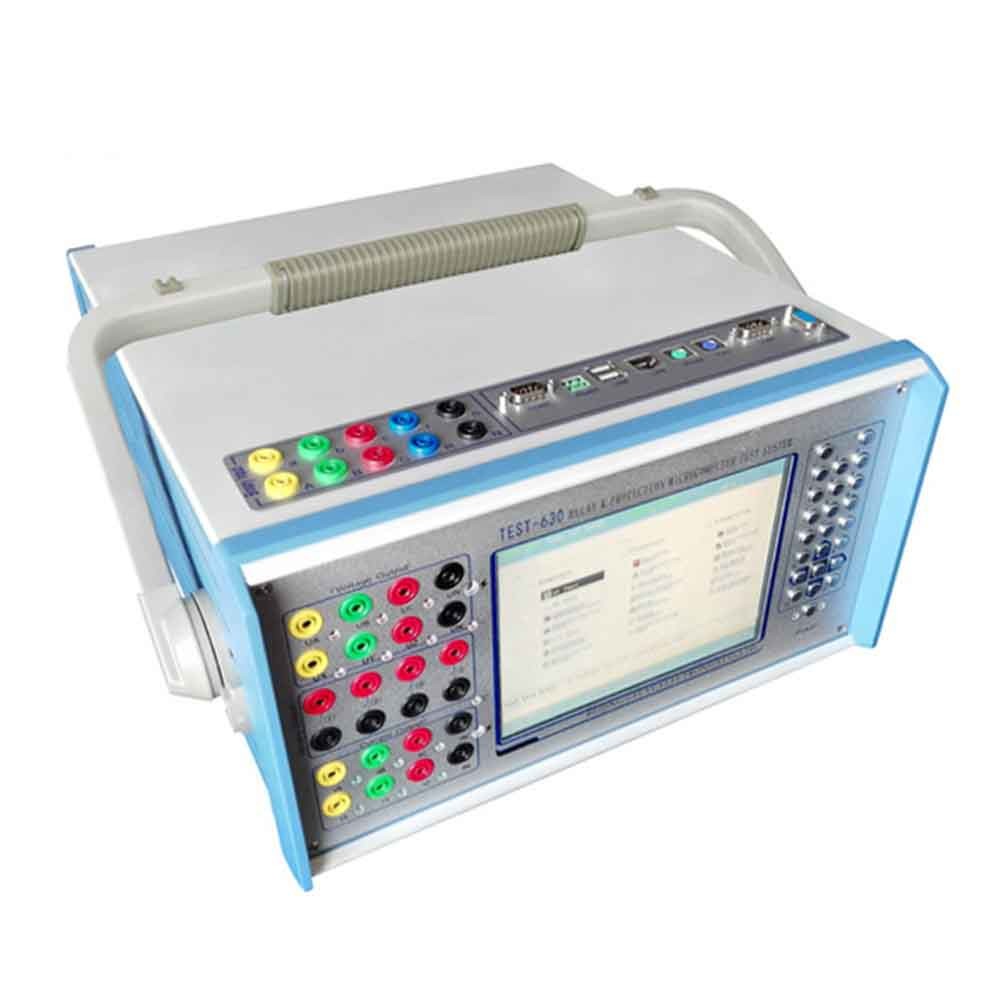

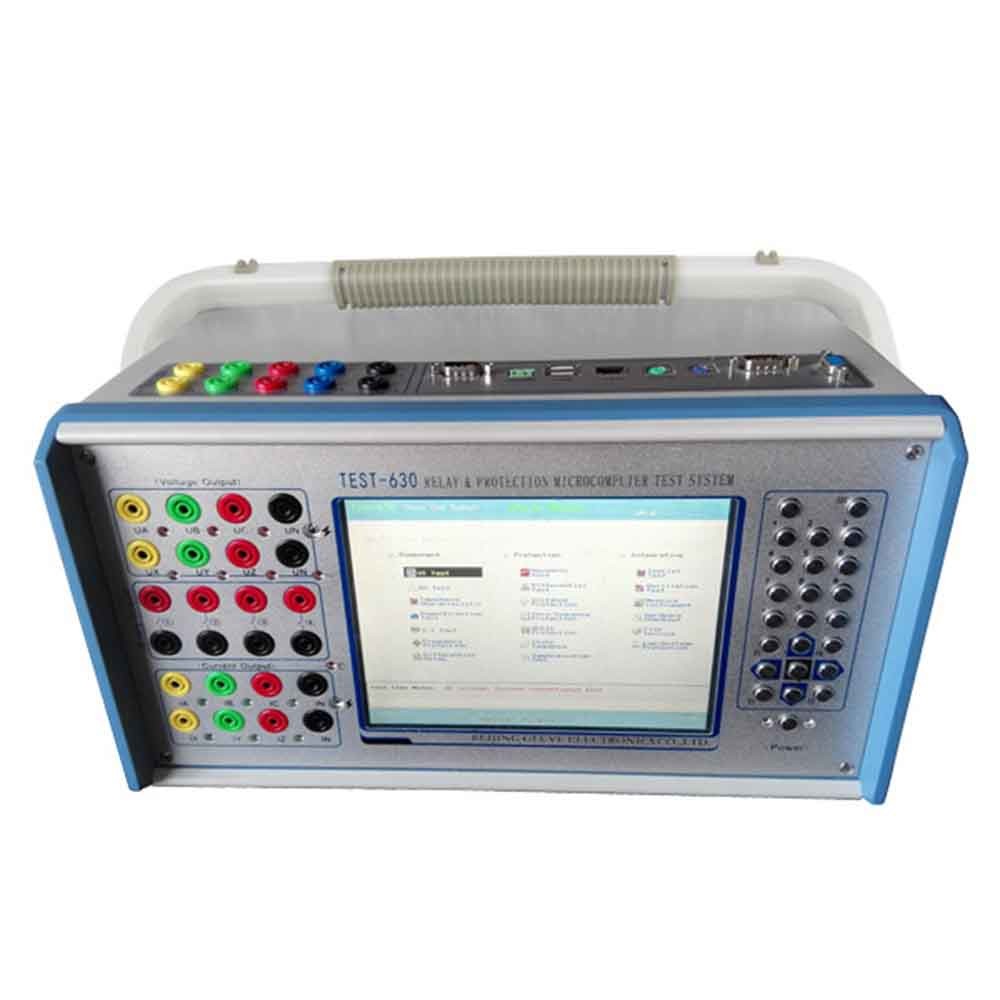

The Product picture:



Six Phase Secondary Current Injection Test , Protection Relay Test Kit for Distance protection 0
