Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core

Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core
Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core
Basic Information
Place of Origin: China
Brand Name: GFUVE
Certification: CE UL
Model Number: P8-2
Minimum Order Quantity: 3
Price: Negotiable
Packaging Details: Export Carton Box
Delivery Time: Within 7 Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000 pieces per month
Get Best Price Contact Now
Ratio: 2500: 1 Or Customize Accuracy: 0.2%
Over Voltage Category: CAT III 600V Output Signal (AC Current): From 0 To 10mA AC At Nominal Input Current
Output Signal (AC Voltage): From 0 To 0.5V AC At Nominal Input Current Dimensions (L X W X H) (mm): 42× 139 × 20
Material: PC+ABS+Polycarbonate, UL94 V0 Weight (g): 180
NAME: Clamp On Current Transformer 0.333V CONNECTOR: BNC OR 4MM BANANA
Highlight:

oscilloscope current probe

,

oscilloscope amp clamp

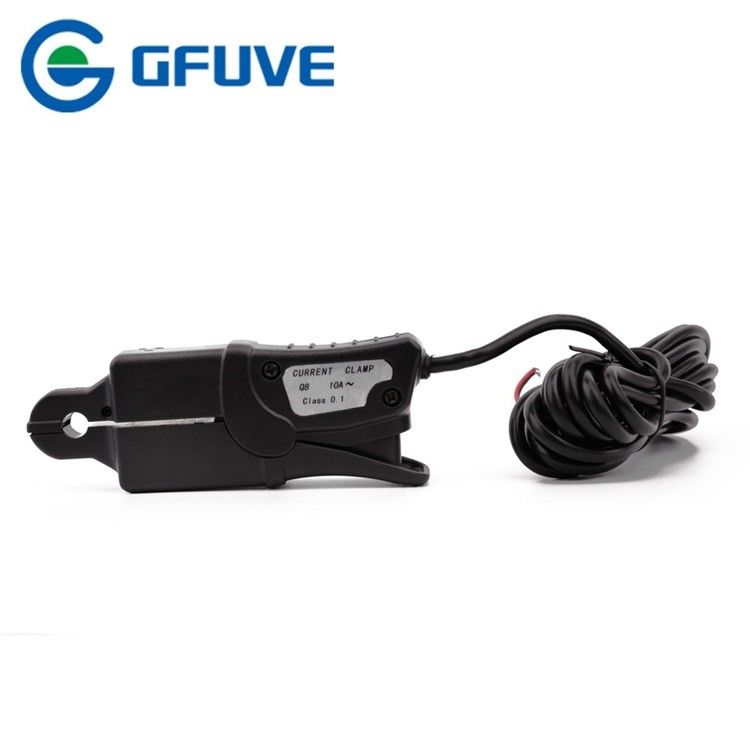

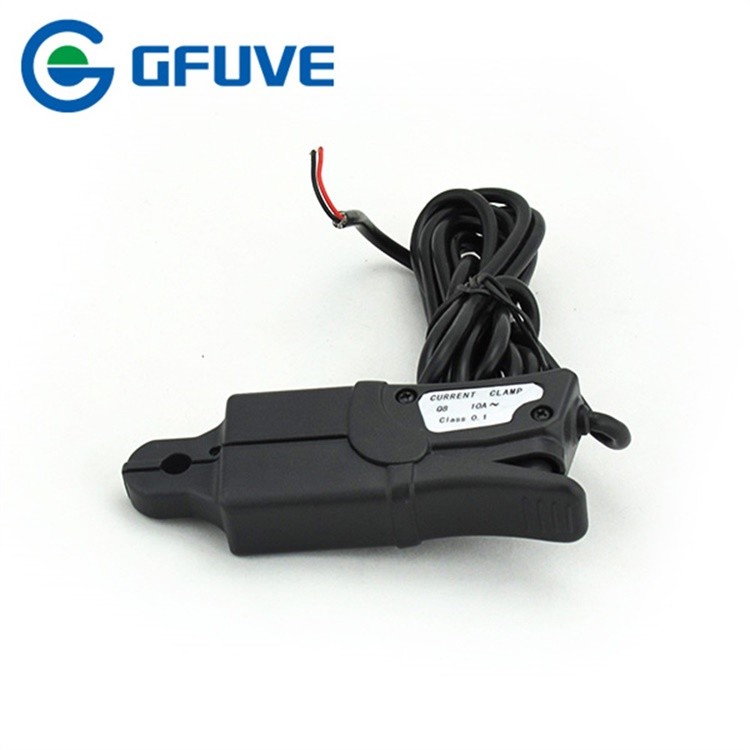

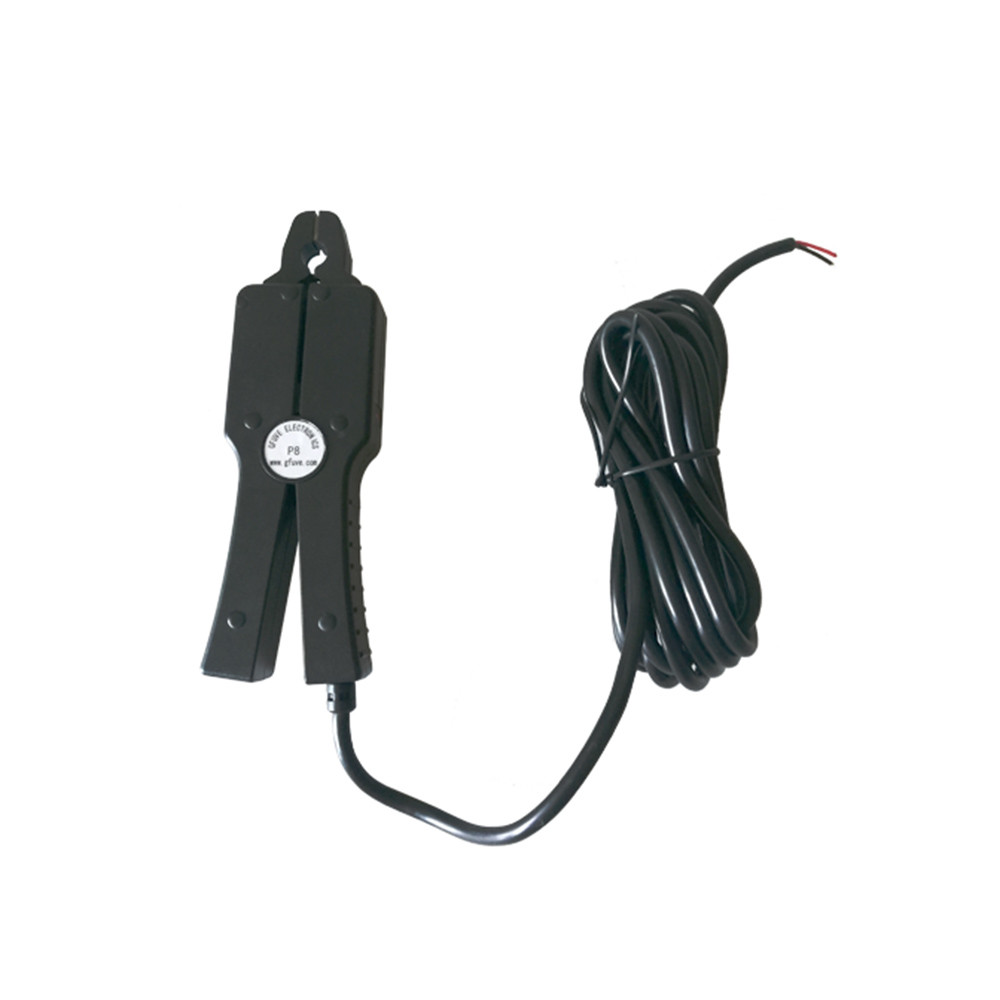

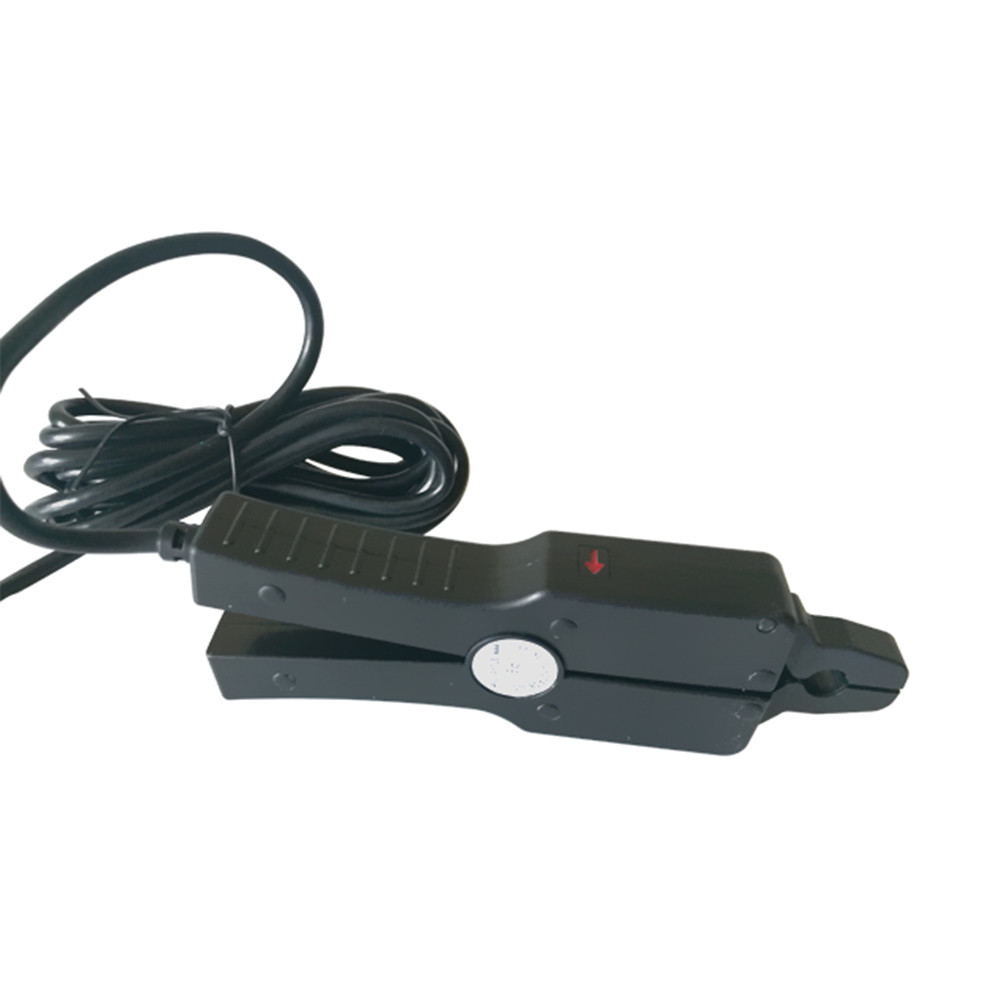

P8 Accuracy 0.2 % 5A Split Core AC Clamp On Current Transformer 0.333V for Project



The P8 current clamp ct is an affordable & durable mini current clamp ct for measurements to 10A AC. This current clamp ct uses a special magnetic core to provide higher accuracy and lower phase shift. The P8 Series AC current clamp ct is a cheap probe to be used in power and low level current measurement, measuring around cable bundles, power load monitoring, waveform analysis, energy meter calibrator, phase angle meter, ,measuring in breaker panels, HVAC and data logging/recording



Current probes are key to the successful design of electrical devices, testing instruments, and electronic parts. Probes work with testing devices are ideal for measuring currents with high accuracy making them indispensable tools for evaluating current consumption and control current. In recent years, customers are seeking current probes with high sensitivity to increase the accuracy of design and verification.GFUVE offers wide range of current sensors for its portable power analyzers. The products included in this range can be used to measure current levels from a few mA to up to several thousand amperes.



GFUVE P8 Series of Clamp-On Current Transformer's are designed for fast and easy installation. Clamp-On CT uses Permalloy Magnetic Core or Silicon Amorphous Core, with characteristics of small size. high precision, good stability and strong anti-interference ability.



Why Choose GFUVE Current Probes. The Most Comprehensive Line of Current Probes. GFUVE ® the world's largest supplier, offers current probe models capable of accurately measuring from the low µA to kA range. A wide variety of configurations and jaw sizes are available. Probe types include iron core, Hall Effect, Flux Gate, and Rogowski etc.



Clamp-On Current Transformers are the one-handed operating solution for temporary energy audits or long-term energy studies. The GFUVE 10A Clamp On Current Transformer is specifically designed to offer broad utility in a compact shape. These CTs deliver high-accuracy, high-sensitivity, versatility, and low phase shift.







Features



Measurement range of 1mA to 20A AC

Improved ergonomic design and easy operation

High content nickel metal core

Low phase shift for power measurement

Small, compact size

Jaw opening accommodates conductors up to 8mm diameter

Designed for DMMs, loggers, recorders and oscilloscopes

40Hz to 2kHz response

1mA/A AC output signals

Designed to EN 61010, 600V CAT III safety standard

UL, CE mark









Applications



Power quality measuring

Measuring around cable bundles

Power load monitoring

Waveform analysis

Energy meter calibrator

Phase angle meter

Measuring in breaker panels

HVAC

Data logging/recording







Parameter



Electrical parameters
Ratio 2500: 1, 2000:1 or 1000:1 (customized)
Accuracy class 0.2%, 0.5%
Phase shift <10'
Primary current 0 - 10A AC
Secondary current 0 - 10mA AC (customized)
Secondary voltage 0.25V, 0.5V AC
Max. Cont. Input current 20A
Load capacity ≤4Ω
Over voltage category CAT III 600V
Output signal (AC current) From 0 to 10mA AC at nominal input current
Output signal (AC voltage) From 0 to 0.5V AC at nominal input current
Frequency range 40Hz-2000Hz
Dielectric strength 3KV 50Hz/60Hz at 1minute
Temperature range -20°C to +55°C
Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 720 V
Standard EN 61010-1, EN 61010-2-032, IEC60044-1
Installation clamp type
Output mode lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm) 42× 139 × 20
Weight (g) 180
Holding wire diameter (mm) φ8
Max. jaw opening (mm) 8
Color Black
Material PC+ABS+Polycarbonate, UL94 V0



Photos

Accuracy 0.2 % 5A Clamp On Current Transformer 0.333v , Scope Current Probe Magnetic Core 0
