Intellegient CT PT Analyzer , Portable Instrument Transformer Turns Ratio Test Set Fully Automatic

Intellegient CT PT Analyzer , Portable Instrument Transformer Turns Ratio Test Set Fully Automatic
Intellegient CT PT Analyzer , Portable Instrument Transformer Turns Ratio Test Set Fully Automatic Intellegient CT PT Analyzer , Portable Instrument Transformer Turns Ratio Test Set Fully Automatic Intellegient CT PT Analyzer , Portable Instrument Transformer Turns Ratio Test Set Fully Automatic
Basic Information
Place of Origin: CHINA
Brand Name: GFUVE
Certification: CE ISO
Model Number: GF106R
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Aul-Bpx
Delivery Time: 3-4 Weeks
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 200 Sets/Month
Get Best Price Contact Now
Name: CT PT Analyzer Accuracy: 0.05%
Power Supply: AC 220V±10% Or AC 120V±10%, 50/60Hz Voltage Range: 0-100Vrms
Resolution: 0.1V Current Range: 0-500mA
Overall Dimension (L X W X H) (mm): 280 X 246 X 158 Weight (kg): ≤5
Highlight:

circuit breaker analyzer

,

power transformer testing equipment

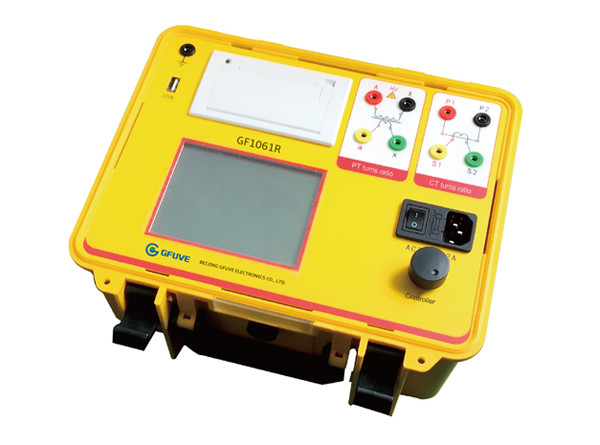

              INSTRUMENT TRANSFORMER CT PT ANALYZER TURNS RATIO TEST SET

GF1061R portable instrument transformer turns ratio test set is mainly used for field or lab testing of current transformers and voltage transformers, it can fully automatic test CT and PT turns ratio. Adopt 7 inch touch TFT LCD, self-equipped mini type printer supporting field printing; supporting to use USB flash disk to dump data. Test quickly, operation simply



PARAMETERS



Environmental conditions
Accuracy 0.05%
Power supply AC 220V±10% or AC 120V±10%, 50/60Hz
Voltage Range 0-100Vrms
Resolution 0.1V
Current Range 0-500mA
Current accuracy ±1mA, ±0.05% of reading ±1 digit
CT PT Turns ratio CT 0.8-50000; PT 0.8-10000
CT PT turns ratio Accuracy ±0.05%
Phase angle measurement 0-90°
Standards
Reference standards GB1207-2006, GB1208-2006, GB16847-1997
IEC60044-1, IEC60044-6, IEC61869-2, ANSI/IEEE C57.13
Safety standards GB 4793.1-2007
EMC EMC standard 89/336/EEC
FCC Subpart B of Part 15 Class A
IEC 1000-4-2/3/4/6
Reference standards
Overall dimension (L x W x H) (mm) 280 x 246 x 158
Weight (kg) ≤5
Environmental conditions
Relative humidity Relative humidity 5%-95% not condensing
Operating temperature -10°C to +50°C
Storage temperature -20°C to +70°C
Altitude ≤2000m
