Electrical Universal 10A Oscilloscope Clamp On Current Transformer High Frequency 2M HZ CAT III 600V

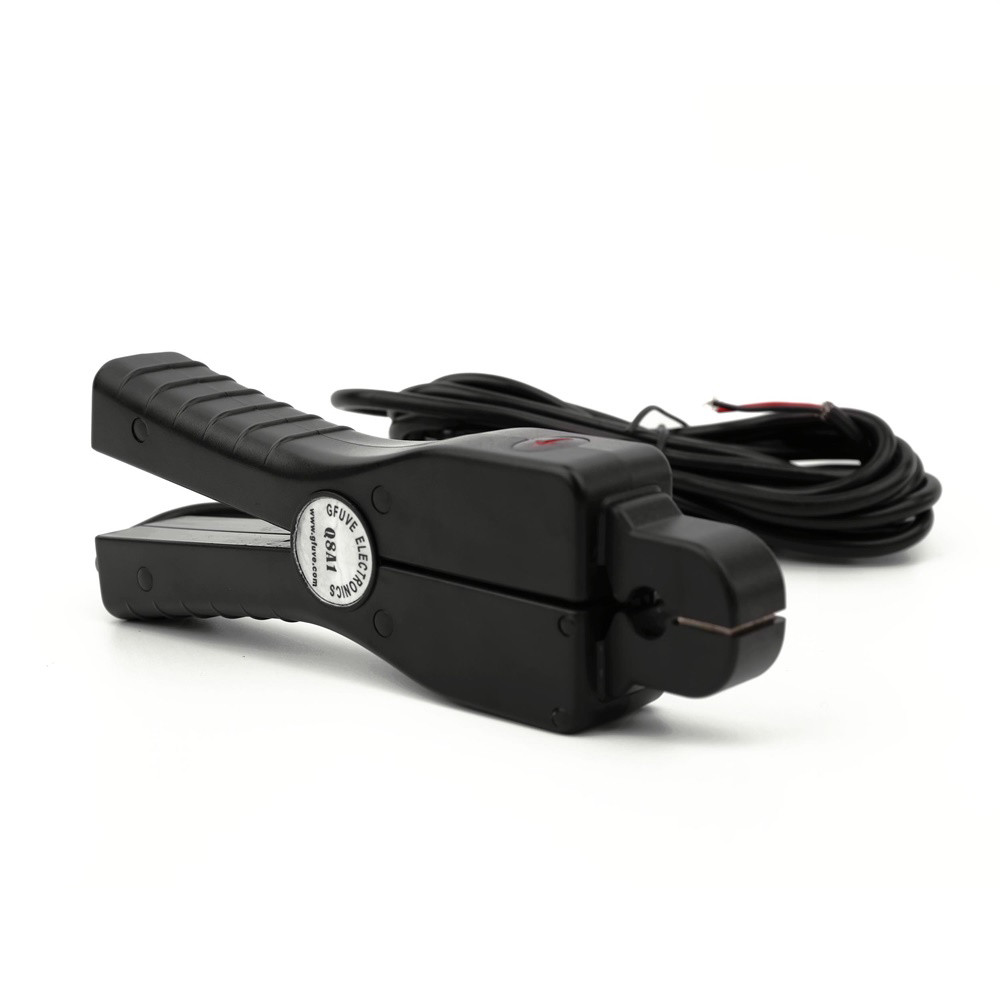

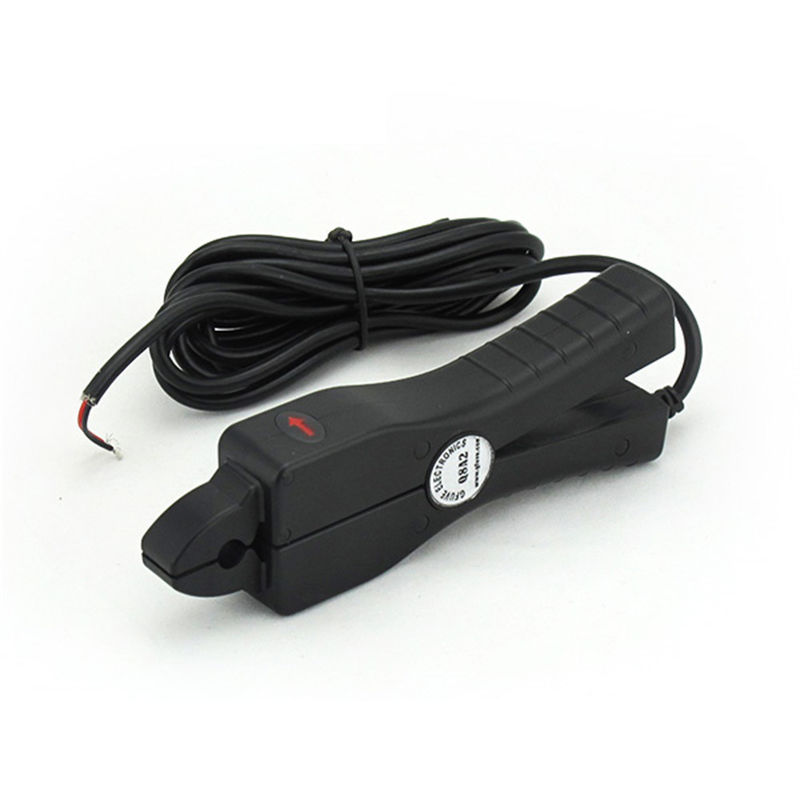

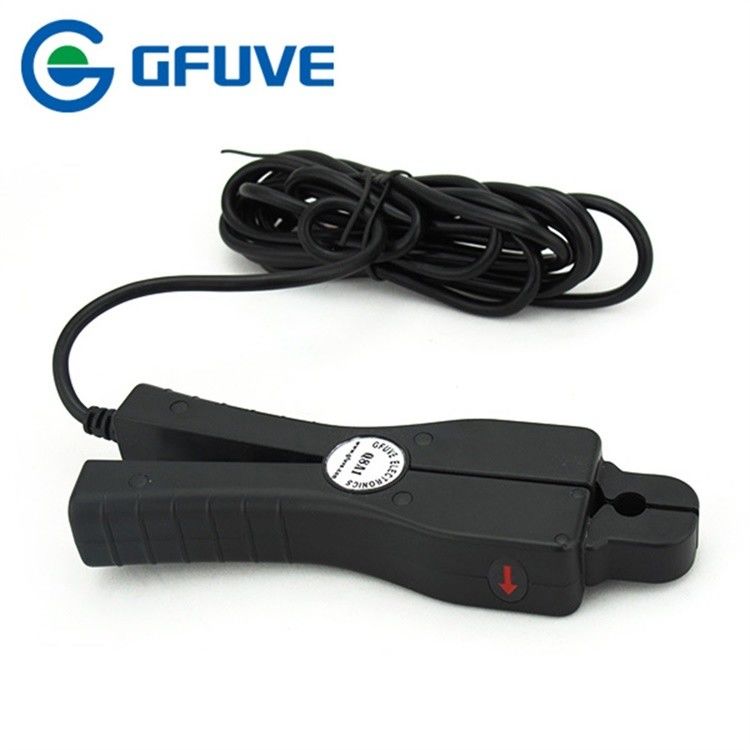

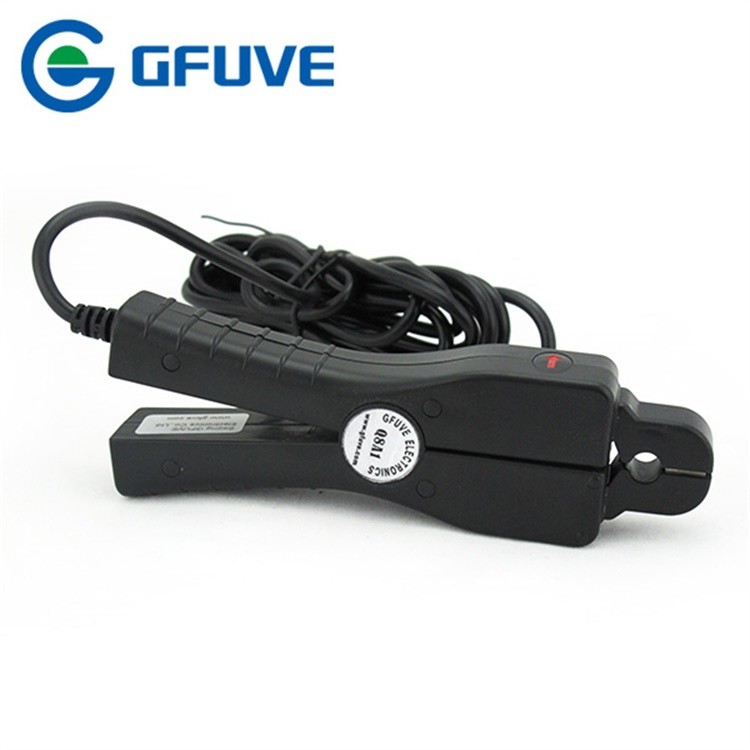

Q8A1 Electrical Universal 10A Oscilloscope Clamp On Current Transformer High Frequency 2M HZ CAT III 600V

The model Q8A1 current probe is based on AC transformer technology for use in measurement of AC current, it is suitable for 5A, 10A cable online measurement.

Probes work with testing devices are ideal for measuring currents with high accuracy making them indispensable tools for evaluating current consumption and control current. In recent years, customers are seeking current probes with high sensitivity to increase the accuracy of design and verification.GFUVE offers wide range of current sensors for its portable power analyzers. The products included in this range can be used to measure current levels from a few mA to up to several thousand amperes.

GFUVE Current transformer clamp meters are equipped with rigid jaws of made of ferrite iron. The jaws are individually wrapped by coils of copper wire. Together, they form a magnetic core during measurements. Their basic operation is like that of a transformer. It works with one primary turn, or winding, which in nearly all cases is the conductor .

The GFUVE clamp-on current transformer is very popular with our customers due to its fast and easy installation Produced with amorphous silicon core or permalloy core, this product features small size, high precision good stability and good anti-interference This product is widely used for measuring power and energy in the fields of electric power, communication and monitoring system. Besides the high precision and the small phase error this clamp-on current transformer can be used to measure a wide variety of electric parameters without disconnecting the exiting electric system

Features

1. Suitable for 5A, 10A cable online measurement

2. Holding wire diameter: φ8mm

3. Dimension: 42.6mm × 122.5mm × 23mm

4. Load capacity: ≤4Ω

5. Installation: clamp type

6. Output mode: lead output

Parameter
