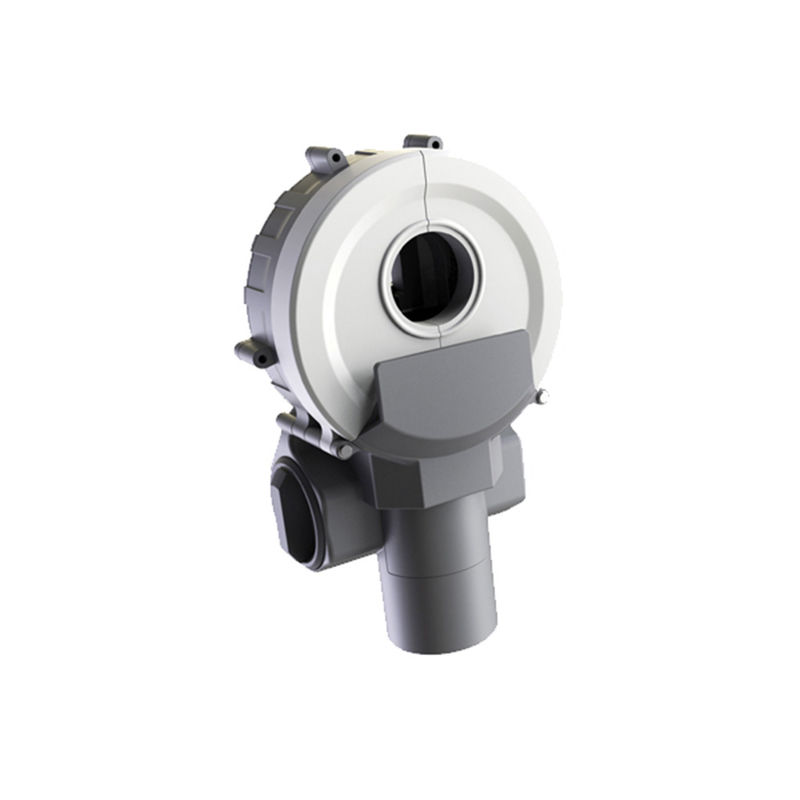

ABS PC Housing Wireless Current Transducer Primary Amp Recorder Meter 25mm Jaw

ABS PC Housing Wireless Current Transducer Primary Amp Recorder Meter 25mm Jaw
ABS PC Housing Wireless Current Transducer Primary Amp Recorder Meter 25mm Jaw ABS PC Housing Wireless Current Transducer Primary Amp Recorder Meter 25mm Jaw ABS PC Housing Wireless Current Transducer Primary Amp Recorder Meter 25mm Jaw ABS PC Housing Wireless Current Transducer Primary Amp Recorder Meter 25mm Jaw ABS PC Housing Wireless Current Transducer Primary Amp Recorder Meter 25mm Jaw ABS PC Housing Wireless Current Transducer Primary Amp Recorder Meter 25mm Jaw
Basic Information
Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: CE, ISO9001
Model Number: GF2015
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Standard Export Box
Delivery Time: 3days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000SET/MONTH
Get Best Price Contact Now
Name: Ammeter Recorder Application: 69kV,35kV,20KV, 10kV, 6kV
Color: Gray Communication: RF433
Measurement Rnage: 1 To 100A, 1 To 300A, 1 To 600A, 1 To 1000A, 1 To 2000A Accuracy Class: ±1% Of Reading Plus 2 Counts
Recording Interval: 1S-3600S Jaw: 25mm
Basic Parameters　 Recording Ammeter Kit 3 Wireless Current Sensors (GF2015A, GF2015B, GF2015C) 433 H: 18x9.5x4.62 Weight: 0.58KG
Highlight:

wireless current sensor

,

wireless current transducer



Ammeter Recorder WIRELESS PRIMARY CURRENT RECORDER METER For Mid Voltage



FEATURES

  • The Primary current recorder uses the same sensor technology as the original Rogowski Coil. The True RMS inductive sensor does not use magnetic materials. The opening of the sensor is electronically closed and external currents are electronically rejected.

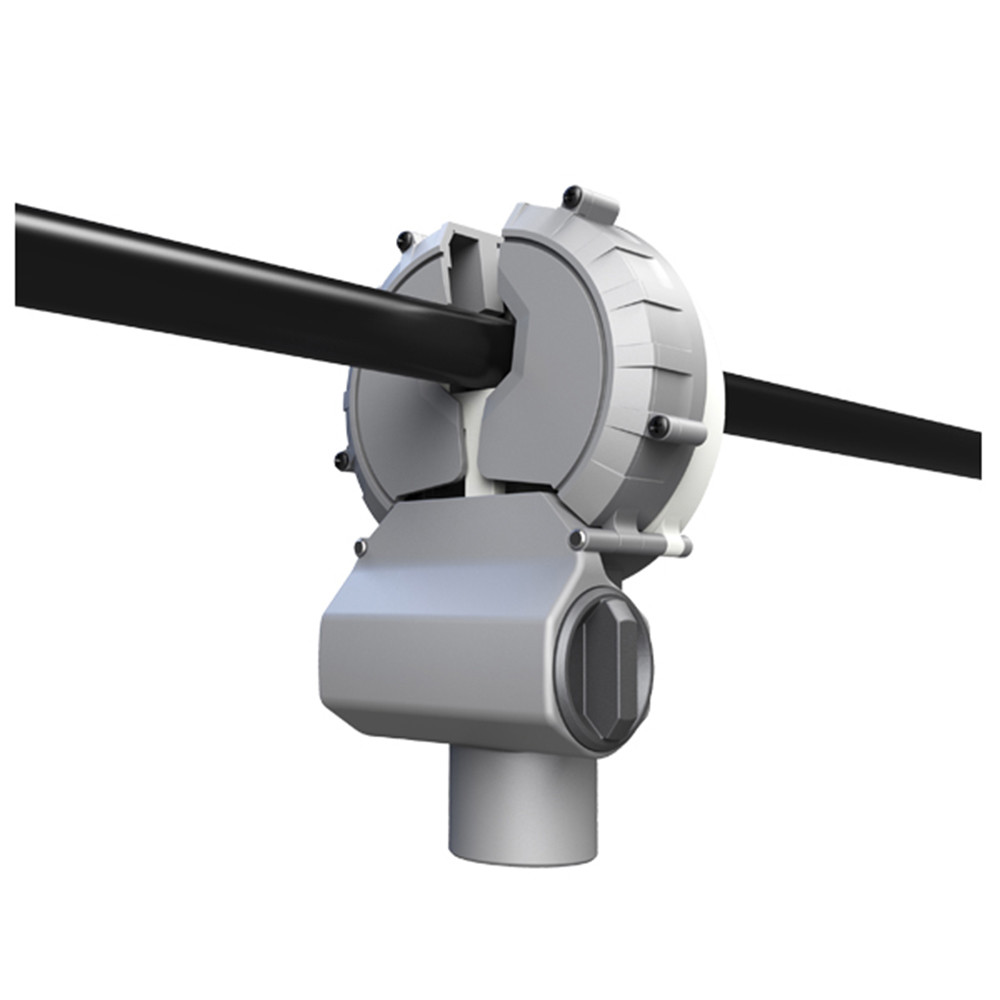

  • The accuracy, external current reject, and range of currents measured by the patented amp sensor substantially exceed the performance of the best clamp-on sensors. The key feature of the unit is the ability to leave it deployed on the line to record readings every 15 minutes for 90+ days. It easily attaches to the line with a standard insulating bar. Once on the line, it immediate begins to collect and record the primary current on the line.
  • The Primary current recorder is equipped with a 433M wireless port for communicating the recorded data into the user’s PC. The data is downloaded through GF2015S PC-Link Software, which allows the user to download, view and query the data stored on the Primary current recorder.
  • The housing of the Primary current recorder is made of ABS+PC and is built to operate safely, even in severe utility environments. It is resistant to shock, repels water and is unsusceptible to flame. It also operates within a wide temperature range. The Primary current recorder has the screw insulation bar of installation, which allows it to hang on the line securely in all weather conditions.
  • PC-Link Software is a user-friendly software interface that allows the user to download, view, graph and export data from the Primary current recorder into Microsoft Excel. The data directly transfers from the Primary current recorder into Excel through a 433M Port.



AMP RECORDER

  • Collect and analyze load profiles
  • Easily clamps to the line in seconds
  • Check for load balance
  • Patented open CT sensor with ±1% accuracy
  • 433M communication with no annoying cables to connect
  • Recorded data quickly downloads into the user's PC
  • PC-Link Software interface downloads directly into Microsoft Excel
  • Generate reports and create graphs for profile analysis

PARAMETERS

Basic parameters　
Recording ammeter kit 3 wireless current sensors (GF2015A, GF2015B, GF2015C)
433 HHT(handheld terminal) or 433M wireless data reader(GF2015R)
PC-LinkSoftware software(GF2015S)
Carrying case
Data recording interval 5min, 10min,15min, 30min;
Interval user settable from 1-60min
Communication distance(wireless) 100m
Communication 433M, 868M or 915M (option)
Installation Installation with electricity; Disassemble with electricity
Battery 3.6 volt lithium battery,19000mAh; Battery can be replaced
Software requirements PC-Linksoftware & microsoft Excel
Processor 100 MHz or higher ( 200 MHz or higher recommended)
RAM 32 MB, 64M recommended
Drive space 15 MB to load software, 10 MB of operating Space
Use of position Outdoor or indoor
Electrical parameters　
Range of operation　
Voltage 69kV,35kV,20KV, 10kV, 6kV
Current 1 to 100A, 1 to 300A, 1 to 600A, 1 to 1000A, 1 to 2000A
Sensor opening Up to 2.5 cm
Resolution　
1 to 99.9A 0.1A
100 to 2000A 1A
Amps accuracy ±1% of reading plus 2 counts
Frequency 60Hz (57-63 Hz) or 50Hz (47-53 Hz) models available
Mechanical parameters　
Dimensions (W×D×H) (cm) 18x9.5x4.62
Weight (kg) 0.58
Environmental conditions　
Operating temp. -40°C to 60°C





ABS PC Housing Wireless Current Transducer Primary Amp Recorder Meter 25mm Jaw 0
